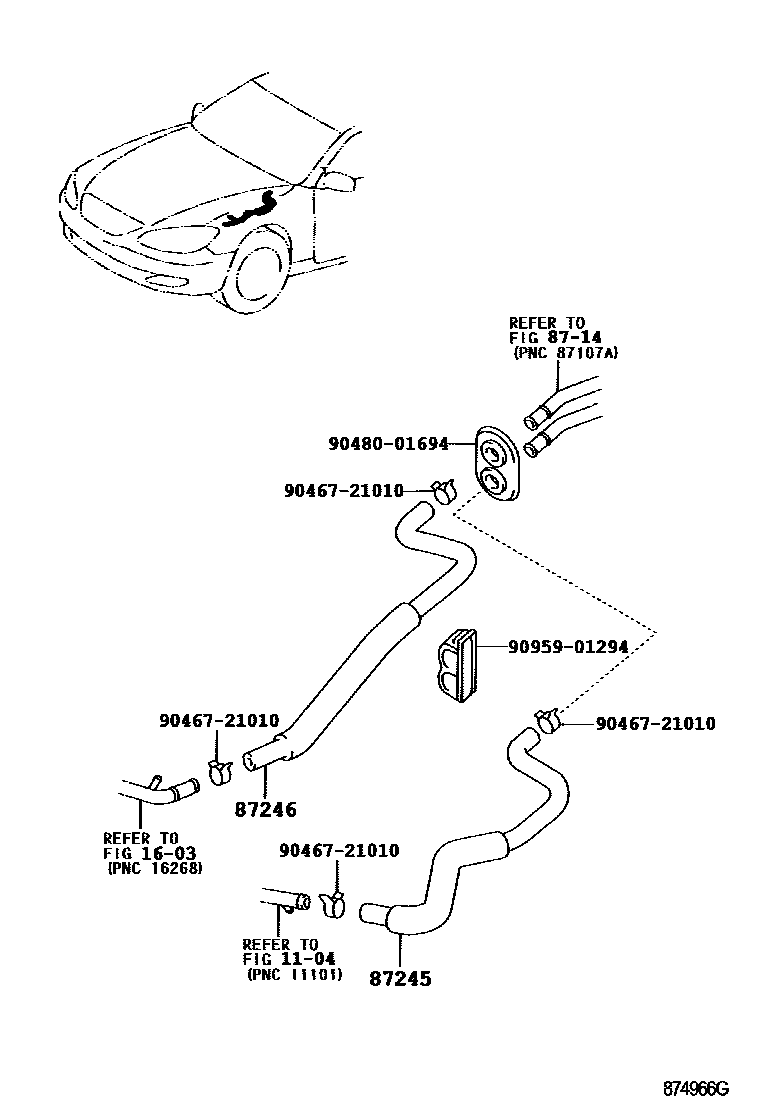

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-33410iACV30200109-200406

main87245-33430iACV35200109-200406

87246HOSE, HEATER WATER, OUTLET

main87245-33420iACV30200109-200406

main87245-33440iACV35200406

9046721010

main90467-21010

9048001694

main90480-01694

9095901294

main90959-01294

8 parts on this diagram · 1 diagram in section
