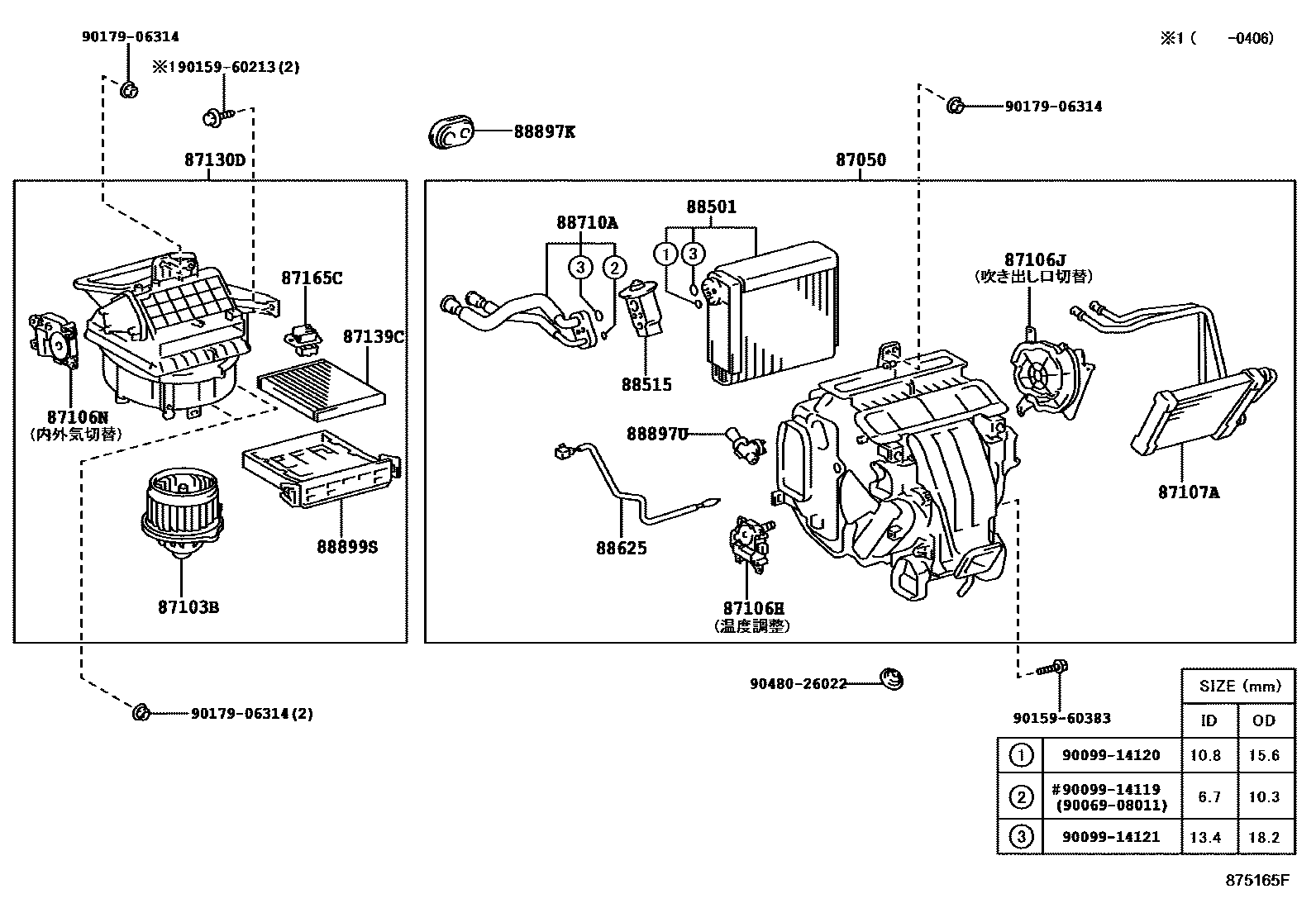

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33500iACV3#200109-200207

main87050-33501iACV3#200207-200212

main87050-33502iACV3#200212-200406

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33071iACV3#200109-200406

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-41051iACV3#200109-200406

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-33230iACV3#200109-200406

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-33200iACV3#200109-200406

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33091iACV3#200109-200406

87130DBLOWER ASSY

main87130-33180iACV3#200109-200406

87139CFILTER, CLEAN AIR

main87139-33010iACV3#200406-200601

main87139-47020iACV3#200109-200406

87165CCONTROL, BLOWER MOTOR

main87165-13010iACV3#200109-200406

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-41020iACV3#200406

88515VALVE, COOLER EXPANSION

main88515-28160iACV3#200312-200406

main88515-48040iACV3#200109-200312

88625THERMISTOR, COOLER, NO.1

main88625-17130iACV3#200109-200212

main88625-33170iACV3#200212-200406

88710ATUBE ASSY, AIR CONDITIONER

main88710-33270iACV3#200109-200406

88897KGROMMET, (FOR COOLER PIPE)

main88897-33020iACV3#200109-200406

88897UPIPE, ASPIRATOR

main88897-12210iACV3#200212-200406

88899SFRAME, FRONT COOLER

main88899-41010iACV3#200109-200406

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9015960213

main90159-60213

9015960383

main90159-60383

9017906314

main90179-06314

9048026022

main90480-26022

23 parts on this diagram · 1 diagram in section
