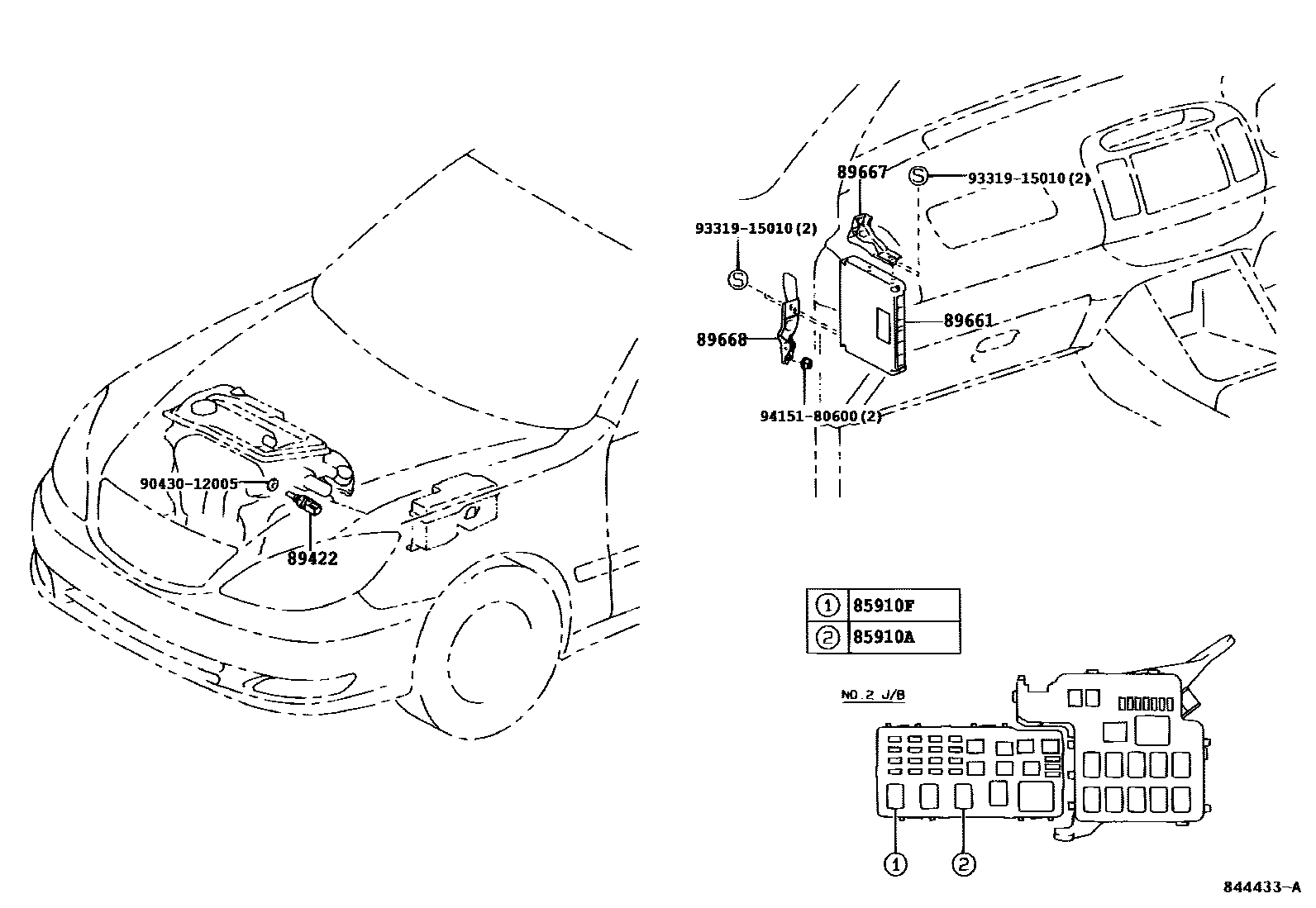

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iACV3#200109-200303

main90987-02027iACV3#200303-200406

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iACV3#200109-200303

main90987-02027iACV3#200303-200406

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010iACV3#200208-200406

main89422-16010iACV3#200109-200208

main89422-33030iACV3#200406

89661COMPUTER, ENGINE CONTROL

main89661-3T620iACV30200109-200301

main89661-3T630iACV35200406

main89661-3T800iACV30200406

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33130iACV3#200109-200406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33150iACV3#200109-200406

9043012005

main90430-12005

9331915010

main93319-15010

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
