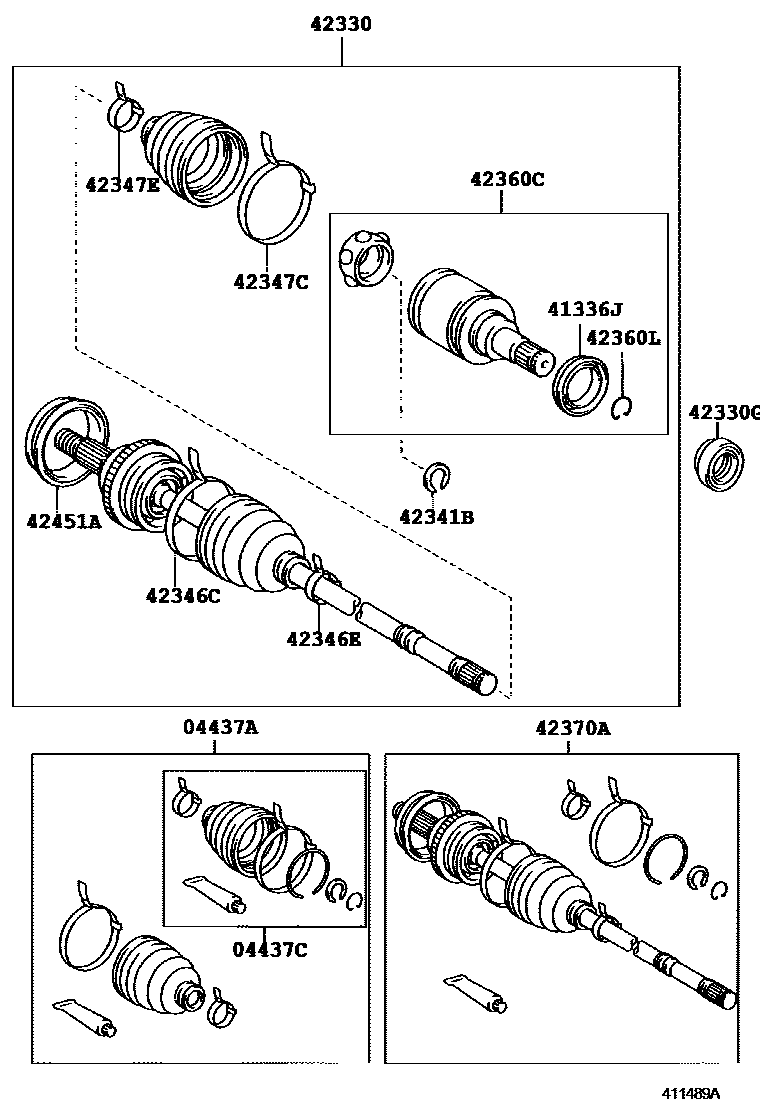

REAR AXLE SHAFT & HUB

0001 1��� 0002 1 0003 1��� 0004 1

04437ABOOT KIT, REAR DRIVE SHAFT, RH

main04429-12020iACV35200406

main04437-21022iACV35200109-200406

04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH

main04437-21012iACV35200109-200406

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-33010iACV35200109-200406

42330SHAFT ASSY, REAR DRIVE, RH

main42330-33020iACV35200109-200406

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-42033iACV35200109-200406

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main90520-21020iACV35200406

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12120iACV35200109-200406

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-12130iACV35200109-200406

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12120iACV35200109-200406

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12130iACV35200109-200406

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main42360-33010iACV35200109-200406

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-26004iACV35200109-200406

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-39165iACV35200109-200406

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main43247-12010iACV35200109-200406

14 parts on this diagram · 4 diagrams in section
