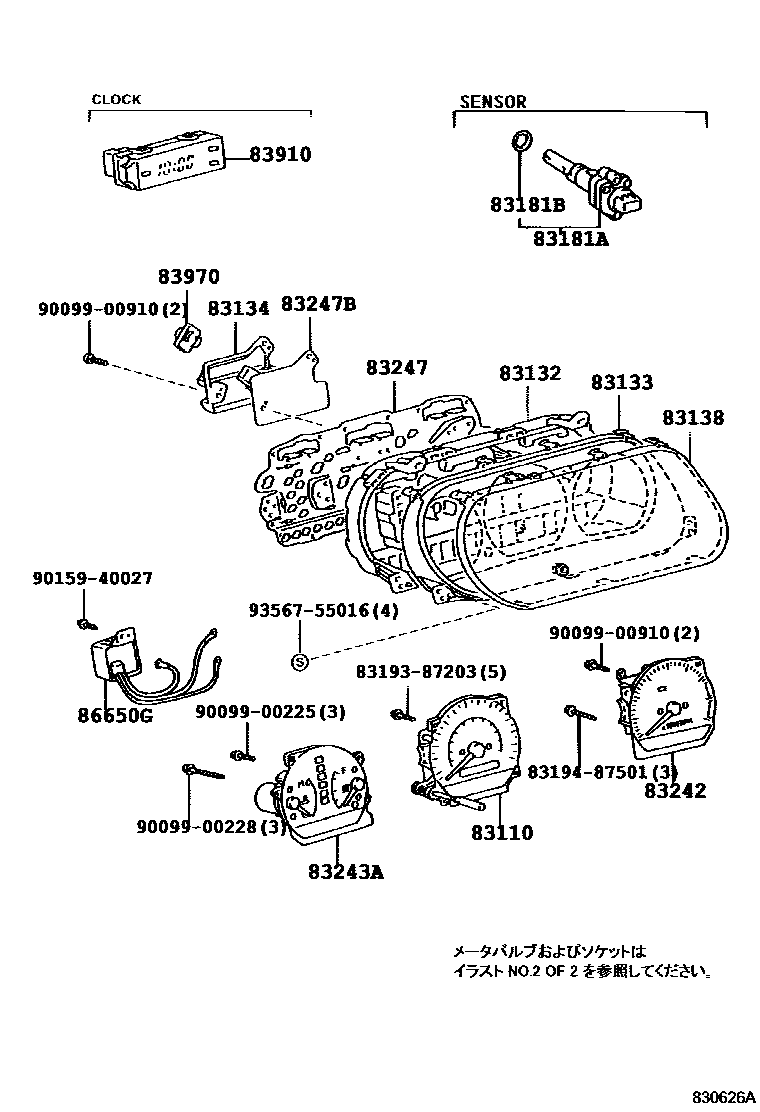

METER

0001 1������������ 0002 1������������(��������-�) 0003 1����� & ���� 0004 1����� & ����(����������)

83110SPEEDOMETER ASSY

main83220-33030iMCV2#,SXV2#199612-199908

main83220-33031iMCV2#,SXV2#199908

main83220-33040iMCV2#199612-199710

main83220-33041iMCV2#199710-199808

main83220-33042iMCV2#199808-199908

main83220-33043iMCV2#199908

main83220-33080iSXV2#199612-199710

main83220-33081iSXV2#199710-199908

main83220-33082iSXV2#199908

83132CASE, COMBINATION METER

main83841-33030iMCV2#,SXV2#199612

main83841-33150iMCV2#,SXV2#199612

83133PLATE, COMBINATION METER, NO.1

main83811-33030iMCV2#,SXV2#199612

main83811-33150iMCV2#,SXV2#199612

83134COVER, COMBINATION METER, NO.1

main83821-33150iMCV21,SXV20199612

main83821-33220iMCV25,SXV25199706

main83821-33240iMCV25,SXV25199706

83138GLASS, SPEEDOMETER

main83852-33030iMCV2#,SXV2#199612

main83852-33150iMCV2#,SXV2#199612

83181ASENSOR, SPEEDOMETER

main83181-12040iMCV21,SXV20..SED199612-199808

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iMCV21,SXV20..SED199612-199808

83242TACHOMETER ASSY, ENGINE

main83881-33090iSXV2#199612-199710

main83881-33091iSXV2#199710

main83881-33100iMCV2#199612-199710

main83881-33101iMCV2#199710

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-33090iMCV21,SXV20199612

main83882-33150iMCV21,SXV20199612

main83882-33220iMCV25,SXV25199706

main83882-33240iMCV25,SXV25199706

83247PLATE, METER CIRCUIT

main83861-33090iMCV21,SXV20199612-199710

main83861-33091iMCV21,SXV20199710

main83861-33150iMCV21,SXV20199612-199710

main83861-33151iMCV21,SXV20199710-199808

main83861-33152iMCV21199808-199908

main83861-33153iMCV21199908

main83861-33190iSXV20199908

main83861-33220iMCV25,SXV25199706-199710

main83861-33221iMCV25,SXV25199710

main83861-33240iMCV25,SXV25199706-199710

main83861-33241iMCV25,SXV25199710-199908

main83861-33250iMCV25,SXV25199908

83247BPLATE, METER CIRCUIT, NO.2

main83864-33150iSXV20;MCV21..WG; SXV25;MCV21..SED199707-199708

main83864-33180iSXV25..SED;MCV2#,SXV20199708-199908

main83864-33220iMCV25,SXV25199706-199708

main83864-33221iMCV25,SXV25199708-200109

83910CLOCK ASSY

main83910-33030iMCV2#,SXV2#199612

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iMCV2#,SXV2#199612

86650GBUZZER ASSY

main86650-30140iMCV2#,SXV2#199612

main86650-33020iMCV2#,SXV2#..WG199612-199908

main86650-33030iMCV2#,SXV2#199908

8319387203

main83193-87203

8319487501

main83194-87501

9009900225

main90099-00225

9009900228

main90099-00228

9009900910

main90099-00910

9015940027

main90159-40027

9356755016

main93567-55016

21 parts on this diagram · 4 diagrams in section
