INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

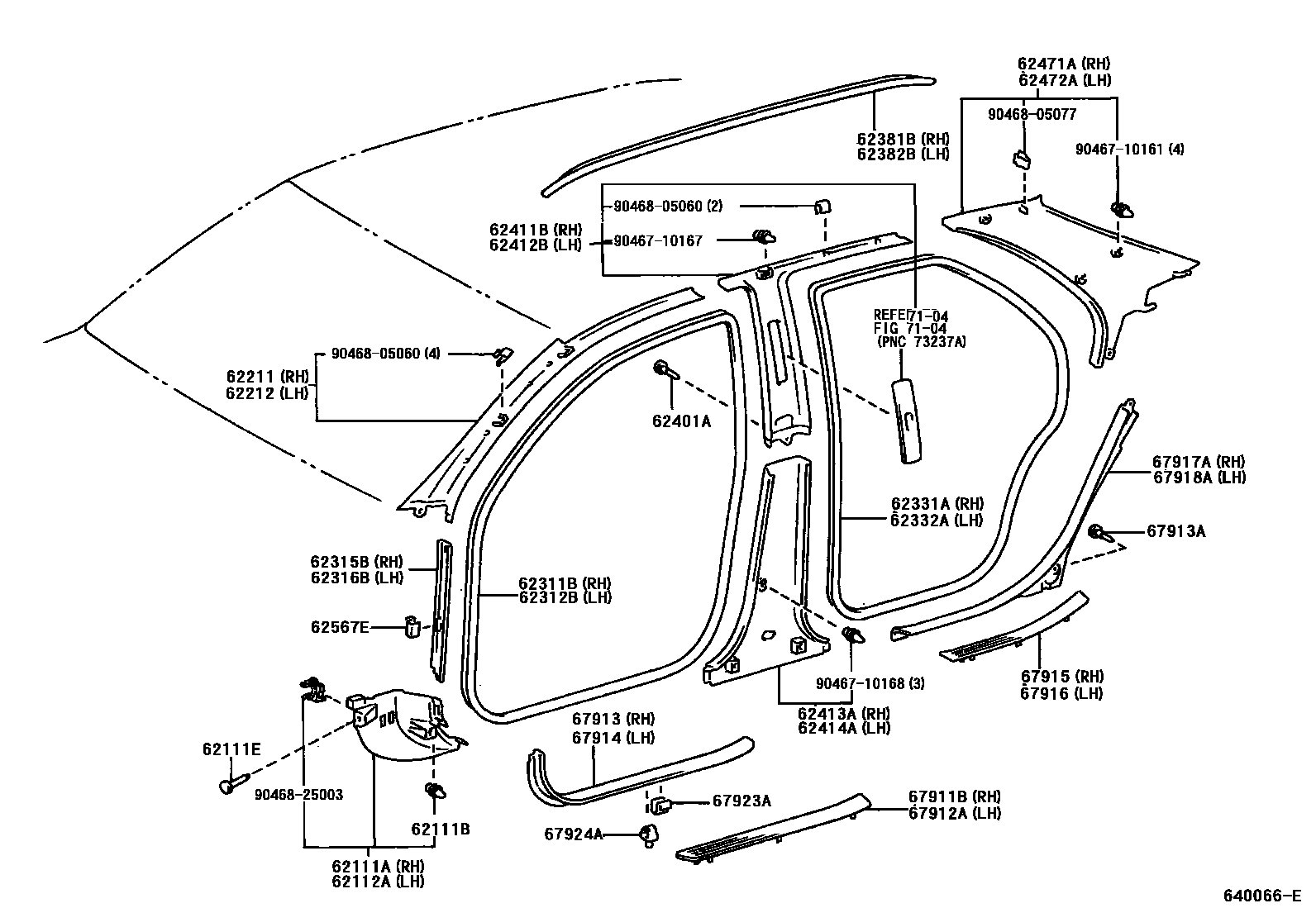

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-33050-B0i199612-199908
BLUE GRAY,TRIM1#
main62101-33050-C0i199908
BLACK,TRIM2#
main62101-33050-G0i199612
SAGE,TRIM6#
62111BCLIP(FOR COWL SIDE TRIM)
main67771-33040×2i199612-199711
main90467-11083×2i199711
62111ERETAINER, COWL SIDE TRIM
main90467-06158-C0×2i199908
BLACK,TRIM2#,6#; BLACK,TRIM6#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-33100-B0i199612-199908
BLUE GRAY,TRIM1#
main62102-33100-C0i199908
BLACK,TRIM2#
main62102-33100-G0i199612
SAGE,TRIM6#
62211GARNISH, FRONT PILLAR, RH
main62210-33040-B0i199612-199808
LIGHT GRAY,TRIM1#
main62210-33040-G0i199612-199808
SAGE,TRIM6#
main62210-33060-B0i199908
LIGHT GRAY,TRIM2#
main62210-33060-G0i199808
SAGE,TRIM6#
62212GARNISH, FRONT PILLAR, LH
main62220-33040-B0i199612-199808
LIGHT GRAY,TRIM1#
main62220-33040-G0i199612-199808
SAGE,TRIM6#
main62220-33060-B0i199808-199908
LIGHT GRAY,TRIM1#
main62220-33060-G0i199808
SAGE,TRIM6#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-33030i199612-199805
main62311-33031i199805
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-33030i199612-199805
main62312-33031i199805
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-33010-B0i199612-199908
BLUE GRAY,TRIM1#
main62315-33010-C0i199908
BLACK,TRIM2#
main62315-33010-G0i199612
SAGE,TRIM6#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-33020-B0i199612-199908
BLUE GRAY,TRIM1#
main62316-33020-C0i199908
BLACK,TRIM2#
main62316-33020-G0i199612
SAGE,TRIM6#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-33030i199612-199805
main62331-33031i199805
main62331-33050i199612-199805
main62331-33051i199805
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-33030i199612-199805
main62332-33031i199805
main62332-33050i199612-199805
main62332-33051i199805
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
main62381-33020i199612
main62381-33040i199612
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
main62382-33020i199612
main62382-33040i199612
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90167-50057×2i199808
main90467-07041-C0×2i199612-199808
BLACK,TRIM1#,6#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-33060-B0i199612-199808
LIGHT GRAY,TRIM1#
main62410-33060-G0i199612-199808
SAGE,TRIM6#
main62410-33070-B0i199908
LIGHT GRAY,TRIM2#
main62410-33070-G0i199612
SAGE,TRIM6#
main62410-33090-B0i199808-199908
LIGHT GRAY,TRIM1#
main62410-33090-G0i199808
SAGE,TRIM6#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62420-33060-B0i199612-199808
LIGHT GRAY,TRIM1#
main62420-33060-G0i199612-199808
SAGE,TRIM6#
main62420-33070-B0i199612-199908
LIGHT GRAY,TRIM1#
main62420-33070-G0i199612
SAGE,TRIM6#
main62420-33090-B0i199808-199908
LIGHT GRAY,TRIM1#
main62420-33090-G0i199808
SAGE,TRIM6#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-33030-B0i199612-199704
BLUE GRAY,TRIM1#
main62413-33030-G0i199612-199704
SAGE,TRIM6#
main62413-33031-B0i199704-199908
BLUE GRAY,TRIM1#
main62413-33031-C0i199908
BLACK,TRIM2#
main62413-33031-G0i199704
SAGE,TRIM6#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-33030-B0i199612-199704
BLUE GRAY,TRIM1#
main62414-33030-G0i199612-199704
SAGE,TRIM6#
main62414-33031-B0i199704-199908
BLUE GRAY,TRIM1#
main62414-33031-C0i199908
BLACK,TRIM2#
main62414-33031-G0i199704
SAGE,TRIM6#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-33060-B0i199612-199808
LIGHT GRAY,TRIM1#
main62470-33060-G0i199612-199808
SAGE,TRIM6#
main62470-33070-B1i199612-199908
LIGHT GRAY,TRIM1#
main62470-33070-B2i199908
LIGHT GRAY,TRIM2#
main62470-33070-G1i199612
SAGE,TRIM6#
main62470-33090-B0i199808-199908
LIGHT GRAY,TRIM1#
main62470-33090-G0i199808
SAGE,TRIM6#
62472AGARNISH, ROOF SIDE, INNER LH
main62480-33060-B0i199612-199808
LIGHT GRAY,TRIM1#
main62480-33060-G0i199612-199808
SAGE,TRIM6#
main62480-33070-B1i199612-199908
LIGHT GRAY,TRIM1#
main62480-33070-B2i199908
LIGHT GRAY,TRIM2#
main62480-33070-G1i199612
SAGE,TRIM6#
main62480-33090-B0i199808-199908
LIGHT GRAY,TRIM1#
main62480-33090-G0i199808
SAGE,TRIM6#
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62567-33010×2i199612-199710
main62567-33020×2i199710
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-33010i199612
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-33010i199612
67913PLATE, FRONT DOOR SCUFF, RH
main67913-33020-B0i199612-199908
BLUE GRAY,TRIM1#
main67913-33020-C0i199908
BLACK,TRIM2#
main67913-33020-G0i199612
SAGE,TRIM6#
67913ACLIP(FOR SCUFF PLATE)
main90467-07041-C0×4i199612-199908
BLACK,TRIM1#,6#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-33020-B0i199612-199908
BLUE GRAY,TRIM1#
main67914-33020-C0i199908
BLACK,TRIM2#
main67914-33020-G0i199612
SAGE,TRIM6#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-33010i199612
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-33010i199612
67917APLATE, REAR DOOR SCUFF, RH
main67917-33010-B0i199612-199908
BLUE GRAY,TRIM1#
main67917-33010-C0i199908
BLACK,TRIM2#
main67917-33010-G0i199612
SAGE,TRIM6#
67918APLATE, REAR DOOR SCUFF, LH
main67918-33010-B0i199612-199908
BLUE GRAY,TRIM1#
main67918-33010-C0i199908
BLACK,TRIM2#
main67918-33010-G0i199612
SAGE,TRIM6#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main62567-33010×12i199612-199710
main62567-33020×10i199710
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67924-33010×4i199612-199908
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
9046710161
main90467-10161
9046710167
main90467-10167
9046710168
main90467-10168
9046805060
main90468-05060
9046805077
main90468-05077
9046825003
main90468-25003

40 parts on this diagram · 2 diagrams in section
