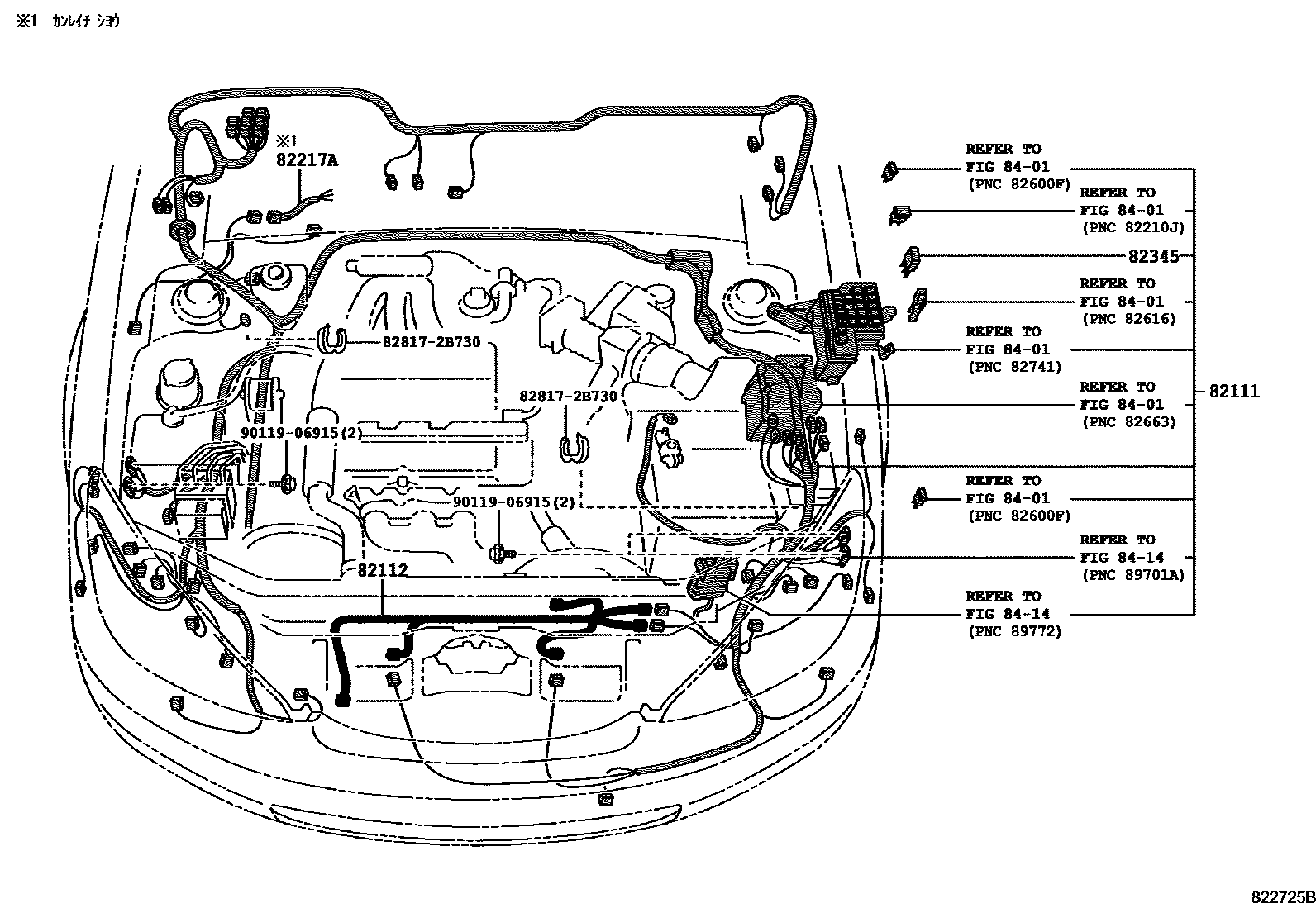

WIRING & CLAMP

0001 1������-� 0002 1����� 0003 1�������� ���� 0004 1�������� ���� 0005 1���,�-�,��� 0006 1�-� 0007 1�-� 0008 1�-�������� 0009 1����� & ������ 0010 1����

82111WIRE, ENGINE ROOM MAIN

main82111-3Y270iMCV30..30X200107-200307

main82111-3Y271iMCV30..30X200307-200406

main82111-3Y272iMCV30..30X200406

main82111-3Y280iMCV30..30G200107-200307

main82111-3Y281iMCV30..30G200307-200406

main82111-3Y282iMCV30..30G200406

main82111-3Y290iMCV30..30G200107-200307

main82111-3Y291iMCV30..30G200307-200406

main82111-3Y292iMCV30..30G200406

main82111-3Y300iMCV30..30X200204-200307

main82111-3Y301iMCV30..30X200307-200406

main82111-3Y302iMCV30..30X200406

82112WIRE, ENGINE ROOM, NO.2

main82112-33040iMCV30200406

82217AWIRE, FRONT WINDOW DEFOGGER

main82217-33030iMCV30200406-200603

82345DIODE

main82345-32020iMCV30200406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

828172B730PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730

9011906915

main90119-06915

8 parts on this diagram · 10 diagrams in section
