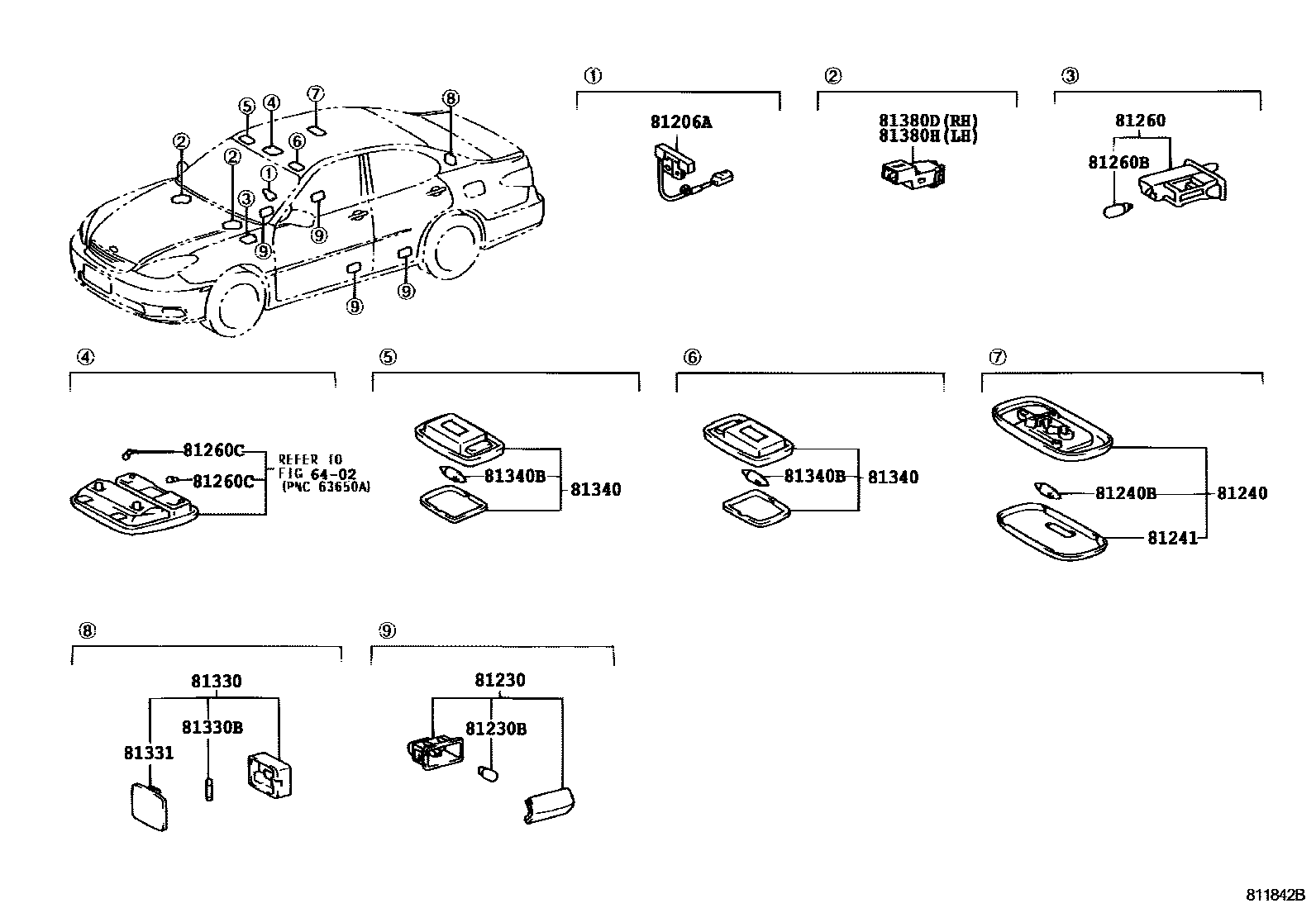

INTERIOR LAMP

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

81206ALAMP SUB-ASSY, CONSOLE BOX

main81206-33010iMCV30200406

81230LAMP ASSY, COURTESY

main81230-48010×4iMCV30200107-200406

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iMCV30200107-200406

81240LAMP ASSY, ROOM, NO.1

main81240-33030-A0iMCV30200107-200406

IVORY,TRIM0#

main81240-33030-A1iMCV30200406-200603

IVORY,TRIM0#

main81240-33030-B0iMCV30200107-200406

LT.GRAY,TRIM2#

main81240-33030-B3iMCV30200406-200603

GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iMCV30200107-200406

81241LENS, ROOM LAMP, NO.1

main81241-33030iMCV30200107-200406

81260LAMP ASSY, GLOVE BOX

main81260-22160iMCV30200205-200406

main81260-33030iMCV30200107-200205

81260BBULB(FOR GLOVE BOX)

main90981-11018iMCV30200406

81260CBULB(FOR MAP LAMP)

main90981-12020×2iMCV30200406

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-33010iMCV30200107-200406

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-14009iMCV30200406

81331LENS, LUGGAGE COMPARTMENT LAMP

main81338-33010iMCV30200107-200406

81340LAMP ASSY, VANITY

main81340-33140-A0×2iMCV30200107-200406

IVORY,TRIM0#

main81340-33140-A1×2iMCV30200406-200603

IVORY,TRIM0#

main81340-33140-B0×2iMCV30200107-200406

LT.GRAY,TRIM2#

main81340-33140-B2×2iMCV30200406-200603

GRAY,TRIM2#

81340BBULB (FOR VANITY LAMP)

main99132-13050×2iMCV30200107-200406

81380DLAMP ASSY, STEP

main81206-33020iMCV30200107-200406

81380HLAMP ASSY, STEP

main81206-33020iMCV30200107-200406

17 parts on this diagram · 1 diagram in section
