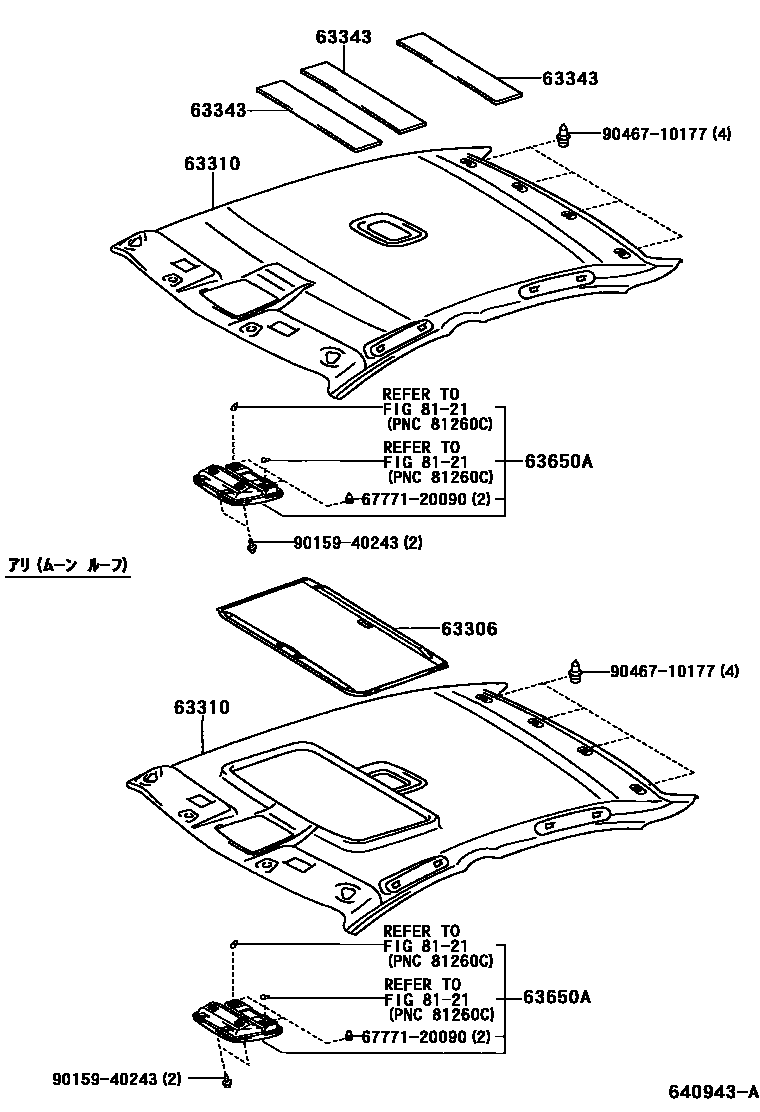

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1��(���)

63306TRIM SUB-ASSY, SUNSHADE

main63306-33080-A0iMCV30200107-200406

IVORY,TRIM0#

main63306-33080-A1iMCV30200406-200603

IVORY,TRIM0#

main63306-33080-B1iMCV30200107-200406

LT.GRAY,TRIM2#

main63306-33080-B2iMCV30200406-200603

LT.GRAY,TRIM2#

63310HEADLINING ASSY, ROOF

main63310-33450-A0iMCV30200107-200403

main63310-33450-B1iMCV30200107-200403

main63310-33451-A0iMCV30200403-200406

main63310-33451-A1iMCV30200406-200603

main63310-33451-B1iMCV30200403-200406

main63310-33451-B2iMCV30200406-200603

main63310-33470-A0iMCV30200107-200311

IVORY,TRIM0#

main63310-33470-B1iMCV30200107-200311

LT.GRAY,TRIM2#

main63310-33471-A0iMCV30200311-200406

IVORY,TRIM0#

main63310-33471-A1iMCV30200406-200603

IVORY,TRIM0#

main63310-33471-B1iMCV30200311-200406

LT.GRAY,TRIM2#

main63310-33471-B2iMCV30200406-200603

LT.GRAY,TRIM2#

63343PAD, ROOF SILENCER, NO.3

main63343-33110×3iMCV30200406

63650ABOX ASSY, ROOF CONSOLE

main63650-33040-A0iMCV30200107-200406

IVORY,TRIM0#

main63650-33040-A1iMCV30200406-200603

IVORY,TRIM0#

main63650-33040-B0iMCV30200107-200406

LT.GRAY,TRIM2#

main63650-33040-B2iMCV30200406-200603

GRAY,TRIM2#

main63650-33050-A0iMCV30200107-200406

main63650-33050-A1iMCV30200406-200603

main63650-33050-B0iMCV30200107-200406

main63650-33050-B2iMCV30200406-200603

main63650-33070-A0iMCV30..30G200406-200603

main63650-33070-B0iMCV30..30G200406-200603

main63650-33080-A0iMCV30..30G200406-200603

main63650-33080-B0iMCV30..30G200406-200603

8121INTERIOR LAMP

→ Go to FIG 81-21

6777120090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20090

9015940243

main90159-40243

9046710177

main90467-10177

8 parts on this diagram · 2 diagrams in section
