STANDARD TOOL

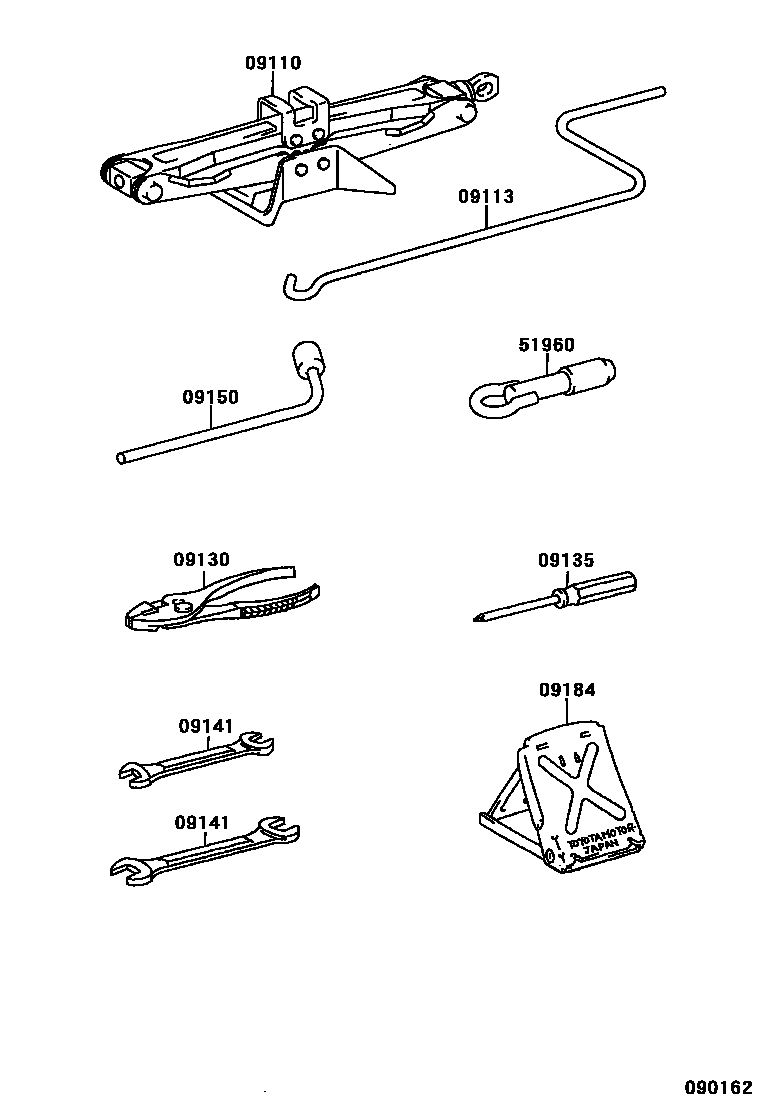

Parts diagram

09110JACK ASSY

main09111-06020i200107-200201

main09111-0W080i200201-200403

main09111-AA010i200404-200406

09113HANDLE, JACK

main09113-33010i200107-200406

09130PLIERS

main09130-50030i200107-200406

09135DRIVER, SCREW

main09135-50040i200107-200406

09141SPANNER

main09141-50050i200107-200406

main09141-50060i200107-200406

09150WRENCH, HUB NUT BOX

main09150-50010i200107-200406

09184STOPPER, WHEEL

main09184-00010i200107-200406

51960HOOK ASSY, FRONT

main51960-33010i200107-200406

8 parts on this diagram · 1 diagram in section
