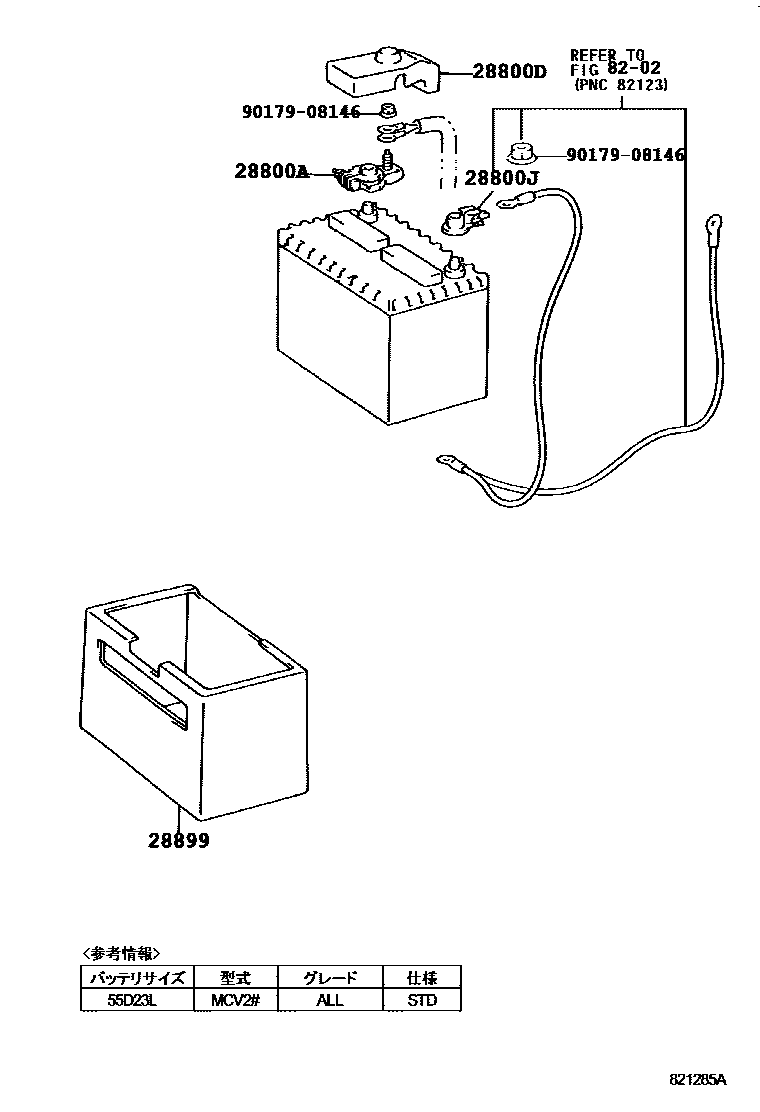

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1MZFE,2MZFE..MCV2#199608

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1MZFE,2MZFE..MCV2#199608

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1MZFE,2MZFE..MCV2#199608

28899INSULATOR, BATTERY

main28899-46060i1MZFE,2MZFE..MCV2#199608-199908

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
