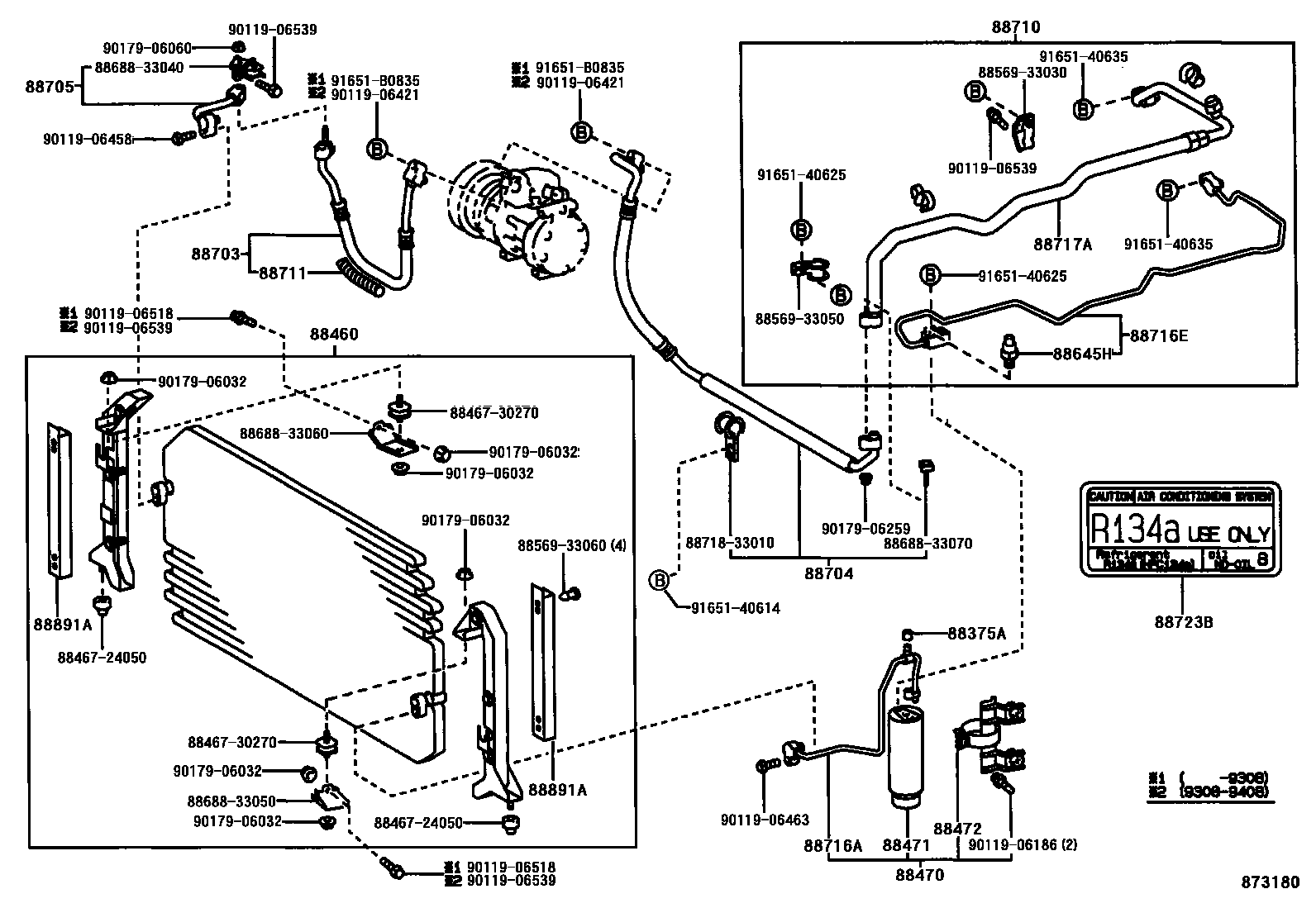

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iVCV10199110-199308

main88375-30280iVCV1#199308-199608

88460CONDENSER ASSY, COOLER

main88460-33010iVCV10199110-199308

main88460-33030iVCV1#199308-199608

88470RECEIVER & DRYER ASSY, COOLER

main88470-33010iVCV10199110-199308

main88470-33020iVCV1#199308-199608

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iVCV1#199308-199608

main88471-50010iVCV10199110-199308

88472BRACKET, RECEIVER TANK, NO.1

main88473-33010iVCV10199110-199308

main88473-33040iVCV1#199308-199608

88645HSWITCH, PRESSURE NO.1

main88645-20040iVCV10199110-199308

main88645-20050iVCV1#199308-199608

88703HOSE SUB-ASSY, DISCHARGE

main88703-33040iVCV10199110-199308

main88703-33090iVCV1#199308-199608

88704HOSE SUB-ASSY, SUCTION

main88704-33020iVCV10199110-199308

main88704-33080iVCV1#199308-199608

88705PIPE SUB-ASSY, DISCHARGE

main88705-33010iVCV10199110-199308

main88705-33020iVCV1#199308-199608

88710TUBE ASSY, AIR CONDITIONER

main88710-33030iVCV10199110-199308

main88710-33050iVCV1#199308-199408

main88710-33051iVCV1#199408-199608

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33060iVCV1#199308-199408

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-33040iVCV10199110-199308

main88716-33120iVCV1#199308-199608

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-33010iVCV10199110-199308

main88716-33090iVCV1#199308-199608

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-33010iVCV10199110-199308

main88717-33070iVCV1#199408-199608

main88717-33100iVCV1#199408-199608

88723BLABEL, COOLER SERVICE CAUTION

main88723-14010iVCV1#199308-199608

main88723-24010iVCV10199110-199308

88891APACKING A (FOR COOLER)

main88578-33010iVCV1#199308-199608

8846724050CUSHION, COOLER CONDENSER, NO.1

main88467-24050

8846730270CUSHION, COOLER CONDENSER, NO.1

main88467-30270

8856933030CLAMP (FOR COOLER RELAY)

main88569-33030

8856933050CLAMP (FOR COOLER RELAY)

main88569-33050

8856933060CLAMP (FOR COOLER RELAY)

main88569-33060

8868833040BRACKET, COOLER DIAPHRAGM

main88688-33040

8868833050BRACKET, COOLER DIAPHRAGM

main88688-33050

8868833060BRACKET, COOLER DIAPHRAGM

main88688-33060

8868833070BRACKET, COOLER DIAPHRAGM

main88688-33070

8871833010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33010

9011906186

main90119-06186

9011906421

main90119-06421

9011906458

main90119-06458

9011906463

main90119-06463

9011906518

main90119-06518

9011906539

main90119-06539

9017906032

main90179-06032

9017906060

main90179-06060

9017906259

main90179-06259

9165140614

main91651-40614

9165140625

main91651-40625

9165140635

main91651-40635

91651B0835

main91651-B0835

39 parts on this diagram · 3 diagrams in section
