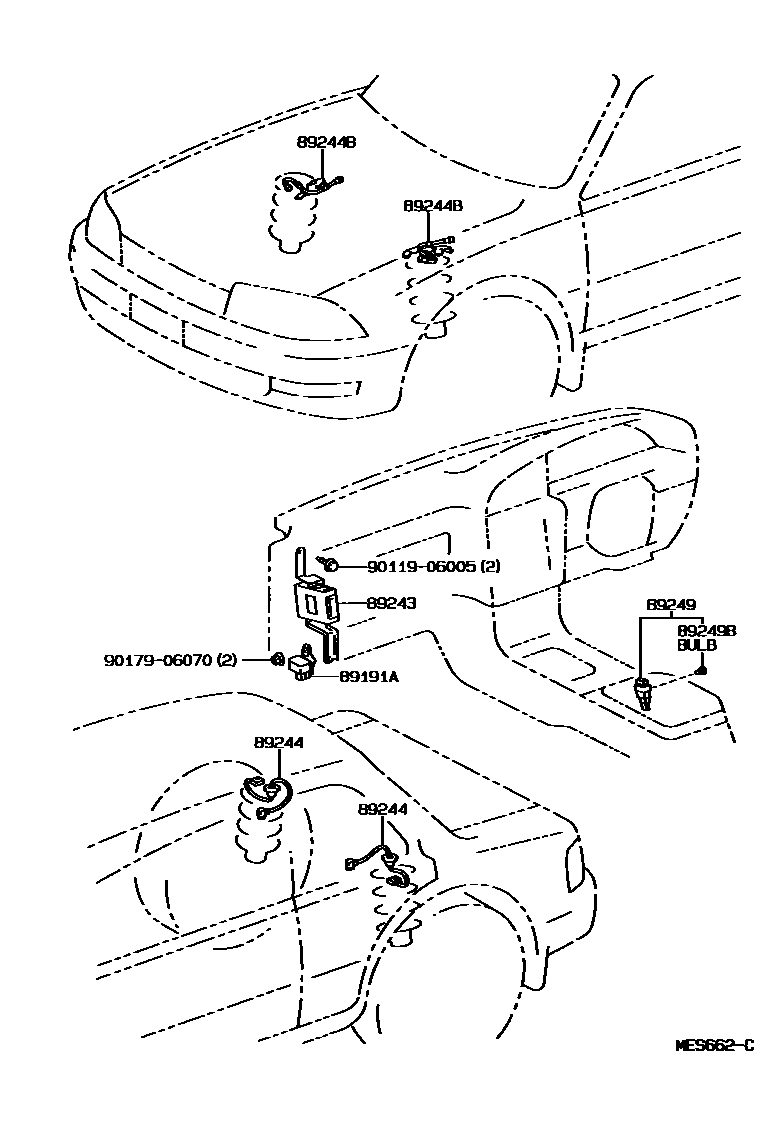

ELECTRONIC MODULATED SUSPENSION

89191ASENSOR, ACCELERATION

main89191-33010iVCV10199408-199608

89243COMPUTER, ABSORBER CONTROL

main89243-06010iVCV10199408-199608

3.0G,DELCO

main89243-33020iVCV10199110-199301

main89243-33021iVCV10199408-199608

3.0G,*ND

89244WIRE, ABSORBER CONTROL, REAR

main89244-33020×2iVCV10199110-199408

89244BWIRE, ABSORBER CONTROL, FRONT

main89244-33010×2iVCV10199110-199408

89249SWITCH, ABSORBER CONTROL

main89249-33010iVCV10199110-199408

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10490iVCV10199110-199408

9011906005

main90119-06005

9017906070

main90179-06070

8 parts on this diagram · 1 diagram in section
