BATTERY CARRIER

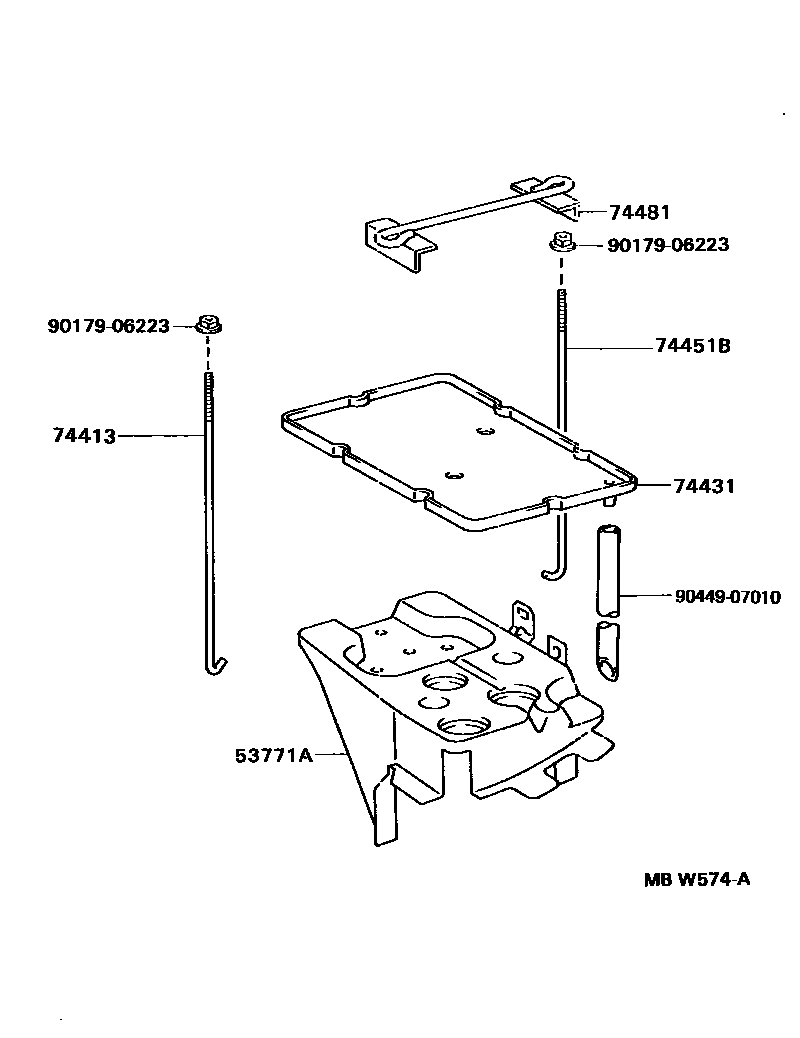

Parts diagram

53771ASUPPORT, BATTERY CARRIER

main53704-33010i199110-199608

74413BOLT, BATTERY CLAMP

main74451-33010i199110-199608

74431TRAY, BATTERY

main74431-33010i199112-199608

main74431-33020i199110-199112

74451BBOLT, BATTERY CLAMP

main74452-33010i199110-199608

74481CLAMP, BATTERY HOLD DOWN

main74404-33010i199110-199211

main74404-33030i199211-199608

9017906223

main90179-06223

9044907010

main90449-07010

7 parts on this diagram · 1 diagram in section
