INSTRUMENT PANEL & GLOVE COMPARTMENT

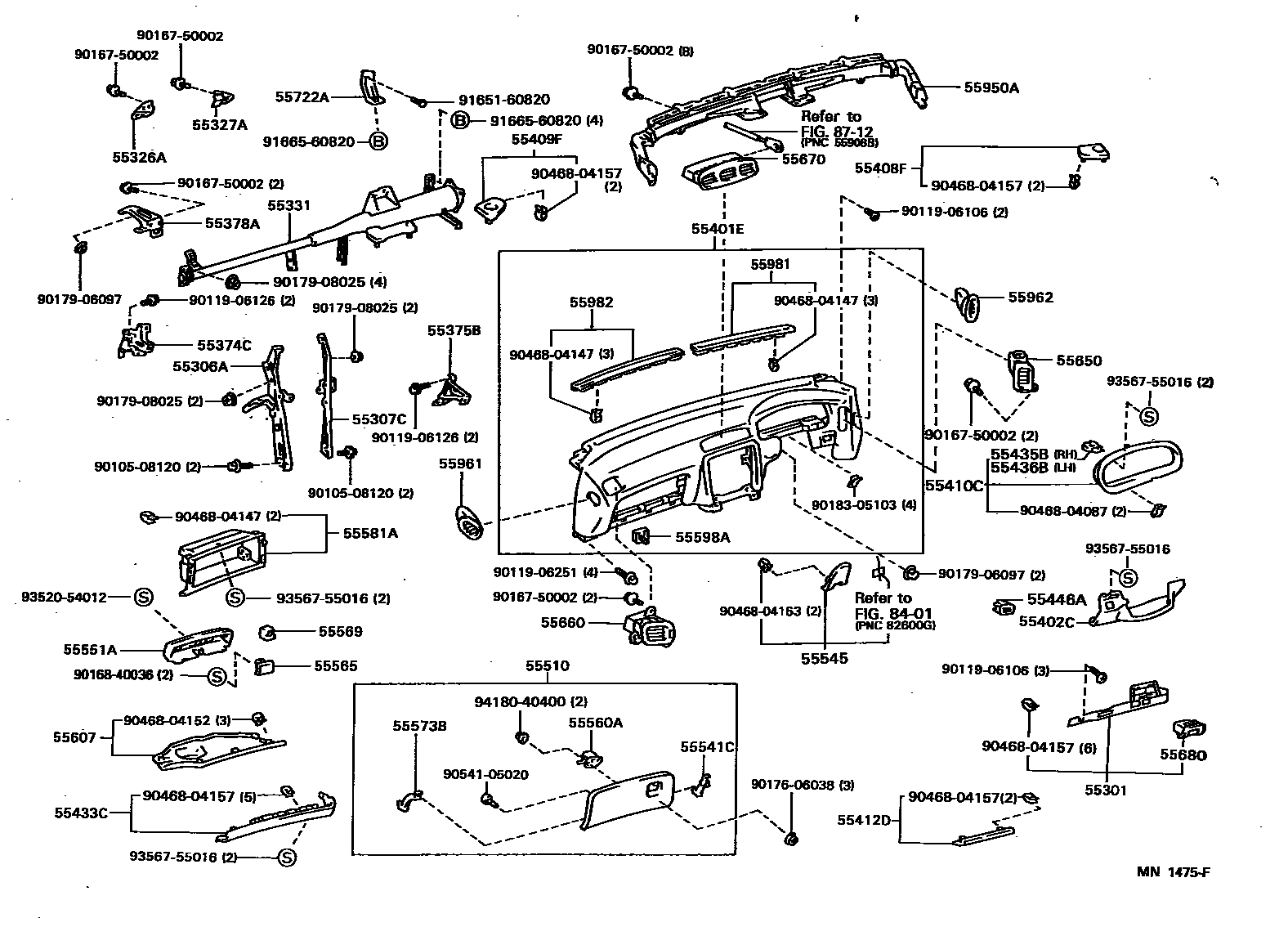

Parts diagram
55301PANEL SUB-ASSY, INSTRUMENT
main55045-33020-C1i199308-199408
BLACK,TRIM2#
main55045-33020-E1i199308-199408
OAK,TRIM4#
main55045-33020-K1i199308-199408
TAUPE,TRIM9#
main55045-33021-C2i199408-199608
BLACK,TRIM2#
main55045-33021-E3i199408-199608
OAK,TRIM4#
main55045-33021-K3i199408-199608
MD.TAUPE,TRIM9#
main55301-33020-A0i199110-199308
IVORY,TRIM0#
main55301-33020-C0i199110-199308
BLACK,TRIM2#
main55301-33020-K0i199110-199308
MEDIUM TAUPE,TRIM9#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-33040i199110-199608
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-33040i199110-199608
55326ASTAY, INSTRUMENT PANEL, NO.1
main55326-33020i199110-199608
55327ASTAY, INSTRUMENT PANEL, NO.2
main55327-33010i199110-199608
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-33060i199110-199308
main55330-33110i199308-199608
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
main55374-33040i199110-199608
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
main55375-33040i199110-199608
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
main55308-33020i199110-199308
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-33060-C0i199110-199308
BLACK,TRIM2#
main55401-33060-E0i199110-199308
GREIGE,TRIM0#
main55401-33060-K0i199110-199308
TAUPE,TRIM9#
main55401-33090-C0i199308-199608
BLACK,TRIM2#
main55401-33090-E1i199308-199408
OAK,TRIM4#
main55401-33090-K0i199308-199608
TAUPE,TRIM9#
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
main55402-33010-C0i199110-199608
BLACK,TRIM2#
main55402-33010-E0i199110-199308
GREIGE,TRIM0#
main55402-33010-E1i199408-199608
OAK,TRIM4#
main55402-33010-K0i199110-199608
TAUPE,TRIM9#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
main55408-33010-01i199110-199408
BLACK,TRIM2#
main55408-33010-02i199110-199408
TAUPE,TRIM9#
main55408-33010-05i199110-199308
GREIGE,TRIM0#
main55408-33010-22i199408-199608
2.5G OR 3.0G,BLACK,TRIM2#; BLACK,TRIM2#
main55408-33010-E0i199308-199408
OAK,TRIM4#
main55408-33010-K0i199408-199608
2.5G OR 3.0G,TAUPE,TRIM9#; TAUPE,TRIM9#
main55472-33020-C0i199408-199608
BLACK,TRIM2#
main55472-33020-K0i199408-199608
TAUPE,TRIM9#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
main55409-33010-01i199110-199408
BLACK,TRIM2#
main55409-33010-02i199110-199408
TAUPE,TRIM9#
main55409-33010-05i199110-199308
GREIGE,TRIM0#
main55409-33010-22i199408-199608
2.5G OR 3.0G,BLACK,TRIM2#; BLACK,TRIM2#
main55409-33010-E0i199308-199408
OAK,TRIM4#
main55409-33010-K0i199408-199608
2.5G OR 3.0G,TAUPE,TRIM9#; TAUPE,TRIM9#
main55473-33020-C0i199408-199608
BLACK,TRIM2#
main55473-33020-K0i199408-199608
TAUPE,TRIM9#
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
main55404-33060i199110-199608
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55412-33070i199110-199408
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
main55302-33020-A0i199110-199308
IVORY,TRIM0#
main55302-33020-C0i199110-199308
BLACK,TRIM2#
main55302-33020-K0i199110-199308
MEDIUM TAUPE,TRIM9#
main55312-33050-C1i199308-199408
BLACK,TRIM2#
main55312-33050-E1i199308-199408
OAK,TRIM4#
main55312-33050-K1i199308-199408
TAUPE,TRIM9#
main55312-33051-C1i199408-199608
BLACK,TRIM2#
main55312-33051-E1i199408-199608
OAK,TRIM4#
main55312-33051-K1i199408-199608
MD.TAUPE,TRIM9#
55435BCLUSTER, METER HOOD, NO.1
main55435-33020i199110-199608
55436BCLUSTER, METER HOOD, NO.2
main55436-33030i199110-199608
55446ABASE, SWITCH HOLE, NO.1
main55446-33020-C0i199110-199608
BLACK,TRIM2#
main55446-33020-E0i199110-199308
GREIGE,TRIM0#
main55446-33020-E1i199308-199408
OAK,TRIM4#
main55446-33020-K0i199110-199608
TAUPE,TRIM9#
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-33040-C0i199110-199308
BLACK,TRIM2#
main55550-33040-E0i199110-199308
GREIGE,TRIM0#
main55550-33040-K0i199110-199308
TAUPE,TRIM9#
main55550-33070-C0i199308-199608
BLACK,TRIM2#
main55550-33070-E1i199308-199408
OAK,TRIM4#
main55550-33070-K0i199308-199608
TAUPE,TRIM9#
55541CARM, GLOVE COMPARTMENT HINGE, RH
main55541-33030i199110-199308
main55541-33040i199308-199608
55545COVER, FUSE BOX OPENING
main55540-33020-C0i199110-199308
BLACK,TRIM2#
main55540-33020-E0i199110-199308
GREIGE,TRIM0#
main55540-33020-K0i199110-199308
TAUPE,TRIM9#
main55540-33021-C0i199308-199408
BLACK,TRIM2#
main55540-33021-E1i199308-199408
OAK,TRIM4#
main55540-33021-K0i199308-199408
TAUPE,TRIM9#
main55540-33022-C0i199408-199608
BLACK,TRIM2#
main55540-33022-E1i199408-199608
OAK,TRIM4#
main55540-33022-K0i199408-199608
TAUPE,TRIM9#
55551ADOOR, GLOVE COMPARTMENT, OUTER
main55551-33020i199110-199308
main55551-33050i199308-199608
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
main55560-30010i199110-199308
main55560-33040i199308-199608
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
main55565-50010-01i199110-199408
BLACK,TRIM2#
main55565-50010-05i199110-199308
GREIGE,TRIM0#
main55565-50010-12i199110-199408
TAUPE,TRIM9#
main55565-50010-22i199408-199608
BLACK,TRIM2#
main55565-50010-E0i199308-199408
OAK,TRIM4#
main55565-50010-K0i199408-199608
TUAPE,TRIM9#
55569COVER, GLOVE COMPARTMENT DOOR LOCK
main55569-50010-01i199110-199408
BLACK,TRIM2#
main55569-50010-05i199110-199308
GREIGE,TRIM0#
main55569-50010-12i199110-199408
TAUPE,TRIM9#
main55569-50010-22i199408-199608
BLACK,TRIM2#
main55569-50010-E0i199308-199408
OAK,TRIM4#
main55569-50010-K0i199408-199608
TUAPE,TRIM9#
55573BARM, GLOVE COMPARTMENT DOOR CHECK, LH
main55542-33030i199110-199308
main55542-33040i199308-199608
55581ACOMPARTMENT, GLOVE
main55506-33020i199308-199608
main55581-33050i199110-199308
55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE
main55598-33020×3i199110-199608
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
main55607-33020i199110-199608
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-33040-C0i199110-199308
BLACK,TRIM2#
main55650-33040-E0i199110-199308
GREIGE,TRIM0#
main55650-33040-K0i199110-199308
TAUPE,TRIM9#
main55650-33041-C0i199308-199608
BLACK,TRIM2#
main55650-33041-E1i199408-199608
OAK,TRIM4#
main55650-33041-K0i199308-199608
TAUPE,TRIM9#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-33060-C0i199110-199308
BLACK,TRIM2#
main55660-33060-E0i199110-199308
GREIGE,TRIM0#
main55660-33060-K0i199110-199308
TAUPE,TRIM9#
main55660-33070-C0i199308-199608
BLACK,TRIM2#
main55660-33070-E1i199308-199408
OAK,TRIM4#
main55660-33070-K0i199308-199608
TAUPE,TRIM9#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-33040-C0i199110-199608
BLACK,TRIM2#
main55670-33040-E0i199110-199308
GREIGE,TRIM0#
main55670-33040-E1i199308-199408
OAK,TRIM4#
main55670-33040-K0i199110-199608
TAUPE,TRIM9#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
main55680-33020-01i199308-199408
BLACK,TRIM2#,4#,9#
main55680-33020-02i199110-199308
MEDIUM TAUPE,TRIM9#
main55680-33020-08i199110-199308
IVORY,TRIM0#
main55680-33020-22i199408-199608
BLACK,TRIM2#,4#,9#; BLACK,TRIM2#,9#
55722ABRACE, COWL TOP TO COWL, INNER NO.2
main55722-33010i199110-199408
55950ANOZZLE ASSY, DEFROSTER
main55950-33040i199110-199608
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-33030-01i199110-199408
BLACK,TRIM2#
main55961-33030-02i199110-199408
TAUPE,TRIM9#
main55961-33030-05i199110-199308
GREIGE,TRIM0#
main55961-33030-22i199408-199608
BLACK,TRIM2#
main55961-33030-E0i199408-199608
OAK,TRIM4#
main55961-33030-K0i199408-199608
TAUPE,TRIM9#
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-33030-01i199110-199408
BLACK,TRIM2#
main55962-33030-02i199110-199408
TAUPE,TRIM9#
main55962-33030-05i199110-199308
GREIGE,TRIM0#
main55962-33030-22i199408-199608
BLACK,TRIM2#
main55962-33030-E0i199308-199408
OAK,TRIM4#
main55962-33030-K0i199408-199608
TAUPE,TRIM9#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-33040i199110-199608
55982GARNISH, DEFROSTER NOZZLE, NO.2
main55982-33040i199110-199608
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
→ Go to FIG 87-12
9010508120
main90105-08120
9011906106
main90119-06106
9011906126
main90119-06126
9011906251
main90119-06251
9016750002
main90167-50002
9016840036
main90168-40036
9017606038
main90176-06038
9017906097
main90179-06097
9017908025
main90179-08025
9018305103
main90183-05103
9046804087
main90468-04087
9046804147
main90468-04147
9046804152
main90468-04152
9046804157
main90468-04157
9046804163
main90468-04163
9054105020
main90541-05020
9165160820
main91651-60820
9166560820
main91665-60820
9352054012
main93520-54012
9356755016
main93567-55016
9418040400
main94180-40400

63 parts on this diagram · 3 diagrams in section
