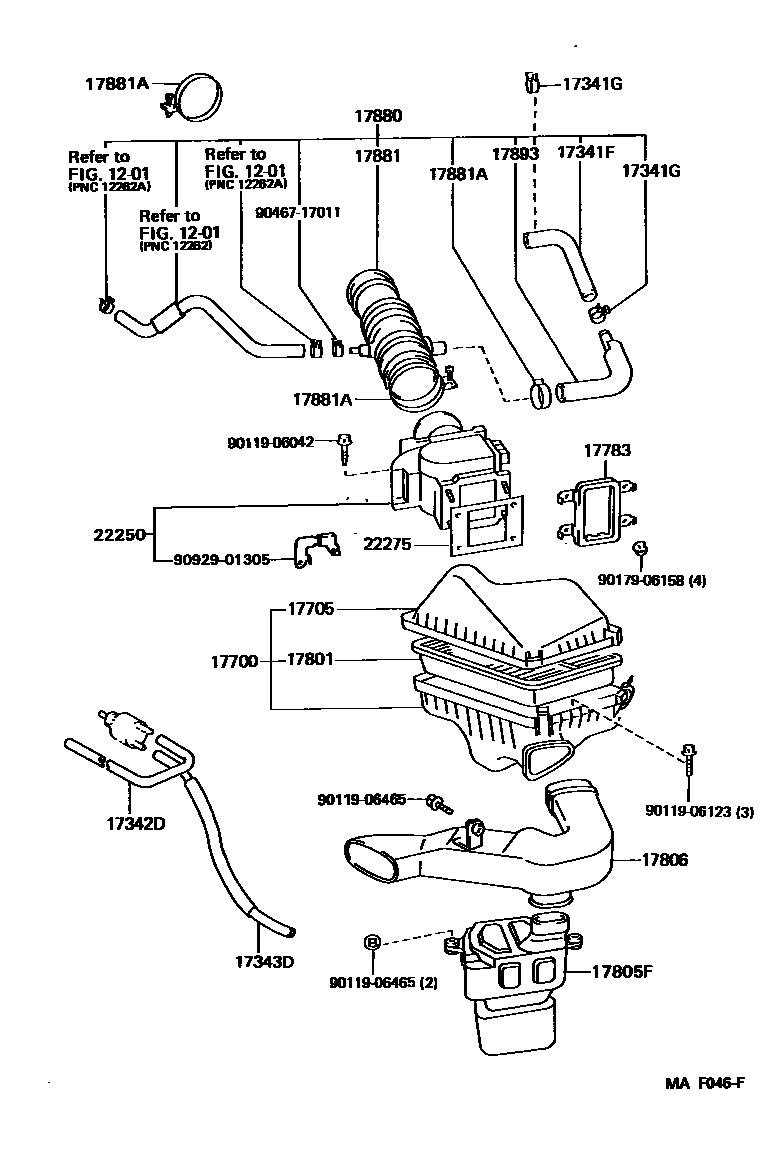

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17341FHOSE, AIR, NO.1

main17341-62030i3VZFE,4VZFE..VCV1#199110-199608

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90467-23007i3VZFE,4VZFE..VCV1#199110-199608

ISCV SIDE

main90467-26006i3VZFE,4VZFE..VCV1#199110-199608

RESONATOR SIDE

17342DHOSE, AIR, NO.2

main17342-62040i3VZFE..VCV10199110-199408

main17342-62060i4VZFE..VCV11199308-199408

17343DHOSE, AIR, NO.3

main17343-62060i3VZFE,4VZFE..VCV1#199110-199608

17700CLEANER ASSY, AIR

main17700-62040i3VZFE,4VZFE..VCV1#199110-199608

17705CAP SUB-ASSY, AIR CLEANER

main17705-62040i3VZFE,4VZFE..VCV1#199110-199608

17783PLATE, AIR CLEANER BAFFLE

main17783-62020i3VZFE,4VZFE..VCV1#199110-199608

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-03010i3VZFE,4VZFE..VCV1#199301-199608

main17801-74060i3VZFE,4VZFE..VCV1#199110-199608

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-74100i3VZFE,4VZFE..VCV1#199110-199608

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

main17806-74010i3VZFE,4VZFE..VCV1#199110-199608

17880HOSE ASSY, AIR CLEANER

main17880-62040i3VZFE,4VZFE..VCV1#199110-199608

main17880-62060i3VZFE..VCV10199408-199608

17881HOSE, AIR CLEANER, NO.1

main17881-62040i3VZFE,4VZFE..VCV1#199110-199608

main17881-62060i3VZFE..VCV10199110-199408

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80001i3VZFE..VCV10199110-199306

THROTTLE BODY SIDE

main90467-41003i3VZFE..VCV10199110-199408

main96111-10800i3VZFE,4VZFE..VCV1#199306-199608

THROTTLE BODY SIDE

main96111-10900i3VZFE..VCV10199110-199408

17893RESONATOR, INTAKE AIR

main17893-62030i3VZFE,4VZFE..VCV1#199110-199608

22250METER ASSY, INTAKE AIR FLOW

main22250-62060i3VZFE,4VZFE..VCV1#199110-199608

22275GASKET, AIR FLOW METER

main22275-43010i3VZFE,4VZFE..VCV1#199110-199608

9011906042

main90119-06042

9011906123

main90119-06123

9011906465

main90119-06465

9017906158

main90179-06158

9046717011

main90467-17011

9092901305

main90929-01305

23 parts on this diagram · 2 diagrams in section
