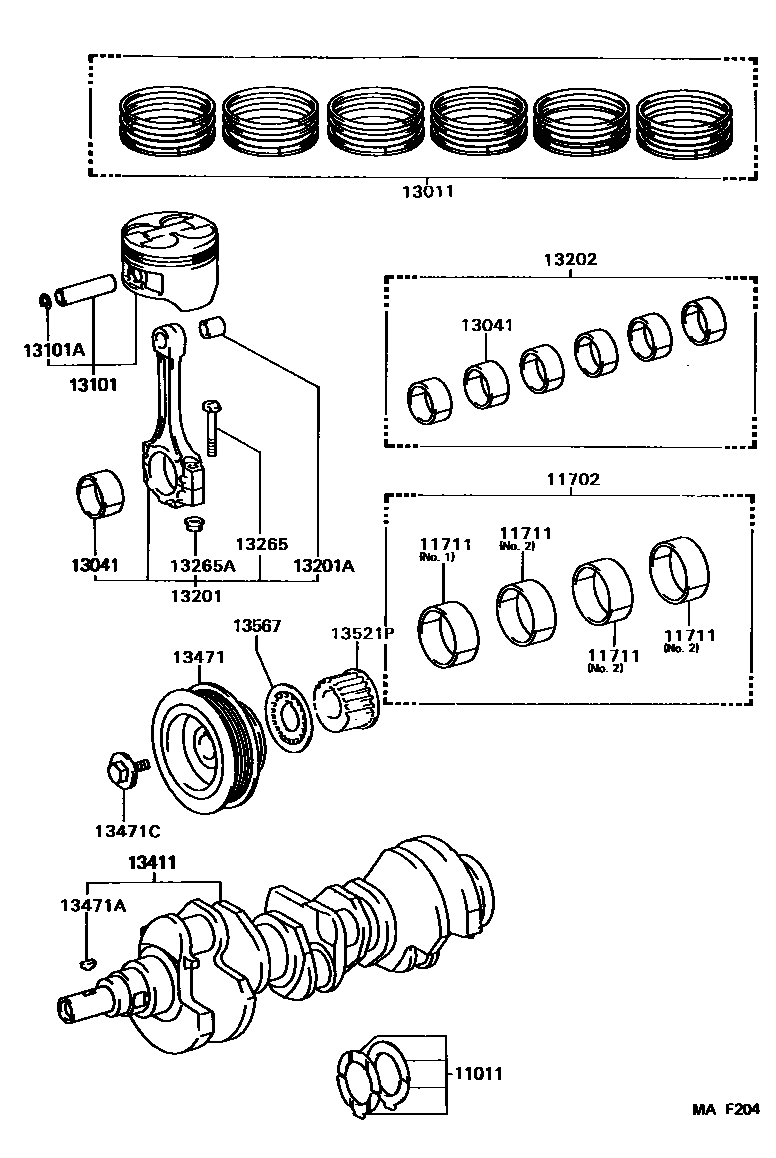

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-62010i3VZFE,4VZFE..VCV1#199110-199608

11702BEARING SET, CRANKSHAFT

main11704-62020i3VZFE..VCV10199110-199204

main11704-62021i3VZFE,4VZFE..VCV1#199204-199404

main11704-62022i3VZFE,4VZFE..VCV1#199404-199608

11711BEARING, CRANKSHAFT

main11071-62020-01×3i3VZFE,4VZFE..VCV1#199110-199608

main11071-62020-02×3i3VZFE,4VZFE..VCV1#199110-199608

main11071-62020-03×3i3VZFE,4VZFE..VCV1#199110-199608

main11071-62020-04×3i3VZFE,4VZFE..VCV1#199110-199608

main11071-62020-05×3i3VZFE,4VZFE..VCV1#199110-199608

main11701-62020-01i3VZFE..VCV10199110-199204

main11701-62020-02i3VZFE..VCV10199110-199204

main11701-62020-03i3VZFE..VCV10199110-199204

main11701-62020-04i3VZFE..VCV10199110-199204

main11701-62020-05i3VZFE..VCV10199110-199204

main11701-62020-06i3VZFE..VCV10199110-199204

main11701-62020-07i3VZFE..VCV10199110-199204

main11701-62021-01i3VZFE,4VZFE..VCV1#199204-199404

main11701-62021-02i3VZFE,4VZFE..VCV1#199204-199404

main11701-62021-03i3VZFE,4VZFE..VCV1#199204-199404

main11701-62021-04i3VZFE,4VZFE..VCV1#199204-199404

main11701-62021-05i3VZFE,4VZFE..VCV1#199204-199404

main11701-62021-06i3VZFE,4VZFE..VCV1#199204-199404

main11701-62022-01i3VZFE,4VZFE..VCV1#199404-199608

main11701-62022-02i3VZFE,4VZFE..VCV1#199404-199608

main11701-62022-03i3VZFE,4VZFE..VCV1#199404-199608

main11701-62022-04i3VZFE,4VZFE..VCV1#199404-199608

main11701-62022-05i3VZFE,4VZFE..VCV1#199404-199608

main11701-62022-06i3VZFE,4VZFE..VCV1#199404-199608

13011RING SET, PISTON

main13011-62060i3VZFE..VCV10199510-199608

main13011-62080i4VZFE..VCV11199308-199608

main13011-65021i3VZFE..VCV10199110-199510

main13013-62060i3VZFE..VCV10199510-199608

main13013-62080i4VZFE..VCV11199308-199608

main13013-65021i3VZFE..VCV10199110-199510

13041BEARING, CONNECTING ROD

main13041-62010-01×6i4VZFE..VCV11199308-199608

MARK 1

main13041-62010-02×6i4VZFE..VCV11199308-199608

MARK 2

main13041-62010-03×6i4VZFE..VCV11199308-199608

MARK 3

main13041-62020-01×6i3VZFE..VCV10199110-199608

MARK 1

main13041-62020-02×6i3VZFE..VCV10199110-199608

MARK 2

main13041-62020-03×6i3VZFE..VCV10199110-199608

MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-62040-01×6i3VZFE..VCV10199110-199608

main13101-62040-02×6i3VZFE..VCV10199110-199608

main13101-62040-03×6i3VZFE..VCV10199110-199608

main13101-62050-01×6i4VZFE..VCV11199308-199608

main13101-62050-02×6i4VZFE..VCV11199308-199608

main13101-62050-03×6i4VZFE..VCV11199308-199608

main13103-62040×6i3VZFE..VCV10199110-199608

main13103-62050×6i4VZFE..VCV11199308-199608

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25004×12i3VZFE..VCV10199110-199608

13201ROD SUB-ASSY, CONNECTING

main13201-69085×6i4VZFE..VCV11199308-199608

main13201-69125×6i3VZFE..VCV10199110-199608

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73130×6i3VZFE..VCV10199110-199608

13202BEARING SET, CONNECTING ROD

main13204-62010i4VZFE..VCV11199308-199608

main13204-62020i3VZFE..VCV10199110-199608

13265BOLT, CONNECTING ROD

main13265-62010×12i4VZFE..VCV11199308-199512

main13265-62030×12i3VZFE..VCV10199110-199608

main13265-62040×12i4VZFE..VCV11199512-199608

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08118×12i3VZFE,4VZFE..VCV1#199110-199608

13411CRANKSHAFT

main13401-62010i3VZFE..VCV10199110-199608

main13401-62020i4VZFE..VCV11199308-199608

13471PULLEY, CRANKSHAFT

main13408-62030i3VZFE,4VZFE..VCV1#199110-199608

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i3VZFE,4VZFE..VCV1#199203-199608

main95161-20519i3VZFE..VCV10199110-199203

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16031i3VZFE,4VZFE..VCV1#199110-199608

13521PPULLEY, CRANKSHAFT TIMING

main13521-62020i3VZFE,4VZFE..VCV1#199110-199608

13567GUIDE, TIMING BELT, NO.2

main13567-62010i3VZFE,4VZFE..VCV1#199110-199608
