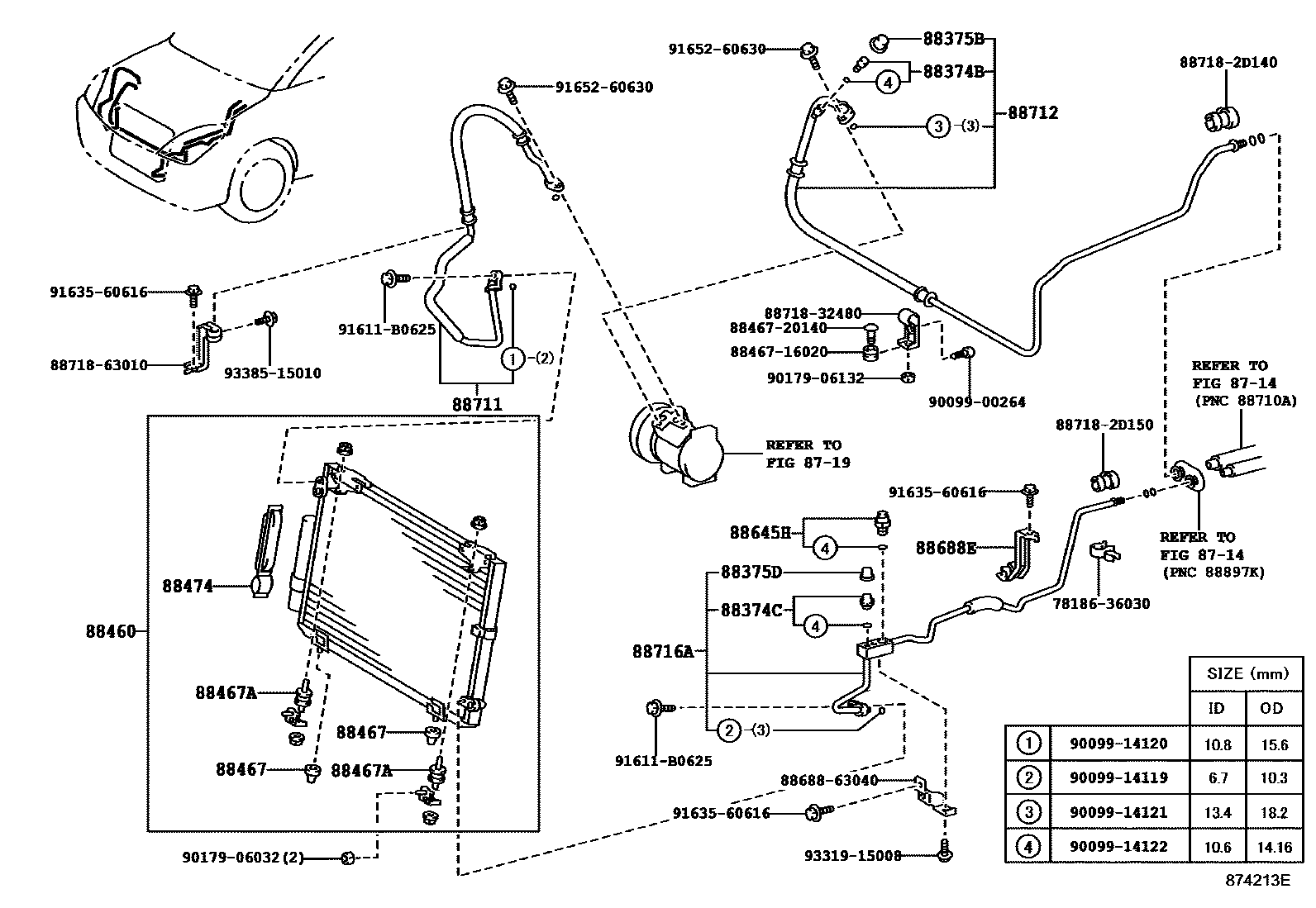

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iACT10,ZCT1#200004-200205

88374CVALVE, SERVICE, NO.2

main88374-30010iACT10,ZCT1#200004-200205

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iACT10,ZCT1#200004-200205

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iACT10,ZCT1#200004-200205

88460CONDENSER ASSY, COOLER

main88460-63020iACT10,ZCT1#200004-200205

main88460-63021iACT10,ZCT1#200205

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20170×2iACT10,ZCT1#200004-200205

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-12030×2iACT10,ZCT1#200004-200205

88474DRYER, COOLER

main88474-47010iACT10,ZCT1#200205

88645HSWITCH, PRESSURE NO.1

main88645-60030iACT10,ZCT1#200004-200205

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-2G020iACT10200205

main88688-63020iZCT1#200004-200205

main88688-63030iACT10200008-200205

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-63060iZCT1#200205

main88703-63070iACT10200205

main88711-63010iZCT1#200004-200107

main88711-63020iACT10200008-200107

main88711-63030iZCT1#200107-200205

main88711-63040iACT10200107-200205

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-63060iZCT1#200205

main88704-63070iACT10200205

main88712-63010iZCT1#200004-200107

main88712-63020iACT10200008-200107

main88712-63030iZCT1#200107-200205

main88712-63040iACT10200107-200205

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-63040iZCT1#200205

main88710-63030iACT10200205

main88716-63010iZCT1#200004-200107

main88716-63020iACT10200008-200107

main88716-63030iZCT1#200107-200205

main88716-63040iACT10200107-200205

7818636030SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-36030

8846716020CUSHION, COOLER CONDENSER, NO.1

main88467-16020

8846720140CUSHION, COOLER CONDENSER, NO.1

main88467-20140

8868863040BRACKET, COOLER DIAPHRAGM

main88688-63040

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32480

8871863010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-63010

9009900264

main90099-00264

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9017906032

main90179-06032

9017906132

main90179-06132

91611B0625

main91611-B0625

9163560616

main91635-60616

9165260630

main91652-60630

9331915008

main93319-15008

9338515010

main93385-15010

35 parts on this diagram · 6 diagrams in section
