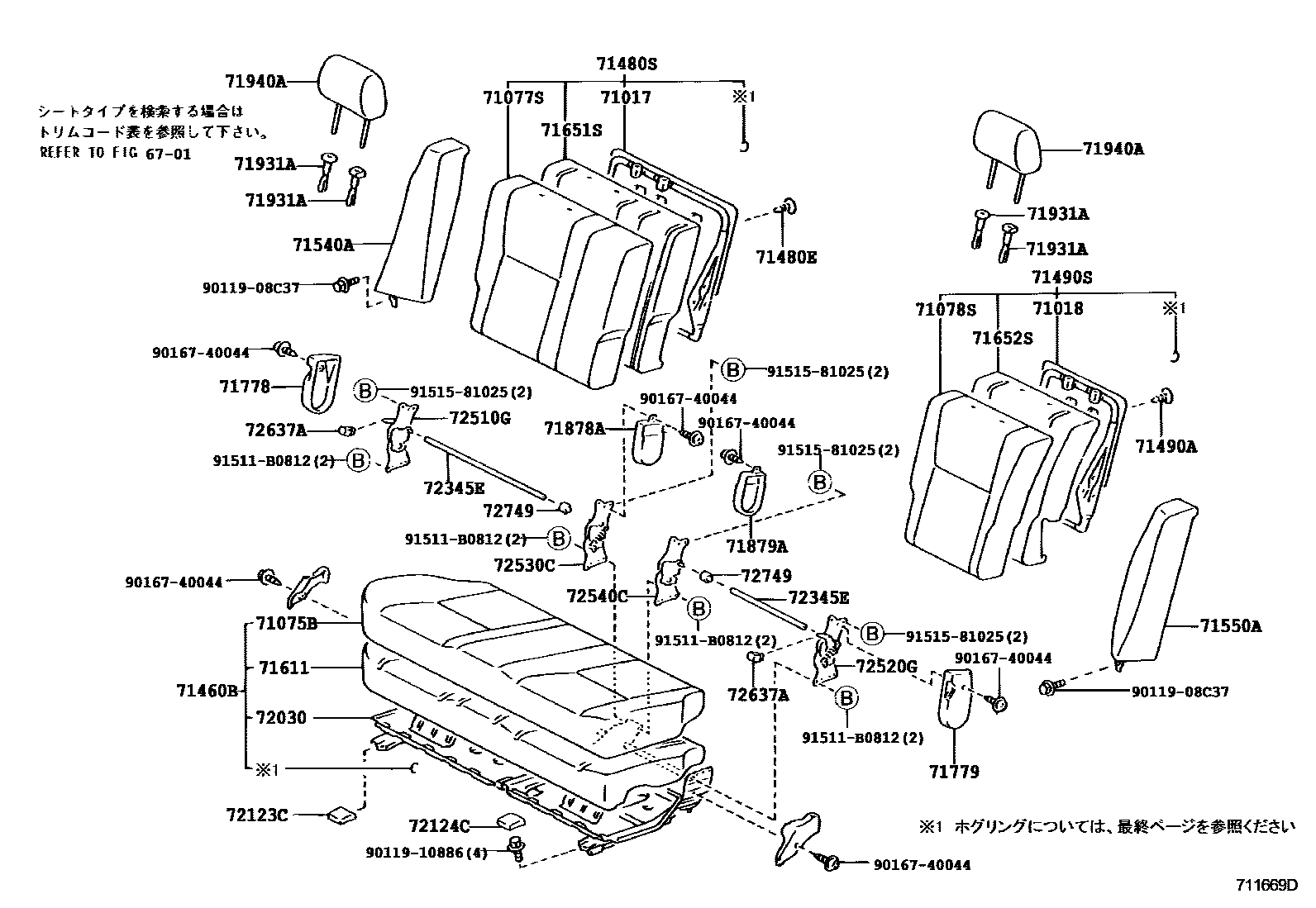

REAR SEAT & SEAT TRACK

0001 1�����-� 0002 1����-��-� 0003 1�������

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-63010iACT10,ZCT1#200004-200205

main71017-63020iACT10,ZCT1#200205-200504

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-63010iACT10,ZCT1#200004-200205

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-63010-B1iACT10,ZCT1#..A200004-200108

DARK GRAY,TRIM1#

main71075-63011-B2iACT10,ZCT1#..A200108-200205

DARK GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-63010-B1iACT10,ZCT1#..A200004-200108

main71077-63011-B2iACT10,ZCT1#..A200108-200205

main71077-63020-B1iACT10,ZCT1#..A200004-200108

main71077-63021-B2iACT10,ZCT1#..A200108-200205

main71077-63021-B3iZCT1#..A200205-200504

main71077-63030-B1iACT10,ZCT1#..I200004-200108

main71077-63031-B2iACT10,ZCT1#..I200108-200205

main71077-63040-B1iACT10..I200008-200108

main71077-63041-B1iACT10..I; ZCT1#..I200108-200205

main71077-63050-B1iACT10,ZCT1#..I200004-200108

main71077-63051-B1iACT10,ZCT1#..I200108-200205

main71077-63060-B0iZCT1#..A200205-200504

main71077-63070-B0iACT10,ZCT1#..I200205-200504

main71077-63080-B0iACT10,ZCT1#..I200205-200504

main71077-63090-B0iACT10,ZCT1#..I200205-200504

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-63010-B1iACT10,ZCT1#..A200004-200108

main71078-63011-B2iACT10,ZCT1#..A200108-200205

main71078-63020-B1iACT10,ZCT1#..A200004-200108

main71078-63021-B2iACT10,ZCT1#..A200108-200205

main71078-63021-B3iZCT1#..A200205-200504

main71078-63030-B1iACT10,ZCT1#..I200004-200108

main71078-63031-B2iACT10,ZCT1#..I200108-200205

main71078-63031-B3iACT10,ZCT1#..I200205-200504

main71078-63040-B1iACT10..I200008-200108

main71078-63041-B1iACT10..I; ZCT1#..I200108-200205

main71078-63041-B2iACT10,ZCT1#..I200205-200504

main71078-63050-B1iACT10,ZCT1#..I200004-200108

main71078-63051-B1iACT10,ZCT1#..I200108-200205

main71078-63051-B2iACT10,ZCT1#..I200205-200504

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-63010-B1iACT10,ZCT1#..A200004-200108

***,DARK GRAY,TRIM1#

main71460-63011-B1iACT10,ZCT1#..A200108-200205

***,DK.GRAY,TRIM1#

71480ECLIP, REAR SEATBACK, RH

main90467-05020-P1×9iACT10,ZCT1#..A200004-200205

DK.GRAY,TRIM1#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-63010-B1iACT10,ZCT1#..A200004-200108

main71480-63011-B1iACT10,ZCT1#..A200108-200205

main71480-63020-B1iACT10,ZCT1#..A200004-200108

main71480-63021-B1iACT10,ZCT1#..A200108-200205

main71480-63030-B1iACT10,ZCT1#..I200004-200108

main71480-63031-B1iACT10,ZCT1#..I200108-200205

main71480-63040-B1iACT10..I200008-200108

main71480-63041-B1iACT10..I; ZCT1#..I200108-200205

main71480-63050-B1iACT10,ZCT1#..I200004-200108

main71480-63051-B1iACT10,ZCT1#..I200108-200205

71490ACLIP, REAR SEATBACK, LH

main90467-05020-P1×8iACT10,ZCT1#..A200004-200205

DK.GRAY,TRIM1#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-63010-B1iACT10,ZCT1#..A200004-200108

main71490-63011-B1iACT10,ZCT1#..A200108-200205

main71490-63020-B1iACT10,ZCT1#..A200004-200108

main71490-63021-B1iACT10,ZCT1#..A200108-200205

main71490-63030-B1iACT10,ZCT1#..I200004-200108

main71490-63031-B1iACT10,ZCT1#..I200108-200205

main71490-63040-B1iACT10..I200008-200108

main71490-63041-B1iACT10..I; ZCT1#..I200108-200205

main71490-63050-B1iACT10,ZCT1#..I200004-200108

main71490-63051-B1iACT10,ZCT1#..I200108-200205

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-63010-B0iACT10,ZCT1#..A200004-200108

main71540-63011-B1iACT10,ZCT1#..A200108-200205

main71540-63011-B2iZCT1#..A200205-200504

main71540-63020-B0iACT10,ZCT1#..I200004-200108

main71540-63021-B1iACT10,ZCT1#..I200108-200205

main71540-63021-B2iACT10,ZCT1#..I200205-200504

main71540-63030-B0iACT10..I200008-200205

main71540-63030-B1iACT10; ZCT1#..I200205-200504

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-63010-B0iACT10,ZCT1#..A200004-200108

main71550-63011-B1iACT10,ZCT1#..A200108-200205

main71550-63011-B2iZCT1#..A200205-200504

main71550-63020-B0iACT10,ZCT1#..I200004-200108

main71550-63021-B1iACT10,ZCT1#..I200108-200205

main71550-63021-B2iACT10,ZCT1#..I200205-200504

main71550-63030-B0iZCT1#..I200004-200205

main71550-63030-B1iACT10,ZCT1#..I200205-200504

71611PAD, REAR SEAT CUSHION

main71611-63010iACT10,ZCT1#..A200004-200205

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-63010iACT10,ZCT1#200004-200205

main71651-63020iACT10,ZCT1#200205-200504

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-63010iACT10,ZCT1#200004-200205

71778COVER, REAR SEAT SIDE HINGE MALE, RH

main71778-63010-B0iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

main71778-63010-B2iACT10,ZCT1#200205-200504

71779COVER, REAR SEAT SIDE HINGE MALE, LH

main71779-63010-B0iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

main71779-63010-B2iACT10,ZCT1#200205-200504

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-63010-B0iACT10,ZCT1#..I200205-200504

main71878-63010-B2iACT10,ZCT1#200205-200504

71879ACOVER, REAR SEAT RECLINING, INNER LH

main71879-63010-B0iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

main71879-63010-B2iACT10,ZCT1#200205-200504

71931ASUPPORT, REAR SEAT HEADREST

main71956-47010-B1×2iACT10,ZCT1#200205-200504

main71956-47010-B2×2iACT10,ZCT1#..I200205-200504

main71970-47010-B1×2iACT10,ZCT1#200205-200504

main71970-47010-B2iACT10,ZCT1#200004-200205

71940AHEADREST ASSY, REAR SEAT

main71940-63010-B1iACT10,ZCT1#..A200004-200108

main71940-63011-B2iACT10,ZCT1#..A200108-200205

main71940-63011-B3×2iZCT1#..A200205-200504

main71940-63020-B0iACT10,ZCT1#..I200004-200108

main71940-63021-B2iACT10,ZCT1#..I200108-200205

main71940-63021-B3×2iACT10,ZCT1#..I200205-200504

main71940-63030-B1×2iACT10,ZCT1#..I200205-200504

72030ADJUSTER ASSY, REAR NO.1 SEAT

main72030-63010iACT10,ZCT1#..A200004-200205

72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-63010-B0iACT10,ZCT1#200004-200205

LT.GRAY,TRIM1#

72124CCOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-63010-B0iACT10,ZCT1#200004-200205

LT.GRAY,TRIM1#

72345EPIPE, RECLINING CONNECTING

main72345-63010iACT10,ZCT1#200004-200205

main72345-63020iACT10,ZCT1#200205-200504

72510GADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH

main72510-63010iACT10,ZCT1#200205-200504

72520GADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH

main72520-63010iACT10,ZCT1#200004-200205

72530CADJUSTER ASSY, REAR RECLINING SEAT, INNER RH

main72530-63010iACT10,ZCT1#200004-200205

72540CADJUSTER ASSY, REAR RECLINING SEAT, INNER LH

main72540-63010iACT10,ZCT1#200004-200205

72637AHANDLE, REAR SEAT LOCK

main72637-13050-B0iACT10,ZCT1#200108-200205

main72637-13050-B1iACT10,ZCT1#200205-200504

main72637-52010-B1×2iACT10,ZCT1#200004-200108

DK.GRAY,TRIM1#

main72638-13020-B0iACT10,ZCT1#..I200205-200504

main72638-13020-B1iACT10,ZCT1#200205-200504

72749SPACER, REAR SEAT RECLINING

main72749-63010×2iACT10,ZCT1#200004-200205

9011908C37

main90119-08C37

9011910886

main90119-10886

9016740044

main90167-40044

91511B0812

main91511-B0812

9151581025

main91515-81025

37 parts on this diagram · 3 diagrams in section
