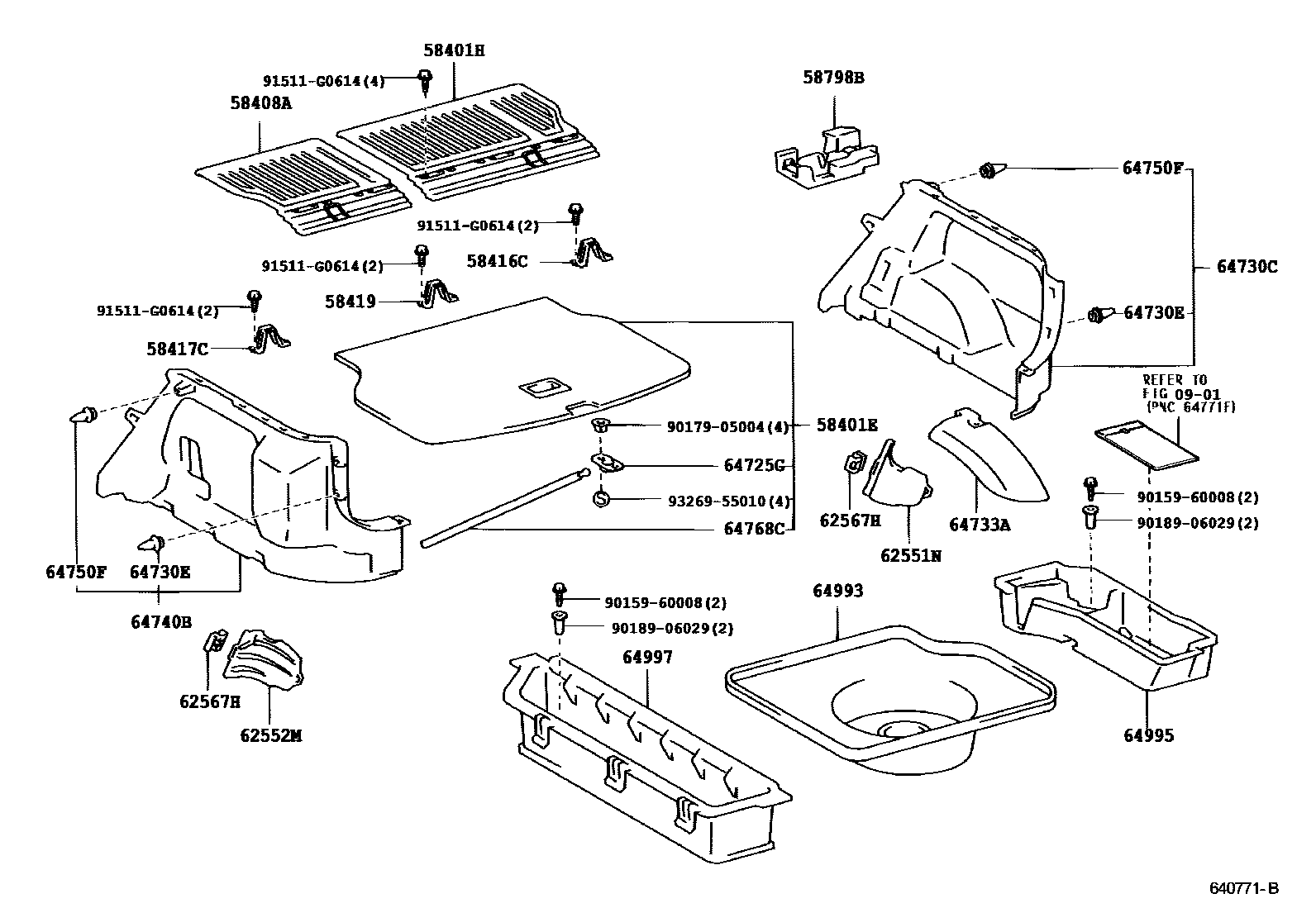

DECK BOARD & DECK TRIM COVER

0901STANDARD TOOL

→ Go to FIG 09-01

58401EBOARD SUB-ASSY, DECK

main58410-63010-B0iACT10,ZCT1#200004-200107

DARK GRAY,TRIM1#

main58410-63020-B1iACT10,ZCT1#200107-200205

DARK GRAY,TRIM1#

main58410-63020-B3iACT10,ZCT1#..I200205-200504

main58410-63020-B4iACT10,ZCT1#200205-200504

58401HBOARD SUB-ASSY, REAR FLOOR, NO.1

main58401-63010-B0iACT10,ZCT1#200004-200107

DARK GRAY,TRIM1#

main58401-63030-B1iACT10,ZCT1#200107-200205

DARK GRAY,TRIM1#

main58401-63030-B2iACT10,ZCT1#200205

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-63010-B0iACT10,ZCT1#200004-200107

DARK GRAY,TRIM1#

main58408-63030-B1iACT10,ZCT1#200107-200205

DARK GRAY,TRIM1#

main58408-63030-B2iACT10,ZCT1#200205

58416CBRACKET, DECK BOARD, NO.1 RH

main58416-63010iACT10,ZCT1#200205

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-63010iACT10,ZCT1#200205

58419BRACKET, DECK BOARD, NO.2

main58418-63010iACT10,ZCT1#200205

58798BCUSHION, JACK CARRIER

main58798-63010iACT10,ZCT1#200004-200205

62551NGARNISH, REAR SEAT SIDE, RH

main62551-63010-B0iACT10,ZCT1#200205

main62551-63010-B1iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

62552MGARNISH, REAR SEAT SIDE, LH

main62552-63010-B0iACT10,ZCT1#200205

main62552-63010-B1iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

62567HCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-32010×2iACT10,ZCT1#200205

64725GRETAINER, LUGGAGE ROOM BOX LID

main64725-44010-B0iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

64730CBOARD, DECK TRIM SIDE, RH

main64731-63010-B0iACT10,ZCT1#200004-200107

DARK GRAY,TRIM1#

main64731-63020-B1iACT10,ZCT1#200107-200205

DARK GRAY,TRIM1#

main64731-63020-B2iACT10,ZCT1#200205

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main67771-35010×4iACT10,ZCT1#200004-200205

64733APAD, DECK TRIM SIDE, NO.1

main64733-63010iACT10,ZCT1#200004-200205

64740BBOARD, DECK TRIM SIDE, LH

main64732-63010-B0iACT10,ZCT1#200004-200107

DARK GRAY,TRIM1#

main64732-63020-B1iACT10,ZCT1#200107-200205

DARK GRAY,TRIM1#

main64732-63020-B2iACT10,ZCT1#200205

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09158×2iACT10,ZCT1#200205

main90467-10167×2iACT10,ZCT1#200205

64768CSTOPPER, LUGGAGE ROOM BOX LID

main64768-63010iACT10,ZCT1#200004-200205

64993BOX, DECK FLOOR, REAR

main64993-63010iACT10,ZCT1#200205-200504

main64993-63010-B0iACT10,ZCT1#200004-200205

DK.GRAY,TRIM1#

64995BOX, DECK FLOOR, RH

main64995-63010iACT10,ZCT1#200004-200205

64997BOX, DECK FLOOR, LH

main64997-63010iACT10,ZCT1#200004-200205

9015960008

main90159-60008

9017905004

main90179-05004

9018906029

main90189-06029

91511G0614

main91511-G0614

9326955010

main93269-55010

26 parts on this diagram · 1 diagram in section
