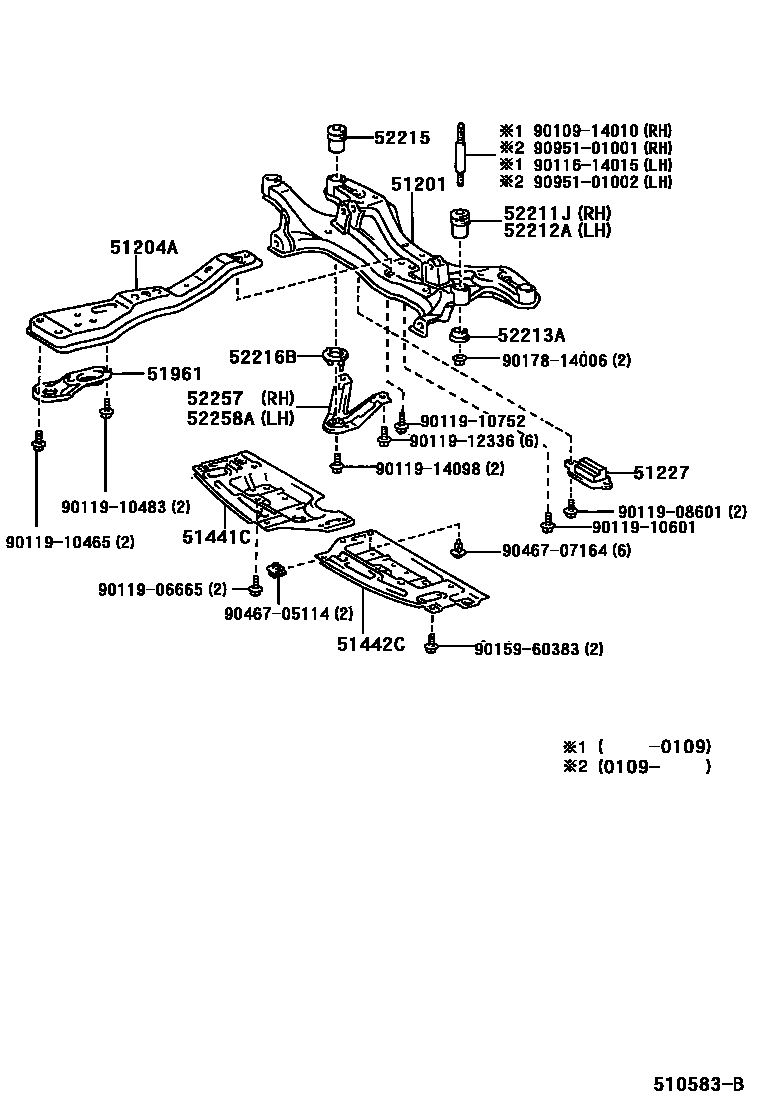

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32050iACT10,ZCT10200004-200205

main51201-32051iACT10,ZCT10200303

main51201-32060iZCT15200004-200205

main51201-32061iZCT15200303

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32060iZCT15200004-200205

main51204-32070iACT10,ZCT10200004-200205

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-32060iZCT10200004-200205

main51227-63010iACT10200205

51441CCOVER, ENGINE UNDER, RH

main51441-32070iACT10,ZCT1#200004-200205

51442CCOVER, ENGINE UNDER, LH

main51442-32110iACT10,ZCT1#200004-200205

51961HOOK, NO.1

main51963-32040iACT10,ZCT1#200004-200205

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-32020iACT10,ZCT1#200205

52212ACUSHION, BODY MOUNTING, NO.2

main52212-32020iACT10,ZCT1#200004-200109

main52212-32021iACT10,ZCT1#200109-200205

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-32010×2iACT10,ZCT1#200004-200205

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-32020×2iACT10,ZCT1#200004-200205

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-32020×2iACT10,ZCT1#200004-200205

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-63010iACT10,ZCT1#200004-200205

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-63010iACT10,ZCT1#200004-200205

9010914010

main90109-14010

9011614015

main90116-14015

9011906665

main90119-06665

9011908601

main90119-08601

9011910465

main90119-10465

9011910483

main90119-10483

9011910601

main90119-10601

9011910752

main90119-10752

9011912336

main90119-12336

9011914098

main90119-14098

9017814006

main90178-14006

9046705114

main90467-05114

9046707164

main90467-07164

9095101001

main90951-01001

9095101002

main90951-01002

28 parts on this diagram · 2 diagrams in section
