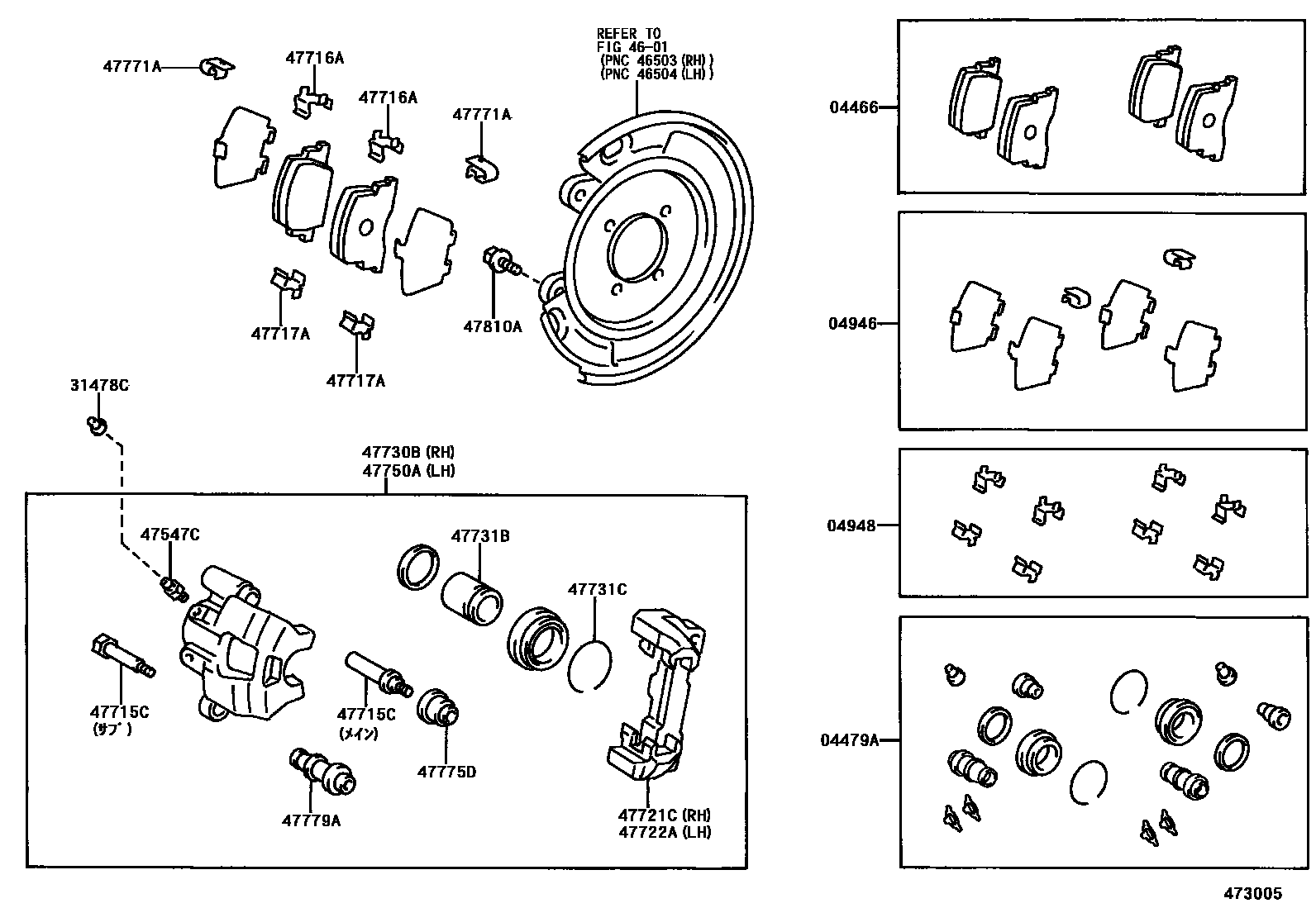

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-32040iACT10,ZCT1#..I200205

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-32120iACT10,ZCT1#..I200205

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32080iACT10,ZCT1#..I200205

04948FITTING KIT, DISC BRAKE, REAR

main04948-32040iACT10,ZCT1#..I200205

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iACT10,ZCT1#..I200205

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iACT10,ZCT1#..I200205

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020×2iACT10,ZCT1#..I200205

main47715-32030×2iACT10,ZCT1#..I200205

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32060×4iACT10,ZCT1#..I200205

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32060×4iACT10,ZCT1#..I200205

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-32150iACT10,ZCT1#..I200205

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-32150iACT10,ZCT1#..I200205

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-32170iACT10,ZCT1#..I200205

47731BPISTON, REAR DISC BRAKE

main47731-32060×2iACT10,ZCT1#..I200205

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43002×2iACT10,ZCT1#..I200205

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-32170iACT10,ZCT1#..I200205

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030×2iACT10,ZCT1#..I200205

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050×2iACT10,ZCT1#..I200205

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030×2iACT10,ZCT1#..I200205

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4iACT10,ZCT1#..I200205
