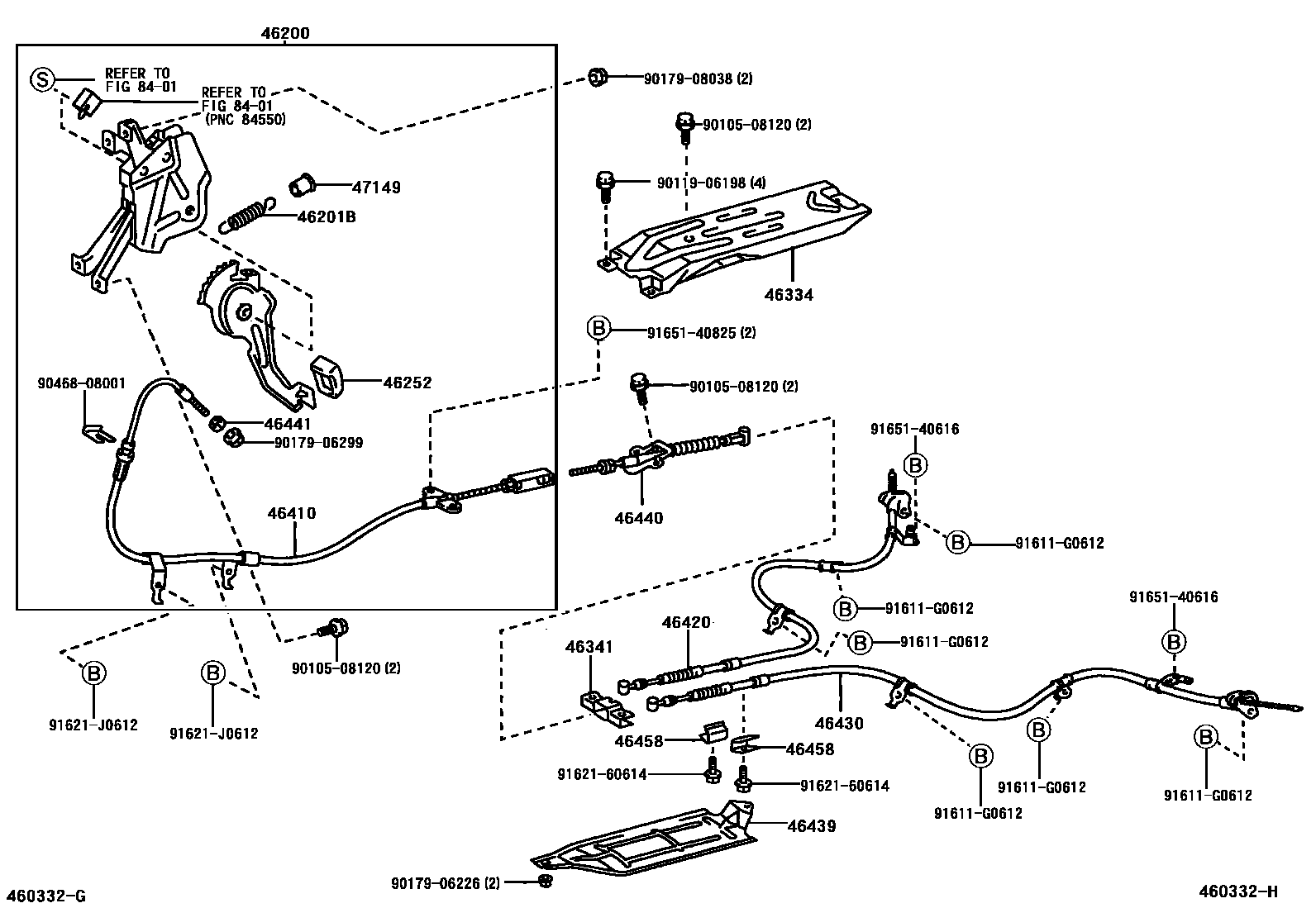

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1��(�� ����� ���-�)

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-63010iACT10,ZCT1#200205

46201BSPRING, TENSION

main90506-19005iACT10,ZCT1#200004-200205

46252PAD, PARKING PEDAL

main46252-63010iACT10,ZCT1#200004-200205

46334PROTECTOR, INTERMEDIATE LEVER

main46334-63010iACT10,ZCT1#200004-200205

main46334-63011iACT10,ZCT1#200205

46341EQUALIZER, PARKING BRAKE

main46341-12020iACT10,ZCT1#200004-200205

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-63010iACT10,ZCT1#200004-200205

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-32272iACT10,ZCT10..I200205

main46420-32282iZCT15..I200205

main46420-32290iZCT10200004-200011

main46420-32291iZCT10200205

main46420-63010iACT10200008-200011

main46420-63011iACT10200205

main46420-63020iZCT15200004-200205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-32272iACT10,ZCT10..I200205

main46430-32282iZCT15..I200205

main46430-32290iZCT10200004-200011

main46430-32291iZCT10200205

main46430-63010iACT10200008-200011

main46430-63011iACT10200205

main46430-63020iZCT15200205

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46408-63010iACT10,ZCT10200205

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-63010iACT10,ZCT1#200004-200205

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACT10,ZCT1#200205

main90170-06004iACT10,ZCT1#200004-200205

46458RETAINER, CABLE

main46458-28010×2iACT10,ZCT1#200004-200205

47149DAMPER, RETURN SPRING

main47149-22010iACT10,ZCT1#200004-200205

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508120

main90105-08120

9011906198

main90119-06198

9017906226

main90179-06226

9017906299

main90179-06299

9017908038

main90179-08038

9046808001

main90468-08001

91611G0612

main91611-G0612

9162160614

main91621-60614

91621J0612

main91621-J0612

9165140616

main91651-40616

9165140825

main91651-40825
