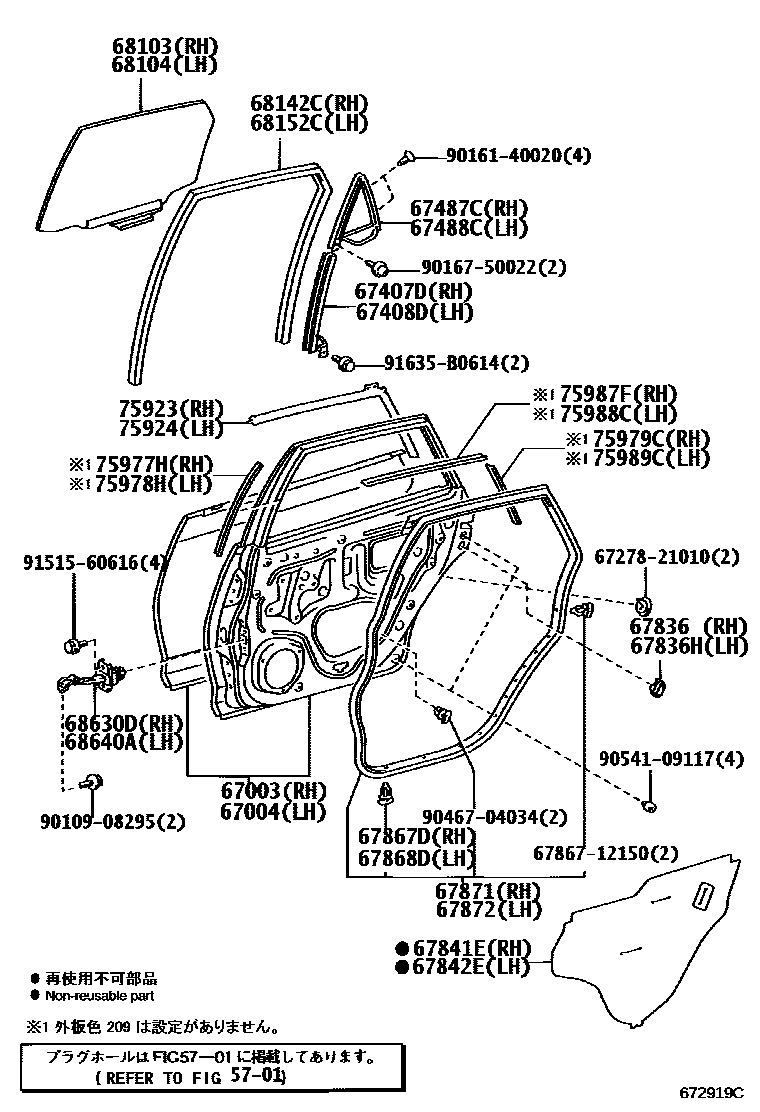

REAR DOOR PANEL & GLASS
5701HOLE PLUG
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923TAPE, BLACK OUT, NO.2 RH
75924TAPE, BLACK OUT, NO.2 LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75979CSTRIPE, REAR DOOR, OUTSIDE UPPER RH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988CSTRIPE, REAR DOOR, OUTSIDE LH
75989CSTRIPE, REAR DOOR, OUTSIDE UPPER LH
6727821010SPRING, FRONT DOOR VENTILATING HOLE COVER
main67278-21010
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9010908295
main90109-08295
9016140020
main90161-40020
9016750022
main90167-50022
9046704034
main90467-04034
9054109117
main90541-09117
9151560616
main91515-60616
91635B0614
main91635-B0614
38 parts on this diagram · 2 diagrams in section
