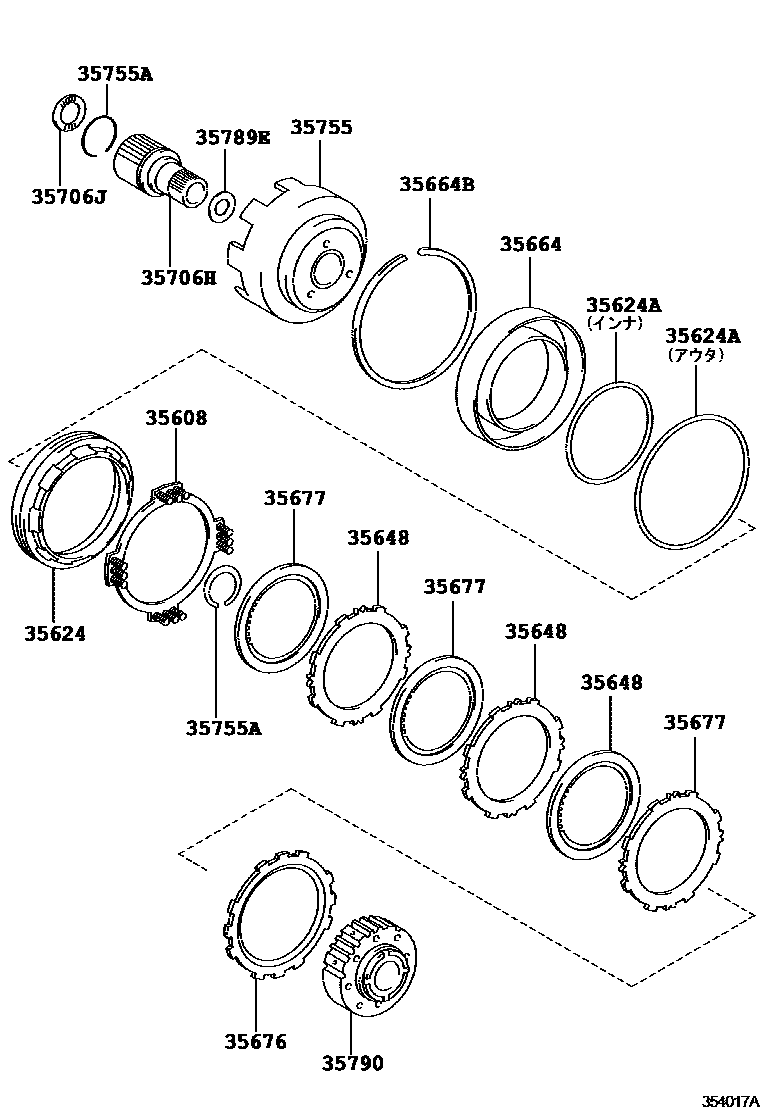

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A247E,A248F 0002 1U140F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-21010iST246200209-200501

main35608-32010iAZT24#200501

35624PISTON, 2ND BRAKE

main35624-12020iAZT24#200501

main35624-21010iST246200209-200501

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99093iST246200209-200501

main90301-99095iST246200209-200501

main90301-99100iAZT24#200209-200501

main90301-99132iAZT24#200501

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-21020×3iAZT24#200209-200501

main35691-21010×4iST246200209-200501

35664CYLINDER, 2ND BRAKE

main35664-12010iAZT24#200209-200501

main35664-33010iST246200501

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iAZT24#200209-200501

main90520-99027iST246200501

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12010iAZT24#200501

main35676-12040iAZT24#200209-200501

main35676-12050iAZT24#200209-200501

main35676-12060iAZT24#200501

main35676-12070iAZT24#200501

main35676-21010iST246200209-200501

main35676-21020iST246200209-200501

main35676-21070iST246200209-200501

main35676-21080iST246200209-200501

main35676-21090iST246200501

main35676-21100iST246200209-200501

main35676-21110iST246200501

main35676-21120iST246200209-200501

main35676-21130iST246200209-200501

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-28030×3iAZT24#200209-200501

main35681-21010×4iST246200501

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iAZT24#200501

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iAZT24#200209-200501

main90374-38002iST246200209-200501

35755DRUM, SUN GEAR INPUT

main35755-20020iAZT24#200209-200501

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAZT24#200209-200501

main90520-46010iAZT24#200209-200501

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAZT24#200209-200501

35790CLUTCH ASSY, 1 WAY

main35790-21010iST246200501

main35790-44010iAZT24#200209-200501
