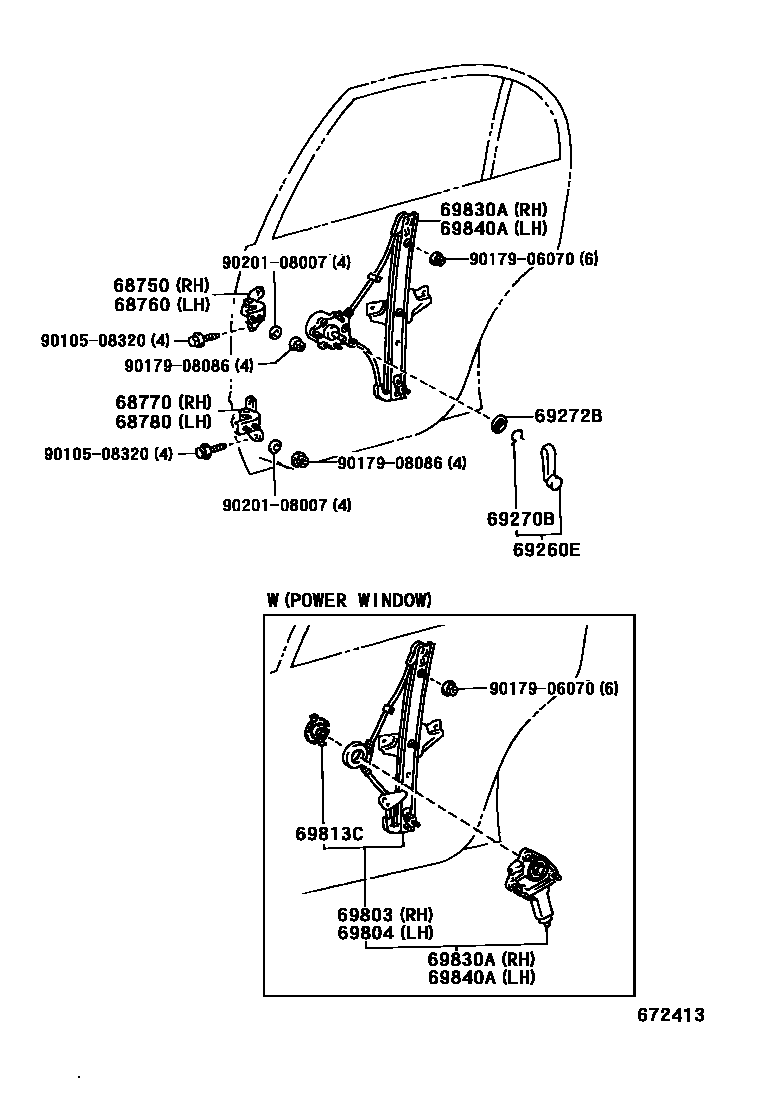

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20100iAT191,CT19#,ET196,ST19#199211

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20100iAT191,CT19#,ET196,ST19#199211

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20080iAT191,CT19#,ET196,ST19#199211

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20090iAT191,CT19#,ET196,ST19#199211

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-20090-B1×2iCT196,197,198,199,ET196,ST198..U,UL199402

SHADOW GRAY,TRIM1#

main69260-20090-C0×2iCT196,198,ET196..U,UL199211-199402

BLACK,TRIM2#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iCT196,198,ET196..U,UL199211-199601

main90520-01274×2iCT196,197,198,199,ET196,ST198..U,UL199601

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iCT196,198,ET196..U,UL199211-199402

NATURAL WHITE,TRIM2#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-20220iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-20220iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69813-32010×2iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211-199505

main69813-32040iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199505

main69814-32010iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199505

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-20260iCT196,197,198,199,ET196,ST198..U,UL199211

main69830-20270iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211-199601

main69830-21010iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-20250iCT196,197,198,199,ET196,ST198..U,UL199211

main69840-20260iCT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX199211-199601

main69840-21010iAT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX199601

9010508320

main90105-08320

9017906070

main90179-06070

9017908086

main90179-08086

9020108007

main90201-08007

16 parts on this diagram · 1 diagram in section
