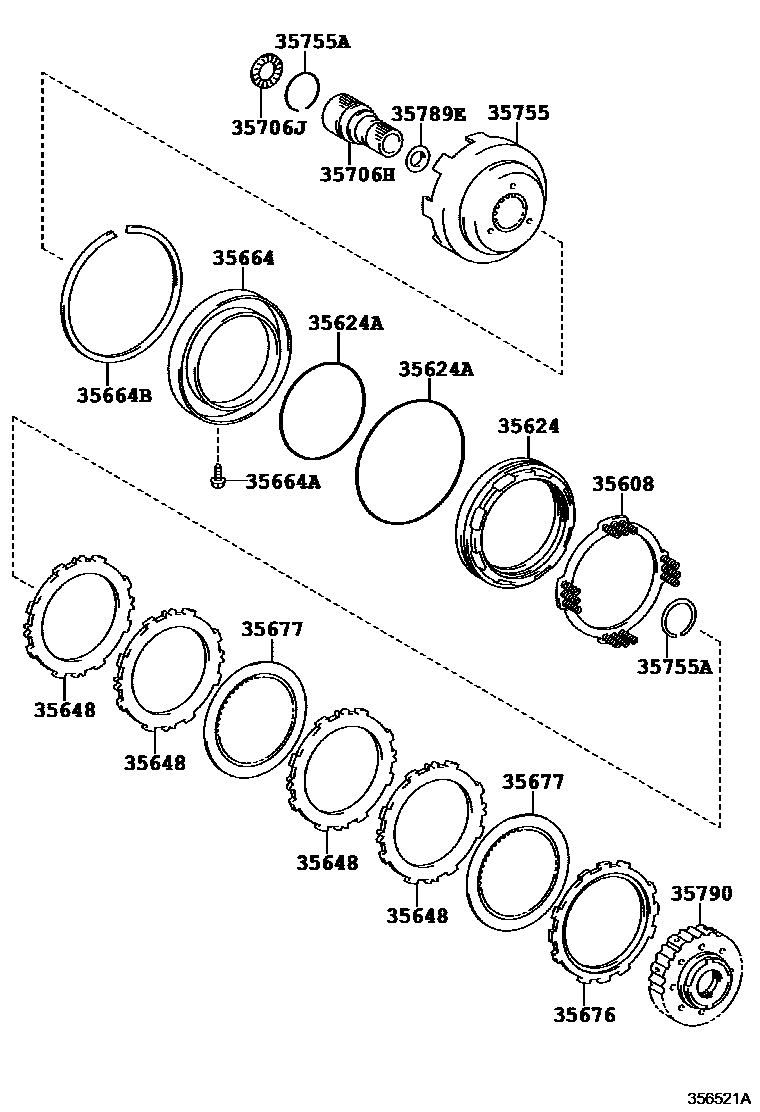

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A132L,A241E,A241L,A540H 0003 1A540H 0005 1A245E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35624PISTON, 2ND BRAKE

main35624-32010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

main90301-99023iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-12010×3iAT191..4FC199601-199708

main35648-32010×4iCT190,196,ET196..ATM; ST19#..4FC199211-199601

35664CYLINDER, 2ND BRAKE

main35664-32010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iCT190,196,197,ET196,ST19#..ATM199211-200206

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iAT191..4FC199601-199708

main90521-99013iCT190,196,197,ET196,ST19#..ATM199211-200206

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iCT197,ET196,ST198..ATM199904-200206

main35676-32010iCT197..4FC199810-199904

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12070×3iAT191..4FC199601-199708

main35677-20050×2iCT190,196..4FC; ST190,191..4FC199211-199601

main35677-30040×2iET196..3FC199211-200012

main35677-32031×2iET196..3FC200012-200206

main35677-33020×3iST195..4FC199211-199501

main35677-33021×3iST195,198..4FC199501

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iAT191,CT190,196,197,ET196,ST19#..ATM199212-200206

main35706-32030iST195..4FC199211-199212

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iAT191..4FC199601-199708

main90374-30006iCT190,196,197,ET196,ST19#..ATM199211-200206

35755DRUM, SUN GEAR INPUT

main35755-20020iAT191..4FC199601-199708

main35755-32020iCT190,196,197,ET196,ST19#..ATM199211-200206

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

main90520-46010iAT191..4FC199606-199708

main90520-47003iAT191,CT190,196,ET196,ST19#..ATM199211-199606

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35790CLUTCH ASSY, 1 WAY

main35790-32050iAT191,CT190,196,197,ET196,ST19#..ATM199211-200110

main35790-44010iCT197,ET196,ST198..ATM200110-200206

15 parts on this diagram · 3 diagrams in section
