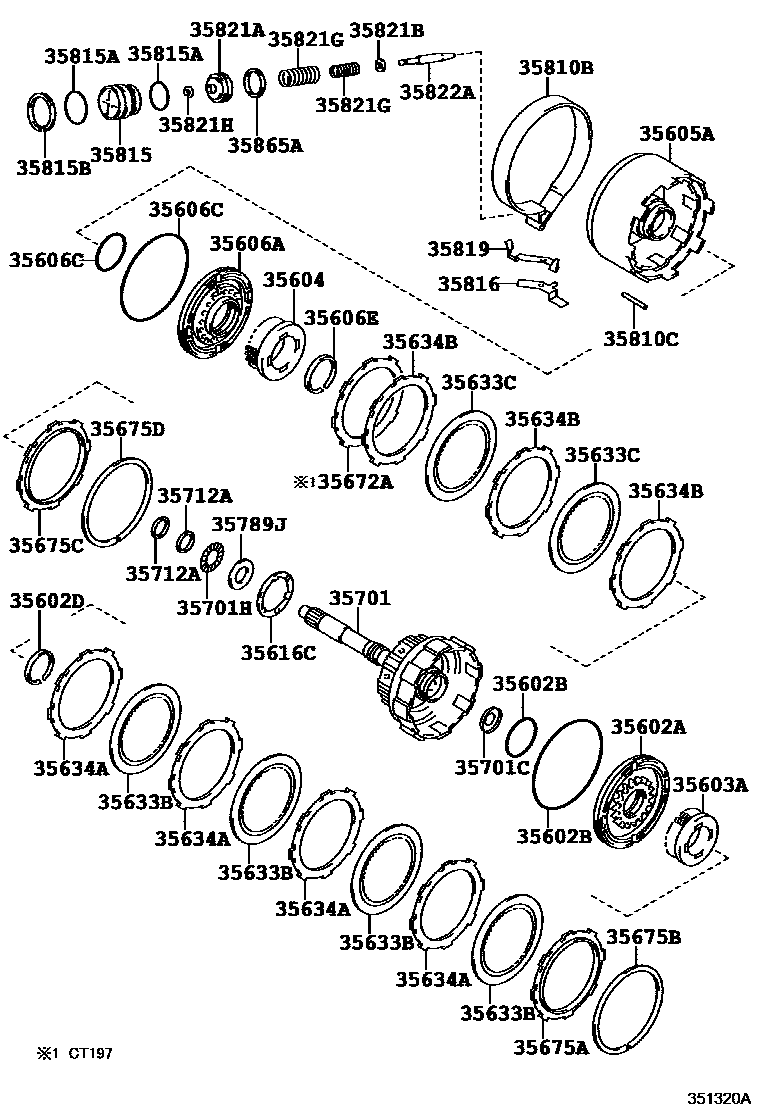

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A132L,A241E,A241L 0003 1A540H 0005 1A245E

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-12060iAT191..4FC199601-199708

main35602-12070iCT190,196,197,ET196,ST191..ATM199706-200206

main35602-32050iST195,198..4FC199706

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-46002iCT190,196,197,ET196,ST19#..ATM199211-200206

main90301-49006iAT191..4FC199601-199708

main90301-99016iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-44001iCT190,196,197,ET196,ST19#..ATM199211-200206

main90520-47009iAT191..4FC199601-199708

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-12020iAT191..4FC199601-199708

main35603-12030iCT190,196,197,ET196,ST191..ATM199706-200206

main35603-32030iET196,ST195..ATM199601-199706

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-12010iAT191..4FC199601-199708

main35604-32010iCT190,196,197,ET196,ST19#..ATM199211-200206

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-12030iET196..3FC199211-199601

main35605-17020iCT190,196,197,ST19#..4FC199211-200002

main35605-20020iET196..3FC199601-200206

main35605-20030iAT191..4FC199601-199708

main35605-32060iST198200002-200106

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-20010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-57188iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

main90301-99016iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-52002iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-12020iAT191..4FC199601-199708

main35616-12030iCT197..4FC199811

main35616-32021iCT190,196,197,ET196,ST19#..ATM199211-199811

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-12040×3iET196..3FC199211-199706

main35633-12060iST190,191..4FC199402-199601

main35633-16020×3iET196..3FC199706-200206

main35633-32050×4iCT190,196,ST195..4FC199402-199601

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35633-12070×2iCT197..4FC199805

main35633-20020×3iCT190,196,ST190,191..4FC199211-199712

main35633-20030×2iET196..3FC199211-199307

main35633-20031×2iET196..3FC199307-200206

main35633-20040×3iST195,198..4FC199312

main35633-20050×3iAT191..4FC199601-199708

main35633-21020×3iCT196..4FC199712-199805

main35633-32031×3iST195..4FC199211-199307

main35633-32032×3iST195..4FC199307-199312

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-12030×4iAT191..4FC199601-199708

main35634-12040×4iCT190,196,ST195..4FC; ST190,191..4FC199402-199601

main35634-32010×4iST195..4FC199211-199307

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-12020×3iAT191..4FC199601-199708

main35634-12040×3iCT190,196,197,ET196,ST19#..ATM199307-200206

main35634-32010×3iCT190,196,ET196,ST19#..ATM199211-199307

35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)

main35672-20010iCT197..4FC199805

35675AFLANGE, FORWARD CLUTCH

main35635-30060iCT197,ET196,ST198..ATM200101-200206

main35635-50030iAT191,CT190,196,197,ET196,ST19#..ATM199211-200101

main35635-50040iCT190,196,ET196,ST190,191..ATM199504-199512

main35675-12010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

main35675-17010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

main35675-32010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

main35675-32060iCT190,196,ET196,ST190,191..ATM199504-199512

main35675-32061iAT191,CT190,196,197,ET196,ST19#..ATM199512-200206

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90521-99001iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35675CFLANGE, DIRECT CLUTCH

main35675-12010iAT191,ET196..ATM199211-200002

main35675-17010iAT191,CT197,ST195,198..4FC199211

main35675-32010iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

main35675-32020iET196..3FC199211-199512

main35675-32030iAT191,CT190,196,197,ST19#..4FC199211

main35675-32061iET196..3FC199512-200206

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90520-99037iET196,ST195,198..ATM199704-200002

main90521-99001iCT190,196,ST19#..4FC; ET196..3FC199211-199601

35701SHAFT SUB-ASSY, INPUT

main35701-12030iAT191..4FC199601-199708

main35701-12070iET196..3FC199812-200206

main35701-20010iST190,191..4FC199211-199303

main35701-32021iET196..3FC199211-199812

main35701-32031iCT190,196,ST195..4FC199211-199303

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-32040iCT190,196,197,ET196,ST19#..ATM199211-200206

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-28005iCT190,196,197,ET196,ST19#..ATM199211-200206

main90374-30011iAT191..4FC199601-199708

main90374-30012iAT191..4FC199601-199708

main90374-30013iAT191..4FC199601-199708

35712ARING, INPUT SHAFT OIL SEAL

main35712-32010×2iCT190,196,ET196,ST195..ATM; ST190,191..4FC199402-199601

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-32010iCT190,196,197,ET196,ST19#..ATM199211-200206

35810BBAND ASSY, 2ND COAST BRAKE

main35810-32020iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main35810-32040iST195,198..4FC199211

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90250-07001iCT190,196,197,ET196,ST19#..ATM199211-200206

main90250-07003iAT191..4FC199601-199708

35815COVER, 2ND COAST BRAKE

main35815-12020iAT191..4FC199601-199708

main35815-32010iCT190,196,197,ET196,ST190,191..ATM199211-200206

main35815-32020iST195,198..4FC199211

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-41002×2iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main90301-52003×2iST195,198..4FC199211

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-48003iAT191..4FC199601-199708

main90521-53001iCT190,196,197,ET196,ST190,191..ATM199211-200206

main90521-63001iST195,198..4FC199211

35816RETAINER, BRAKE BAND GUIDE PLATE

main35816-12010iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200111

main35816-32010iST195,198..4FC199211-200111

35819PLATE, 2ND COAST BRAKE BAND GUIDE

main35819-12010iET196,ST195,198..ATM199211-200206

main35819-12020iCT190,196,197,ST190,191..4FC199211

main35819-12030iAT191..4FC199601-199708

35821APISTON, 2ND COAST BRAKE

main35821-32010iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main35821-32020iST195,198..4FC199211

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06014iST195,198..4FC199211

main90201-06557iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-20051iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main90501-24011iST195,198..4FC199211

main90501-25025iST195,198..4FC199211

main90501-26024iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iAT191,CT190,196,197,ET196,ST19#..ATM199211-200206

35822AROD, 2ND COAST BRAKE PISTON

main35822-32010iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main35822-32020iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main35822-32030iST195,198..4FC199211

main35822-32040iST195,198..4FC199211

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-32010iAT191,CT190,196,197,ET196,ST190,191..ATM199211-200206

main35865-32020iST195,198..4FC199211

37 parts on this diagram · 3 diagrams in section
