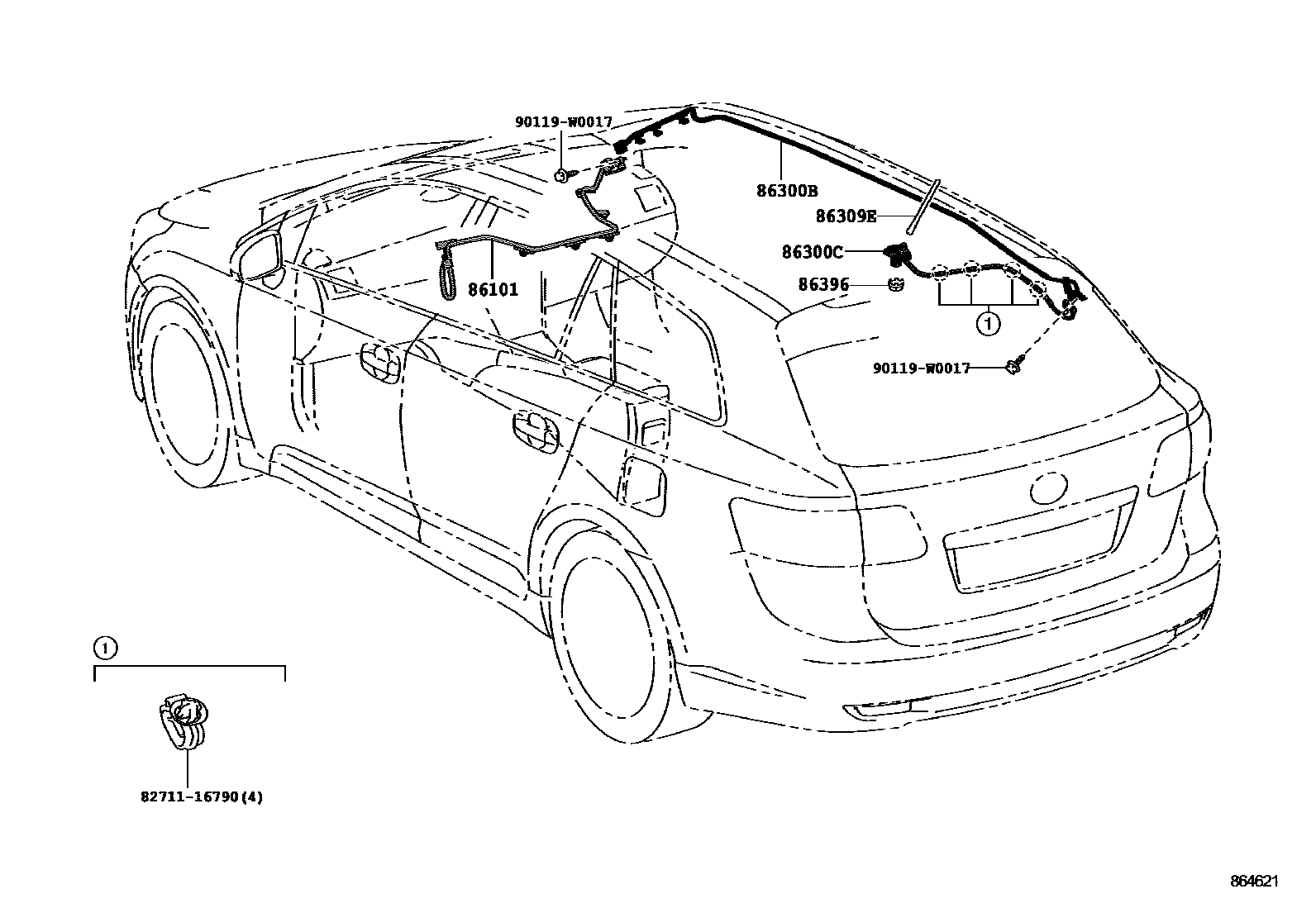

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-05320iZRT272201107-201111

main86101-05390iZRT272201507

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86101-05310iZRT272201107-201111

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-05210iZRT272201107-201111

main86300-05280iZRT272201303-201505

main86300-05290-A0iZRT272201507

SUPER WHITE 2,040

main86300-05290-B0iZRT272201507

SILVER ME.,1F7

main86300-05290-C0iZRT272201507

BLACK MC.,209

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42070iZRT272201107-201111

86396NUT, ANTENNA

main86396-47010iZRT272201107-201111

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

90119W0017

main90119-W0017

7 parts on this diagram · 2 diagrams in section
