ENGINE OVERHAUL GASKET KIT

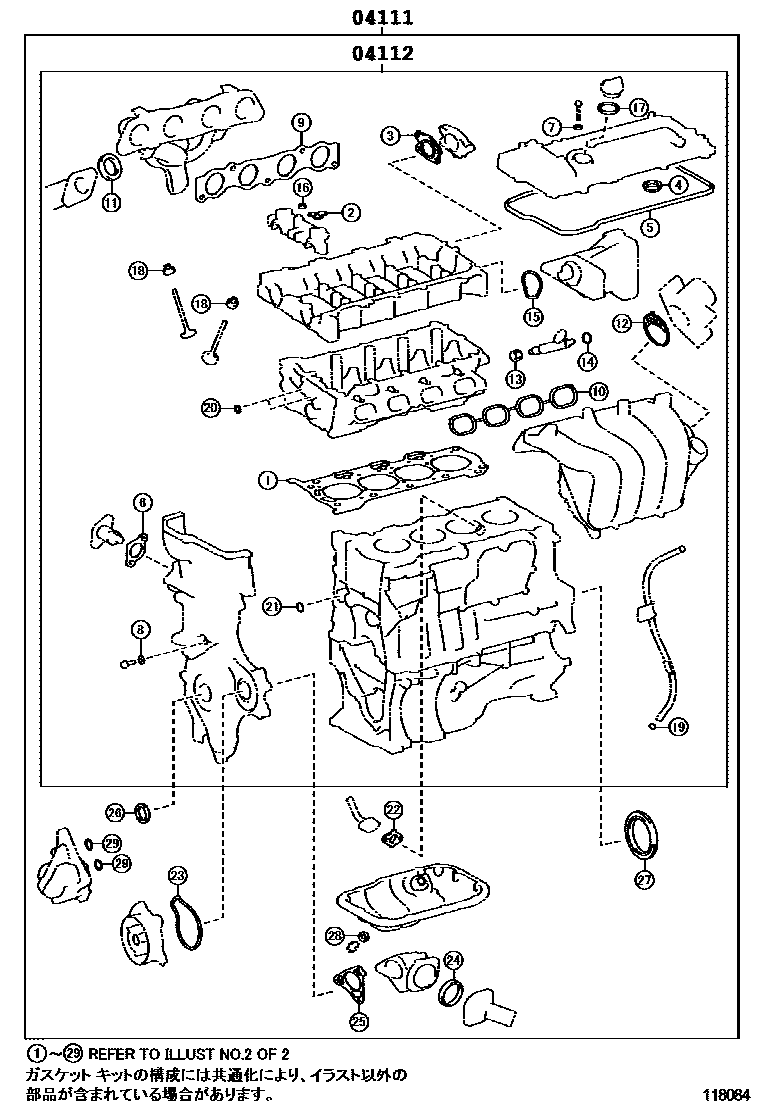

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-37201i201107-201110

main04111-37203i201110-201111

main04111-37204i201203-201502

main04111-37205i201502-201505

main04111-37423i201507

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37221i201107-201110

main04112-37222i201110-201111

main04112-37223i201203-201502

main04112-37224i201502-201505

2 parts on this diagram · 2 diagrams in section
