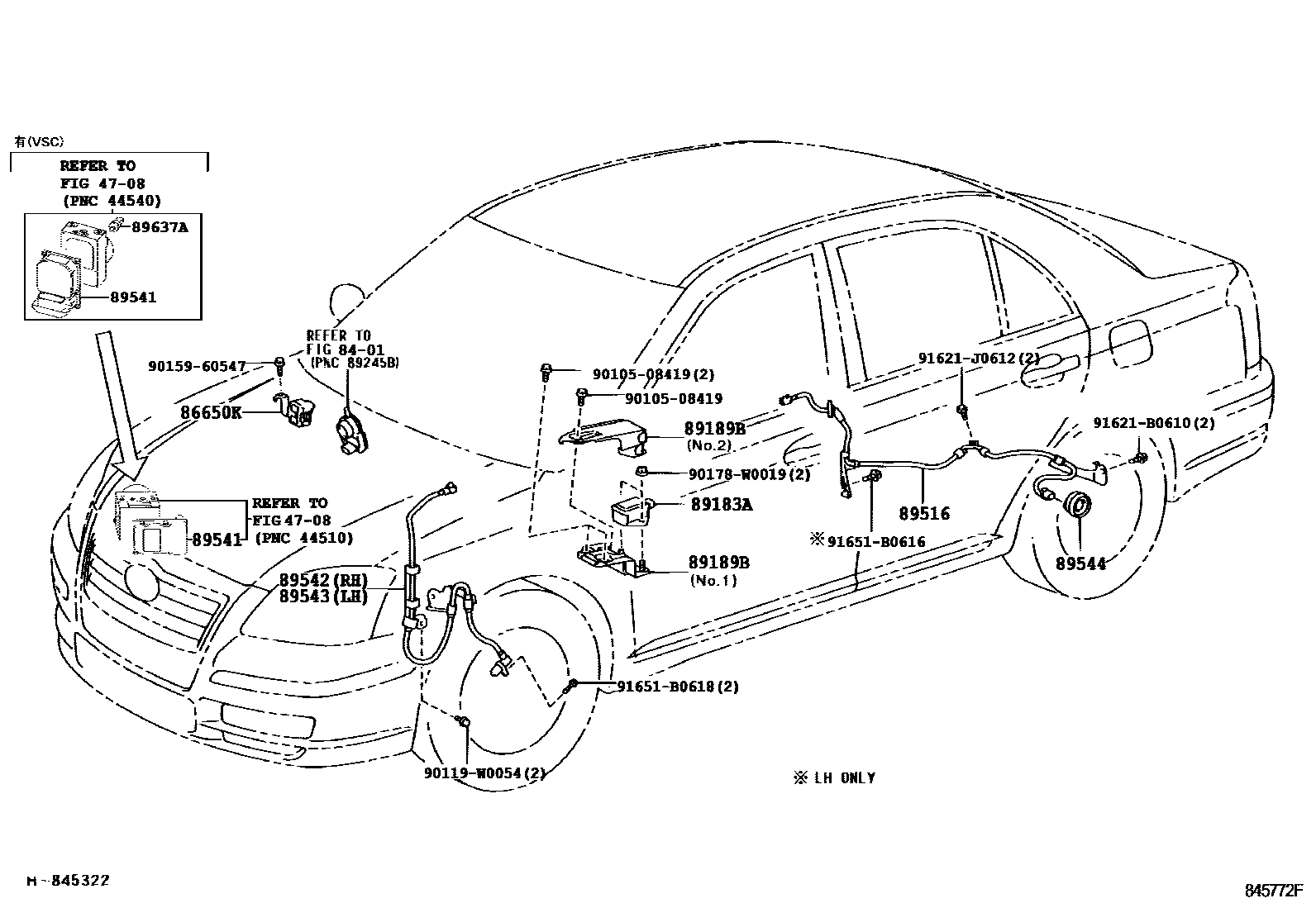

ABS & VSC

0001 1 0002 1

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86650-13010iAZT250,251200606

89183ASENSOR, YAWRATE

main89183-02020iAZT25#200606

main89183-05020iAZT25#200307-200606

89189BBRACKET, YAWRATE SENSOR

main89189-20040iAZT250,251200606

main89189-20050iAZT25#200307-200606

main89189-20070iAZT255200606

89516WIRE, SKID CONTROL SENSOR

main89516-05010iAZT250,251200307-200606

main89516-05030iAZT250,251200307-200606

89541COMPUTER, SKID CONTROL

main89541-05072iAZT250200307-200402

main89541-05073iAZT250200402-200503

main89541-05080iAZT255200606

main89541-05090iAZT250,251200503-200606

main89541-05130iAZT250,251200606

main89541-05062iAZT250..XI200411-200506

89542SENSOR, SPEED, FRONT RH

main89542-02040iAZT250,251200606

main89542-20170iAZT255200606

89543SENSOR, SPEED, FRONT LH

main89543-02040iAZT250,251200307-200606

main89543-20170iAZT255200309-200606

89544SENSOR, SKID CONTROL

main89544-02010×2iAZT250,251200307-200507

main89544-32040×2iAZT250,251200507-200606

89637ASENSOR, OIL PRESSURE

main89637-07010iAZT250,251200307-200606

9010508419

main90105-08419

90119W0054

main90119-W0054

9015960547

main90159-60547

90178W0019

main90178-W0019

91621B0610

main91621-B0610

91621J0612

main91621-J0612

91651B0616

main91651-B0616

91651B0618

main91651-B0618

19 parts on this diagram · 2 diagrams in section
