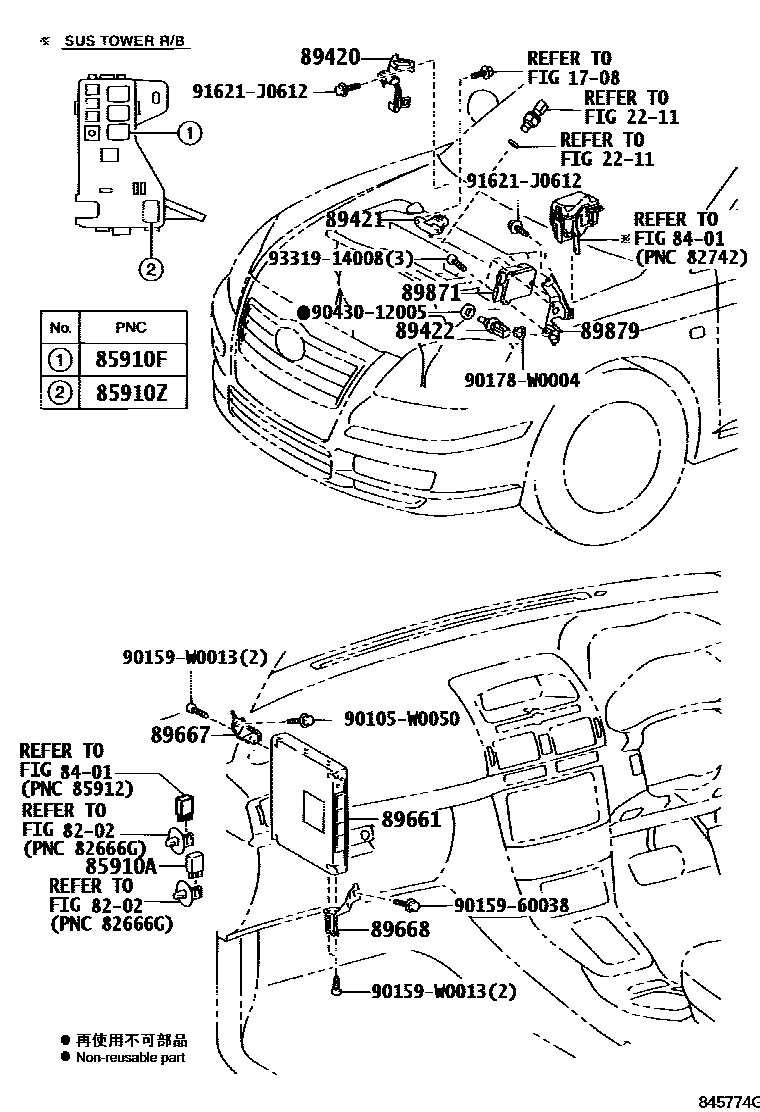

ELECTRONIC FUEL INJECTION SYSTEM

1708VACUUM PIPING

→ Go to FIG 17-08

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87019iAZT25#200606

85910FRELAY, COMPUTER (FOR EFI)

main90080-87019iAZT25#200307-200606

85910ZRELAY, INJECTION (FOR EFI)

main90080-87019iAZT25#200307-200606

89420SENSOR ASSY, VACUUM

main89420-20370iAZT25#200606

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-20190iAZT25#200307-200606

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAZT250,255200307-200606

main89422-35010iAZT251200506-200606

89661COMPUTER, ENGINE CONTROL

main89661-05A30iAZT251200506-200606

main89661-2G360iAZT250200307-200505

main89661-2G361iAZT250200606

main89661-2G370iAZT255200309-200503

main89661-2G371iAZT255200504-200505

main89661-2G372iAZT255200506-200606

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-05070iAZT251200506-200606

main89667-05090iAZT250,255200307-200606

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-05100iAZT251200506-200606

main89668-05120iAZT250,255200307-200606

89871DRIVER, INJECTOR

main89871-20040iAZT25#200307-200606

main89871-28010iAZT25#200606

89879BRACKET, INJECTOR DRIVER

main89879-20110iAZT25#200307-200606

90105W0050

main90105-W0050

9015960038

main90159-60038

90159W0013

main90159-W0013

90178W0004

main90178-W0004

9043012005

main90430-12005

91621J0612

main91621-J0612

9331914008

main93319-14008

22 parts on this diagram · 1 diagram in section
