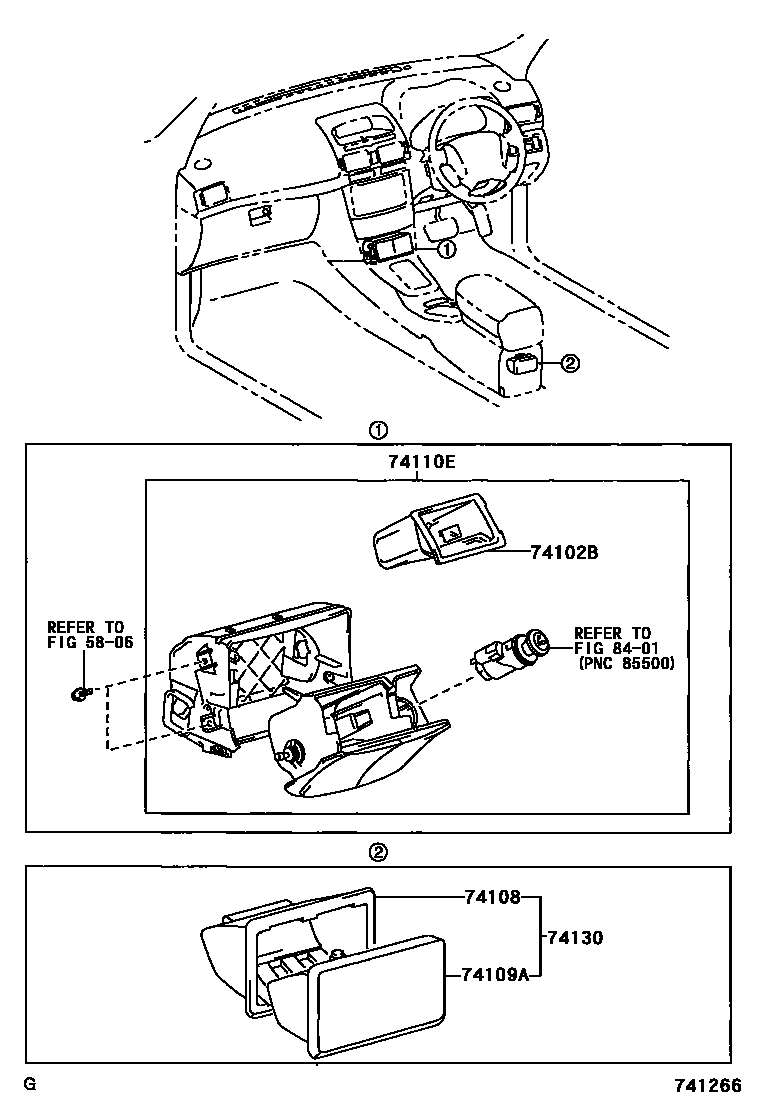

ASH RECEPTACLE

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-05060iAZT25#..XI; AZT250..LI200307-200407

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02010iAZT25#200307-200606

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-05020-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main74109-05020-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main74109-05020-E0iAZT251200606

GREGE,TRIM4#

74110ERECEPTACLE ASSY, FRONT ASH

main74110-05020iAZT25#..XI; AZT250..LI200307-200408

main74110-05021iAZT250,255;AZT251..SED200606

main74110-05050iAZT251..WG200606

main74110-05030iAZT250..LI200307-200408

main74110-05031iAZT250..LI200408-200508

74130RECEPTACLE ASSY, REAR ASH

main74130-05020-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main74130-05020-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main74130-05020-E0iAZT251200606

GREGE,TRIM4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7 parts on this diagram · 1 diagram in section
