51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050i200307-200606

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040i200307-200606

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-02030i200307-200502

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-05010i200307-200606

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-05060i200307-200503

main57101-05061i200503-200509

main57101-05090i200509-200606

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-05050i200307-200509

main57102-05070i200509-200606

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-05010i200307-200502

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-05010i200307-200606

57111MEMBER, FRONT SIDE, RH

main57111-05020i200307-200503

main57111-05021i200503-200606

57112MEMBER, FRONT SIDE, LH

main57112-05030i200307-200606

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-05020i200307-200606

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-05020i200307-200606

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-02010i200307-200502

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-02010i200307-200606

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-05020i200307-200502

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-05020i200307-200606

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-05010i200307-200502

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-05010i200606

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020i200307-200606

57197BOX, TORQUE, FRONT RH

main57197-02010i200307-200502

57198BOX, TORQUE, FRONT LH

main57198-02030i200307-200606

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-05020i200307-200502

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-05020i200307-200606

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-05050i200307-200606

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-05050i200307-200606

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-05080i200606

main57601-05090i200606

main57601-05900i200307-200402

main57601-05903i200402-200509

main57601-05904i200309-200509

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-05100i200509-200606

main57602-05110i200606

main57602-05900i200307-200402

main57602-05903i200402-200606

main57602-05904i200309-200509

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02050i200307-200606

main57605-20200i200606

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-05060i200307-200606

main57606-21100i200309-200606

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-05010i200307-200606

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57603-05010i200606

main57615-05901i200307-200606

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57604-05010i200606

main57616-05901i200307-200606

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-05010i200606

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

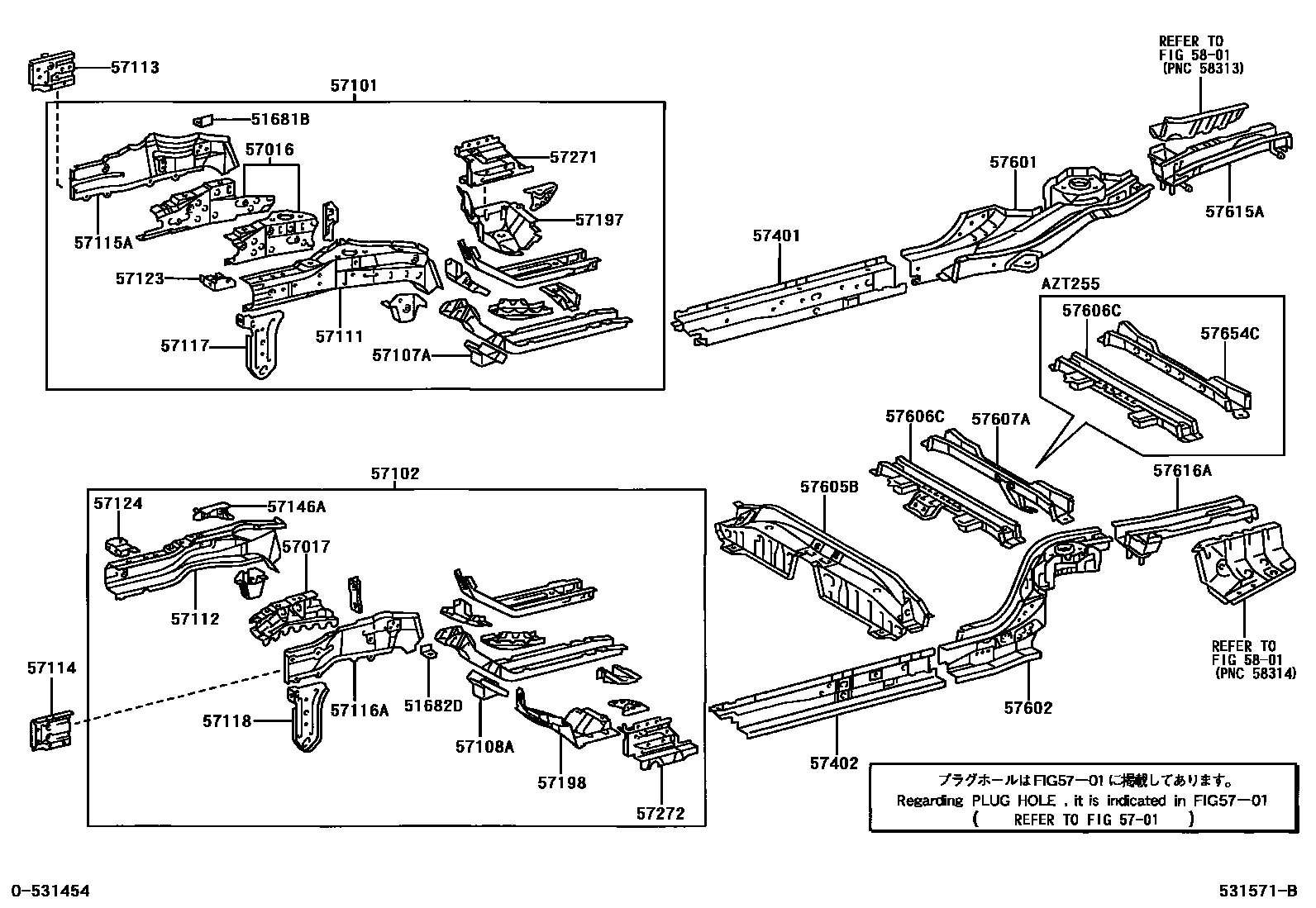

FLOOR SIDE MEMBER
