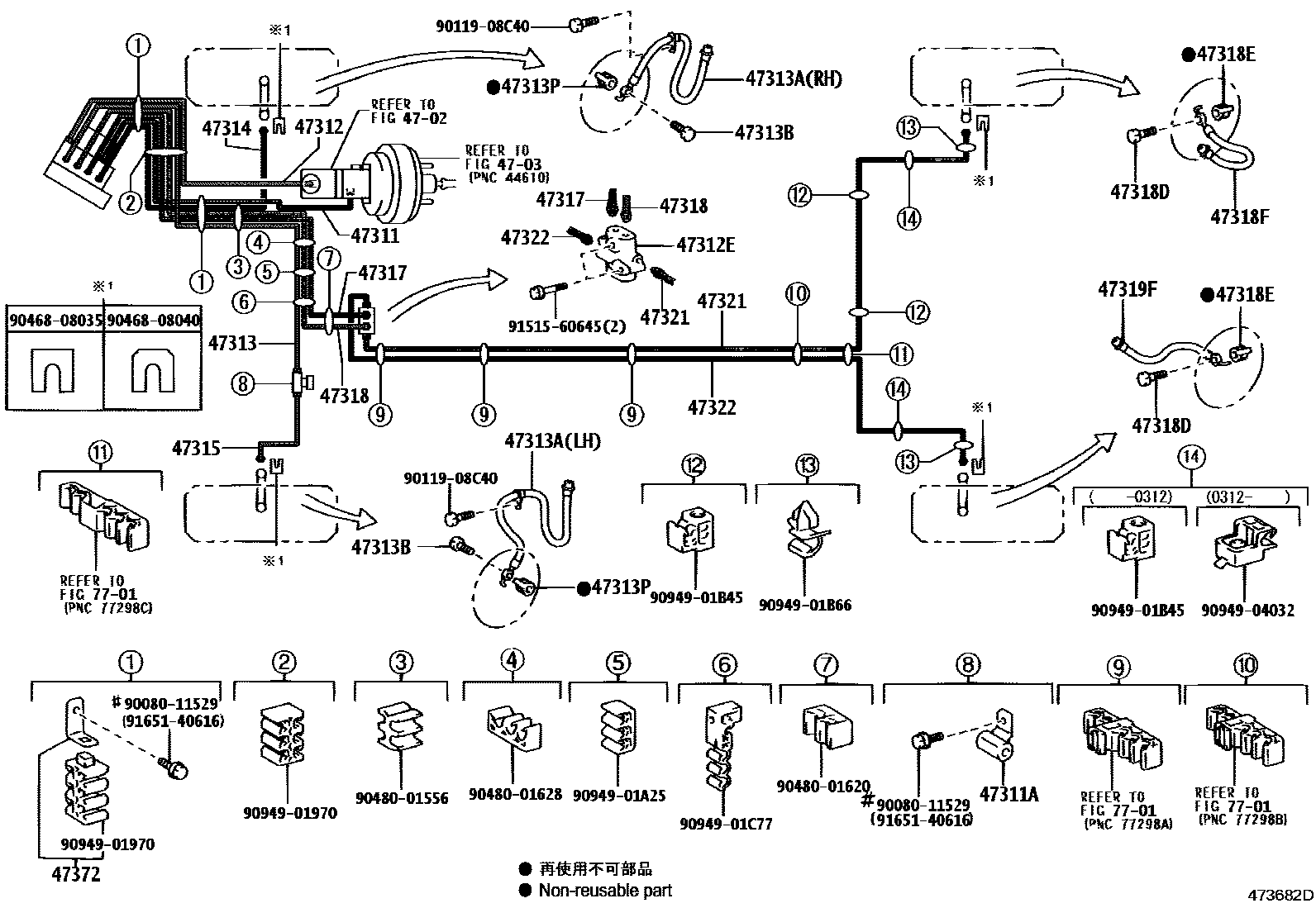

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1��(VSC) 0004 1 0006 1��(VSC)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47311TUBE, FRONT BRAKE, NO.1

main47311-05180iAZT255200606

main47311-05210iAZT250,251200606

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10227iAZT25#200606

main90412-10667iAZT25#200307-200501

47312TUBE, FRONT BRAKE, NO.2

main47312-05040iAZT255200309-200606

main47312-05050iAZT250,251200307-200606

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12082iAZT25#200606

47313TUBE, FRONT BRAKE, NO.3

main47313-05160iAZT255200309-200606

main47313-05180iAZT250,251200307-200606

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94199iAZT25#200307-200602

main90080-94200iAZT25#200307-200602

main90947-02D22iAZT25#200606

main90947-02D23iAZT25#200606

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAZT25#200307-200606

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAZT25#200307-200606

47314TUBE, FRONT BRAKE, NO.4

main47314-05090iAZT255200309-200606

main47314-05100iAZT250,251200606

47315TUBE, FRONT BRAKE, NO.5

main47315-02160iAZT25#200307-200606

47317TUBE, FRONT BRAKE, NO.7

main47317-05090iAZT255200309-200606

main47317-05110iAZT250,251200307-200606

47318TUBE, FRONT BRAKE, NO.8

main47318-05090iAZT255200309-200606

main47318-05110iAZT250,251200606

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAZT25#200307-200606

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iAZT25#200307-200606

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E85iAZT25#200307-200606

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E85iAZT25#200307-200606

47321TUBE, REAR BRAKE, NO.1

main47321-05070iAZT250,251200606

main47321-05080iAZT255200309-200606

47322TUBE, REAR BRAKE, NO.2

main47322-05070iAZT250,251200307-200606

main47322-05080iAZT255200309-200606

47372CLAMP, BRAKE TUBE, NO.2

main47374-12050×2iAZT255200309-200606

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008011529

main90080-11529

9011908C40

main90119-08C40

9046808035

main90468-08035

9046808040

main90468-08040

9048001556

main90480-01556

9048001620

main90480-01620

9048001628

main90480-01628

9094901970

main90949-01970

9094901A25

main90949-01A25

9094901B45

main90949-01B45

9094901B66

main90949-01B66

9094901C77

main90949-01C77

9094904032

main90949-04032

9151560645

main91515-60645

9165140616

main91651-40616

37 parts on this diagram · 5 diagrams in section
