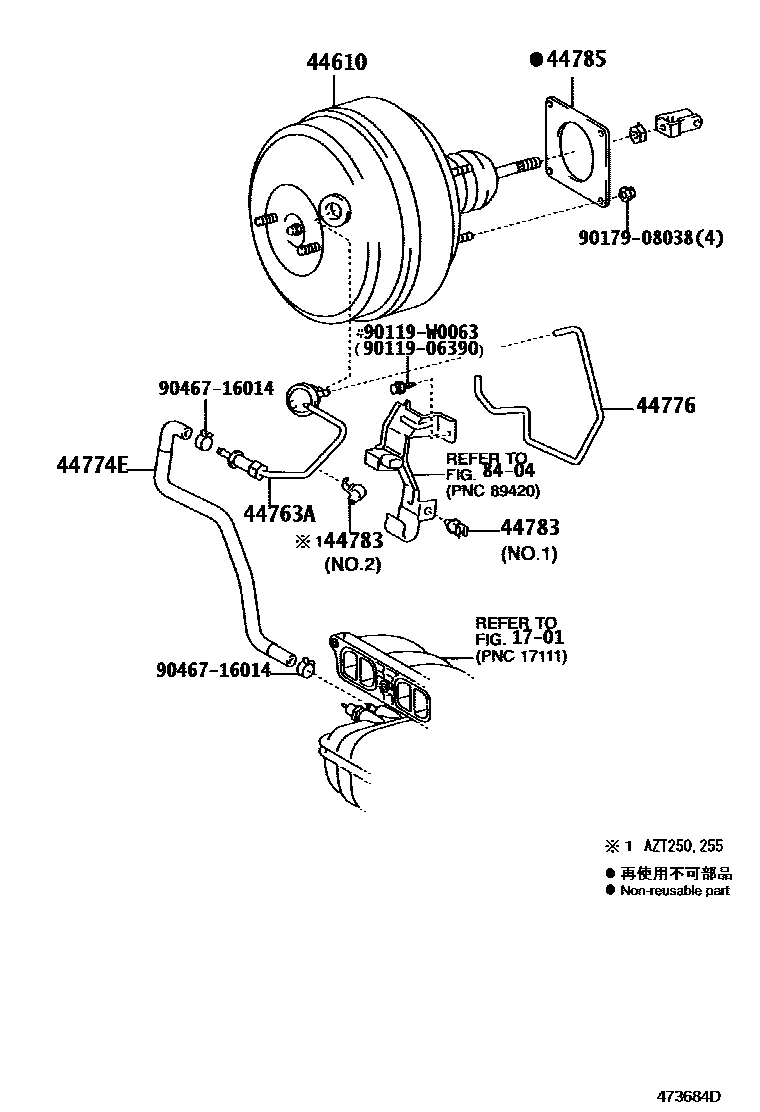

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-05100iAZT25#200307-200606

44763ATUBE, HOSE TO HOSE, NO.1

main44763-05040iAZT25#200307-200606

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-20340iAZT25#200307-200606

44776HOSE, BRAKE BOOSTER

main44776-20200iAZT25#200307-200606

44783CLAMP, VACUUM HOSE

main44783-20090iAZT25#200307-200606

main44783-20110iAZT250,255200307-200606

44785GASKET, BRAKE BOOSTER

main44785-20020iAZT255200309-200403

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906390

main90119-06390

90119W0063

main90119-W0063

9017908038

main90179-08038

9046716014

main90467-16014

12 parts on this diagram · 1 diagram in section
