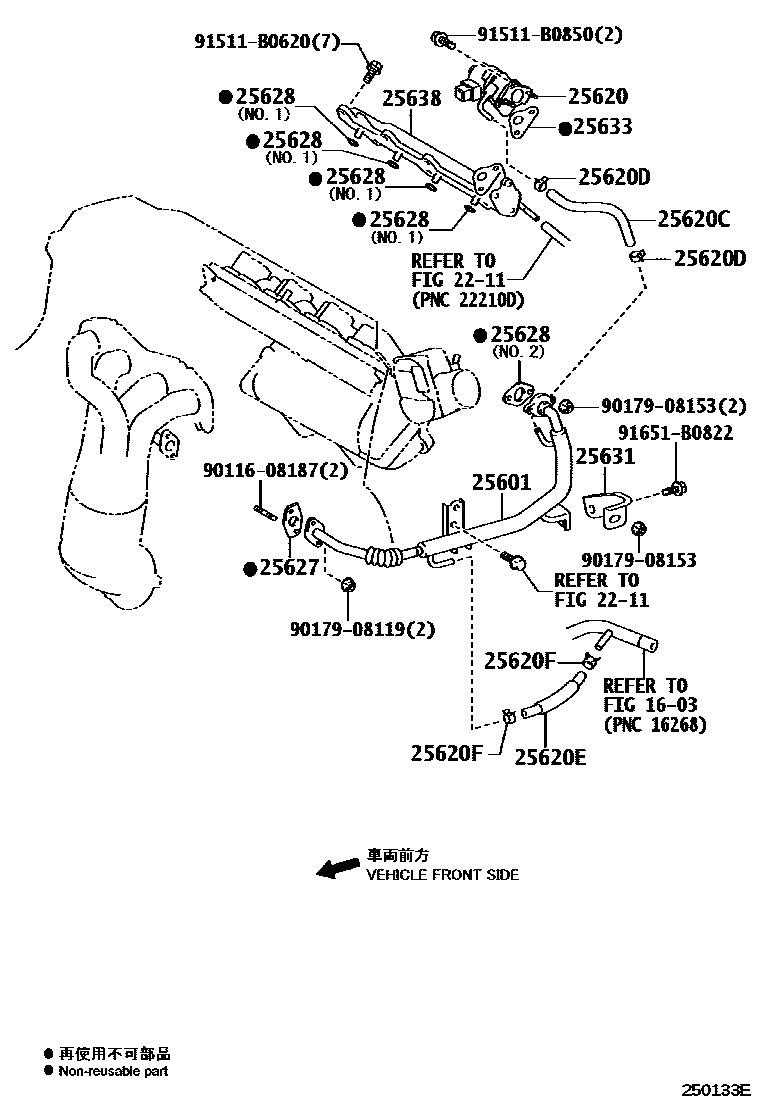

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25601PIPE SUB-ASSY, EGR, NO.1

main25611-28010i1AZFSE..AZT25#200307-200506

main25611-28011i1AZFSE..AZT250,255200507-200606

25620VALVE ASSY, EGR

main25620-28100i1AZFSE..AZT250,255200307-200606

main25620-28101i1AZFSE..AZT250,255200805

25620CHOSE, WATER BY-PASS, NO.1

main99555-10100i1AZFSE..AZT250,255200307-200606

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main90466-W0002×2i1AZFSE..AZT250,255200310-200606

main96135-51300×2i1AZFSE..AZT25#200307-200310

25620EHOSE, WATER BY-PASS NO.2

main16264-28070i1AZFSE..AZT250,255200307-200606

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main90466-W0002×2i1AZFSE..AZT250,255200310-200606

main96135-51300×2i1AZFSE..AZT25#200307-200310

25627GASKET, EGR VALVE

main25627-74080i1AZFSE..AZT250,255200307-200606

25628GASKET, EGR INLET

main25628-28010×4i1AZFSE..AZT250,255200307-200606

main25628-28030i1AZFSE..AZT250,255200606-200811

25631STAY, EGR PIPE, NO.1

main25631-28010i1AZFSE..AZT250,255200307-200606

25633GASKET, EGR VALVE

main25633-28010i1AZFSE..AZT250,255200307-200606

25638CHAMBER, EGR DELIVERY

main25638-28030i1AZFSE..AZT250,255200307-200606

main25638-28031i1AZFSE..AZT250,255200805

9011608187

main90116-08187

9017908119

main90179-08119

9017908153

main90179-08153

91511B0620

main91511-B0620

91511B0850

main91511-B0850

91651B0822

main91651-B0822

19 parts on this diagram · 1 diagram in section
