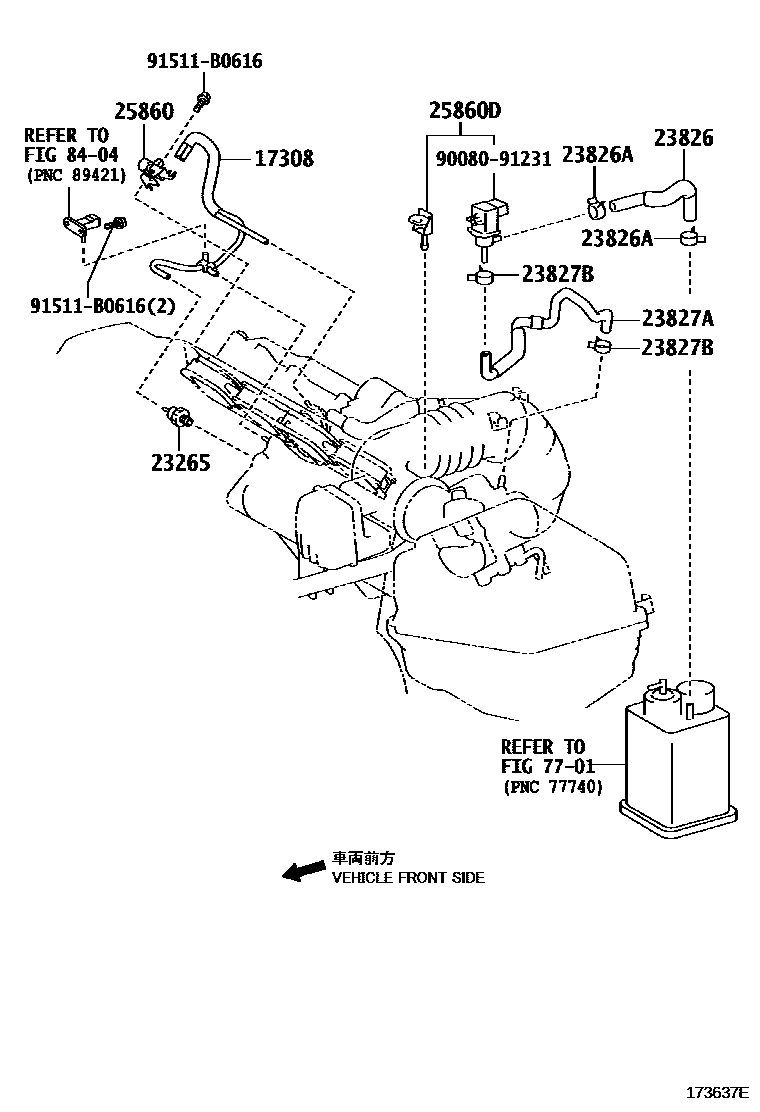

VACUUM PIPING

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-28010i1AZFSE,2AZFSE..AZT25#200307-200606

23265FILTER, GAS, NO.1

main90917-11037i1AZFSE,2AZFSE..AZT25#200307-200606

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-28100i1AZFSE,2AZFSE..AZT25#200307-200606

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100×2i1AZFSE,2AZFSE..AZT25#200307-200606

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28110i1AZFSE,2AZFSE..AZT25#200307-200606

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300×2i1AZFSE,2AZFSE..AZT25#200307-200606

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28070i1AZFSE,2AZFSE..AZT25#200307-200606

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-0D040i1AZFSE,2AZFSE..AZT25#200307-200606

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9008091231

main90080-91231

91511B0616

main91511-B0616

12 parts on this diagram · 1 diagram in section
