Toyota 221130 — HEATING & AIR CONDITIONING - COOLER PIPING

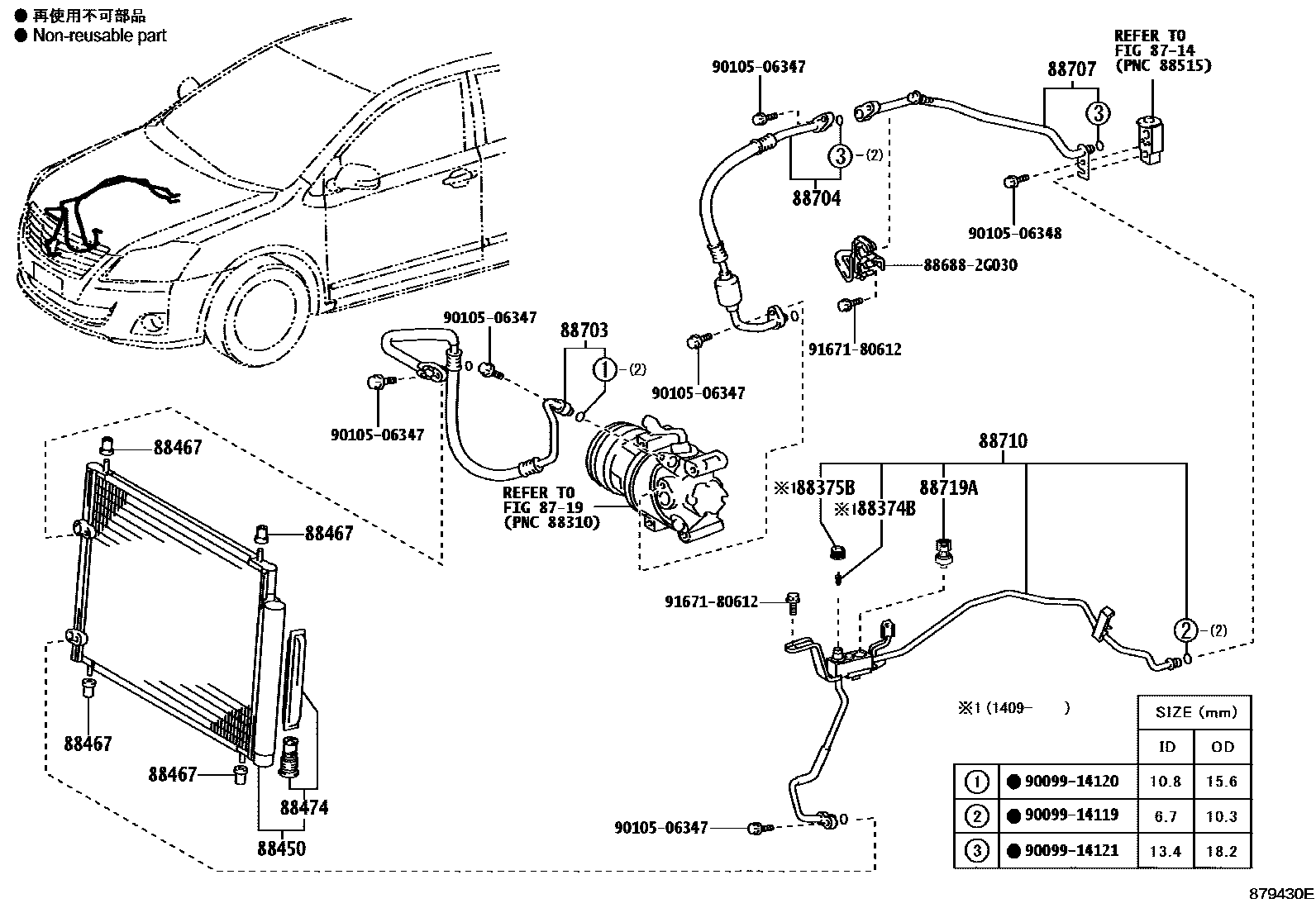

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

88375BCAP, SERVICE VALVE, NO.1

88450CONDENSER ASSY, W/RECEIVER

88467CUSHION, COOLER CONDENSER, NO.1

88474DRYER, COOLER

88703HOSE SUB-ASSY, DISCHARGE

88704HOSE SUB-ASSY, SUCTION

88707PIPE SUB-ASSY, SUCTION

88710TUBE ASSY, AIR CONDITIONER

88719ASENSOR, AIR CONDITIONER PRESSURE

886882G030BRACKET, COOLER DIAPHRAGM

9009914119

9009914120

9009914121

9010506347

9010506348

9167180612

19 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota 221130

This section contains 19 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota 221130. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - COMPRESSOR, VALVE, SERVICE, NO.1, CAP, SERVICE VALVE, NO.1, CONDENSER ASSY, W/RECEIVER.
