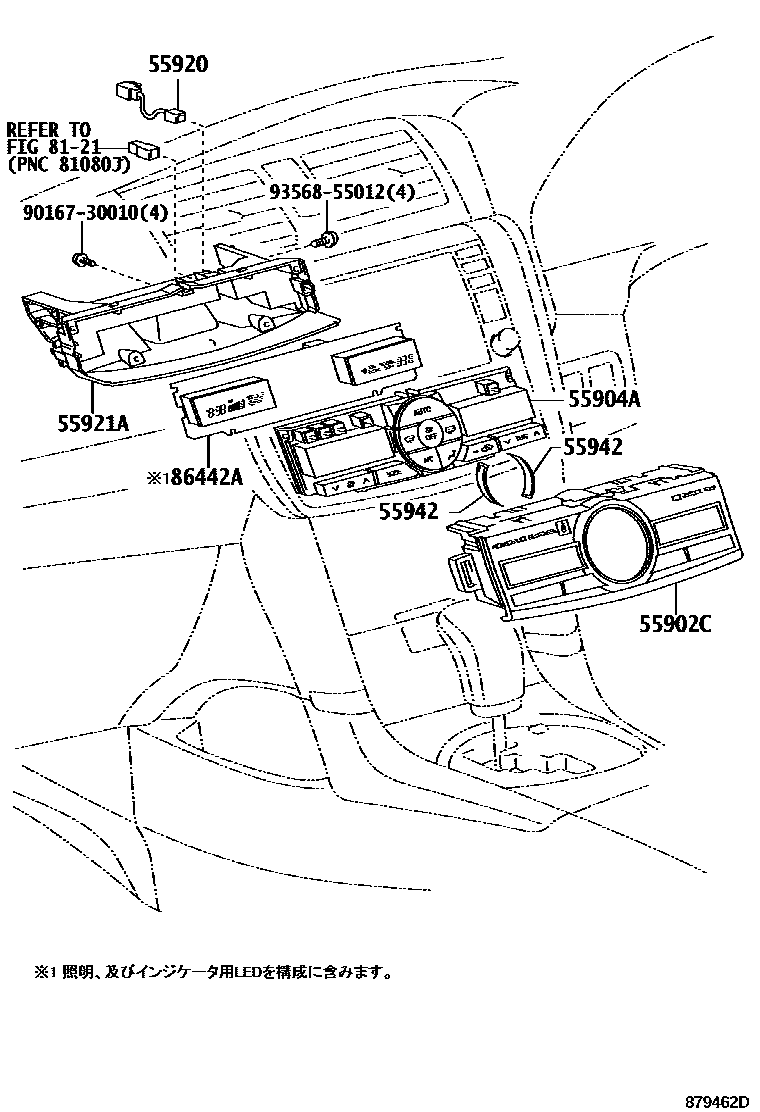

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ 0002 1������ 0003 1������ 0004 1������ 0005 1���

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-20200iNZT260,ZRT26#..CBU200705-201004

main55902-20201supersedes 55902-20211iNZT260,ZRT260,265..CBU; ZRT261..CBU201004-201606

main55902-20210iNZT260,ZRT260,265..CBU200712-201004

main55902-20220iZRT261..PRM..CBU200808-201004

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-20060supersedes 55904-20070iNZT260,ZRT26#..CBU200705-201004

main55904-20070iNZT260,ZRT260,265..CBU200712-201004

55920HARNESS ASSY, HEATER CONTROL SUB WIRE

main55920-20020iNZT260,ZRT26#..CBU201004-201606

55921ARETAINER, HEATER CONTROL

main55921-20120iNZT260,ZRT26#..CBU201004-201606

55942GUARD, HEATER CONTROL

main55942-20040×2iNZT260,ZRT26#..CBU200705-201004

8121INTERIOR LAMP

→ Go to FIG 81-21

86442ABOARD, HEATER CONTROL SWITCH

main86442-20071iZRT261..CBU201004-201212

main86442-20100supersedes 86442-20120iNZT260,ZRT260,265..CBU; ZRT261..CBU201212-201606

main86442-20061iNZT260..ALN..CBU; NZT260..PRM..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU201110-201212

main86442-20070iNZT260,ZRT260,265..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU200712-201004

main86442-20080iZRT261..PRM..CBU200808-201004

main86442-20081iNZT260..ALN..CBU; NZT260..PRM..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU201110-201212

main86442-20090iNZT260,ZRT260,265..CBU200712-201004

main86442-20110iNZT260,ZRT260,265..CBU; ZRT261..ALN..CBU; ZRT261..PRM..CBU201212-201606

9016730010

main90167-30010

9356855012

main93568-55012

9 parts on this diagram · 5 diagrams in section
