Toyota 221130 — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
87710GQUICK HEATER ASSY
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
8712842010GROMMET, HEATER
9009900318
9009914120
9009914121
9011906144
9011906942
9015960303
9015960383
9017906282

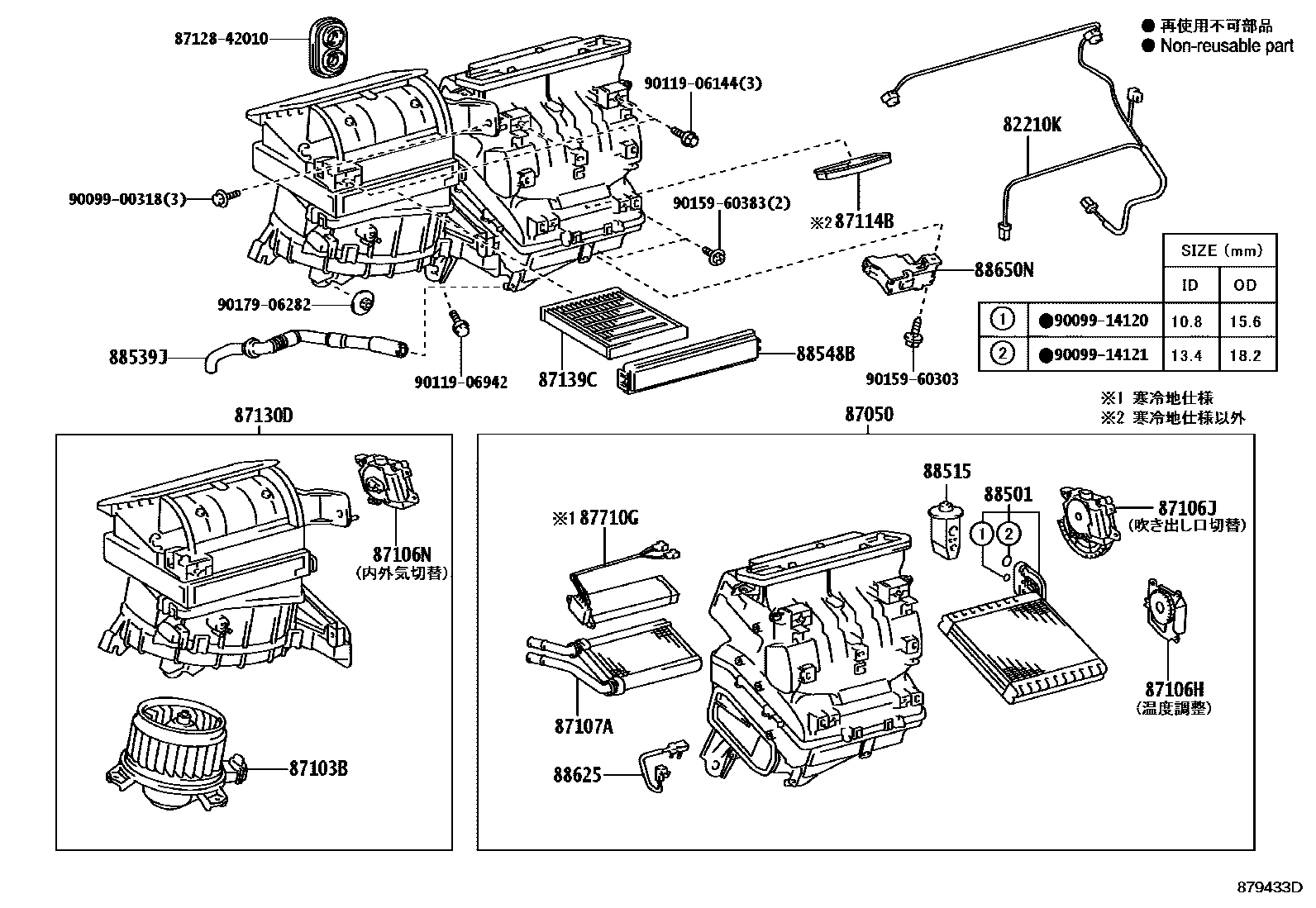

26 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - COOLER UNIT for Toyota 221130
This section contains 26 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER UNIT system of the Toyota 221130. Key components include: HARNESS ASSY, AIR CONDITIONER, RADIATOR ASSY, AIR CONDITIONER, MOTOR SUB-ASSY, BLOWER W/FAN, SERVO SUB-ASSY, DAMPER(FOR AIRMIX), SERVO SUB-ASSY, DAMPER(FOR MODE).
