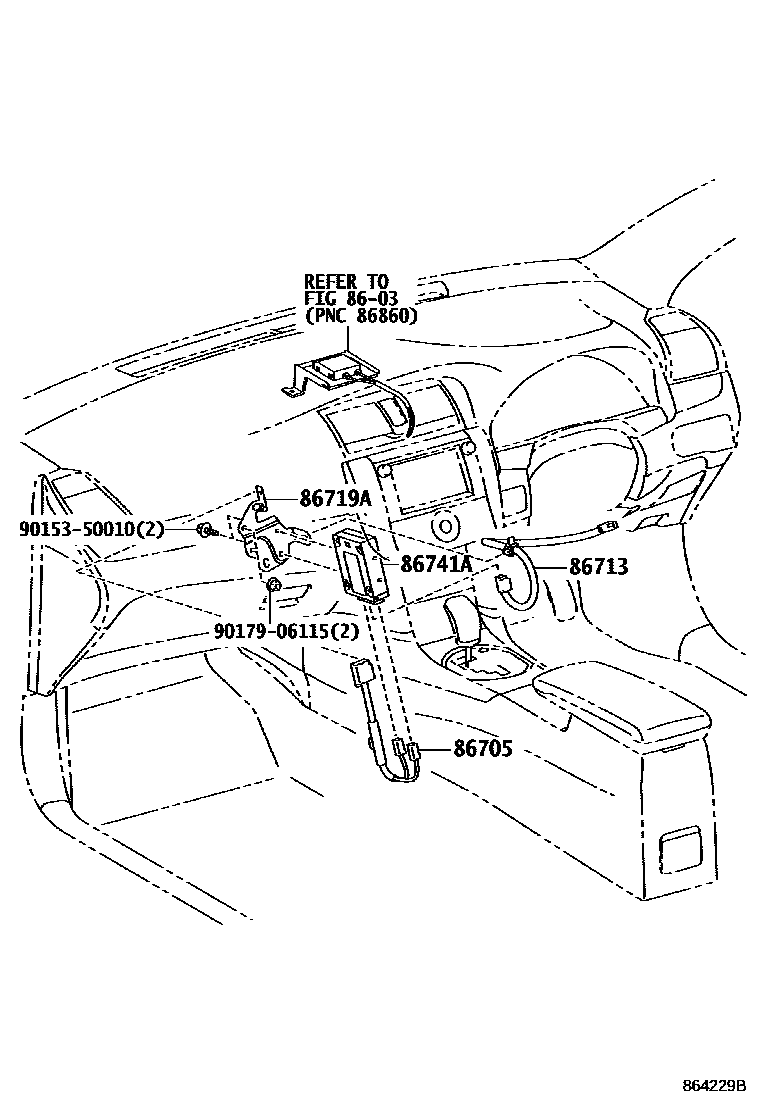

TELEPHONE & MAYDAY

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-20010iZRT261..PRM..CBU201004-201212

86713WIRE, TELEPHONE COMPUTER

main86713-20010iZRT261..PRM..CBU201004-201212

86719ABRACKET, TELEPHONE NO.1

main86719-20010iZRT261..PRM..CBU201004-201212

86741ATRANSCEIVER, TELEMATICS

main86741-28020iZRT261..PRM..CBU201004-201201

main86741-28021iZRT261..PRM..CBU201202-201212

9015350010

main90153-50010

9017906115

main90179-06115

7 parts on this diagram · 1 diagram in section
