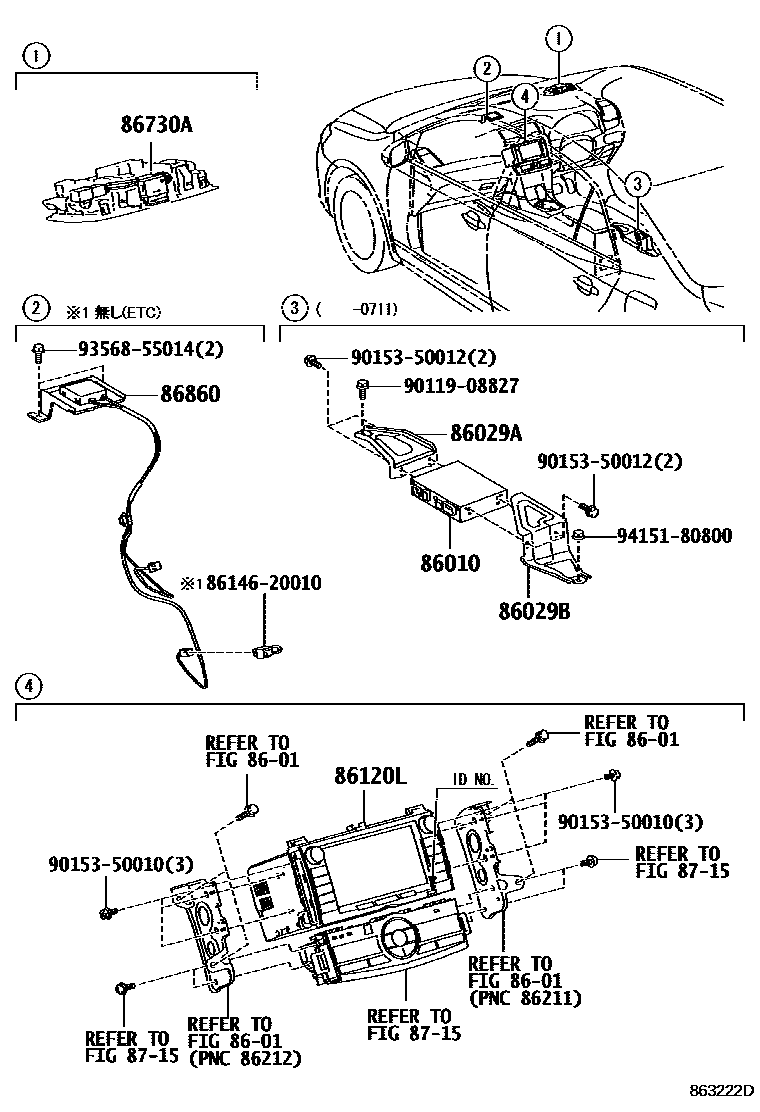

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86010TUNER ASSY, TELEVISION

main86016-47010iNZT260,ZRT26#..CBU200705-200711

86029ABRACKET SET, TELEVISION, NO.1

main86029-20030iNZT260,ZRT26#..CBU200705-200711

86029BBRACKET SET, TELEVISION, NO.2

main86029-20040iNZT260,ZRT26#..CBU200705-200711

86120LRECEIVER ASSY, NAVIGATION

main86100-20520iNZT260..CBU; ZRT26#..CBU200705-200707

main86100-20521iNZT260..CBU; ZRT26#..CBU200708-200804

main86100-20522iNZT260..CBU; ZRT26#..CBU200805-200808

main86100-20523iNZT260..CBU; ZRT26#..CBU200809-200904

main86100-20524iNZT260..CBU; ZRT26#..CBU200905-200908

main86100-20525iNZT260,ZRT260,265..CBU; ZRT261..CBU200909-201004

main86100-20631iNZT260,ZRT260,265..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU; ZRT261..ALN..CBU; ZRT261..CBU; ZRT261..PRM..CBU201004-201008

main86100-20632iNZT260,ZRT260,265..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU; ZRT261..ALN..CBU; ZRT261..CBU; ZRT261..PRM..CBU201009-201103

main86100-20633iNZT260,ZRT260,265..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU; ZRT261..ALN..CBU; ZRT261..CBU; ZRT261..PRM..CBU201104-201108

main86100-20634iZRT260,265..ALN..CBU201109-201110

main86100-20635iNZT260,ZRT260,265..CBU; NZT260..ALN..CBU; NZT260..PRM..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU; ZRT261..ALN..CBU; ZRT261..CBU; ZRT261..PRM..CBU201206-201208

main86100-20636iNZT260,ZRT260,265..CBU; NZT260..ALN..CBU; NZT260..PRM..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU; ZRT261..ALN..CBU; ZRT261..CBU; ZRT261..PRM..CBU201209-201212

86730AMICROPHONE ASSY, TELEPHONE

main86730-20030iNZT260..ALN..CBU; NZT260..PRM..CBU; ZRT260,265..ALN..CBU; ZRT260,265..PRM..CBU201110-201212

86860ANTENNA ASSY, NAVIGATION

main86860-20090iNZT260,ZRT26#..CBU201004-201212

main86870-20010iNZT260,ZRT26#..CBU201004-201212

main86870-20020iZRT261..PRM..CBU201004-201212

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8614620010

main86146-20010

9011908827

main90119-08827

9015350010

main90153-50010

9015350012

main90153-50012

9356855014

main93568-55014

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
