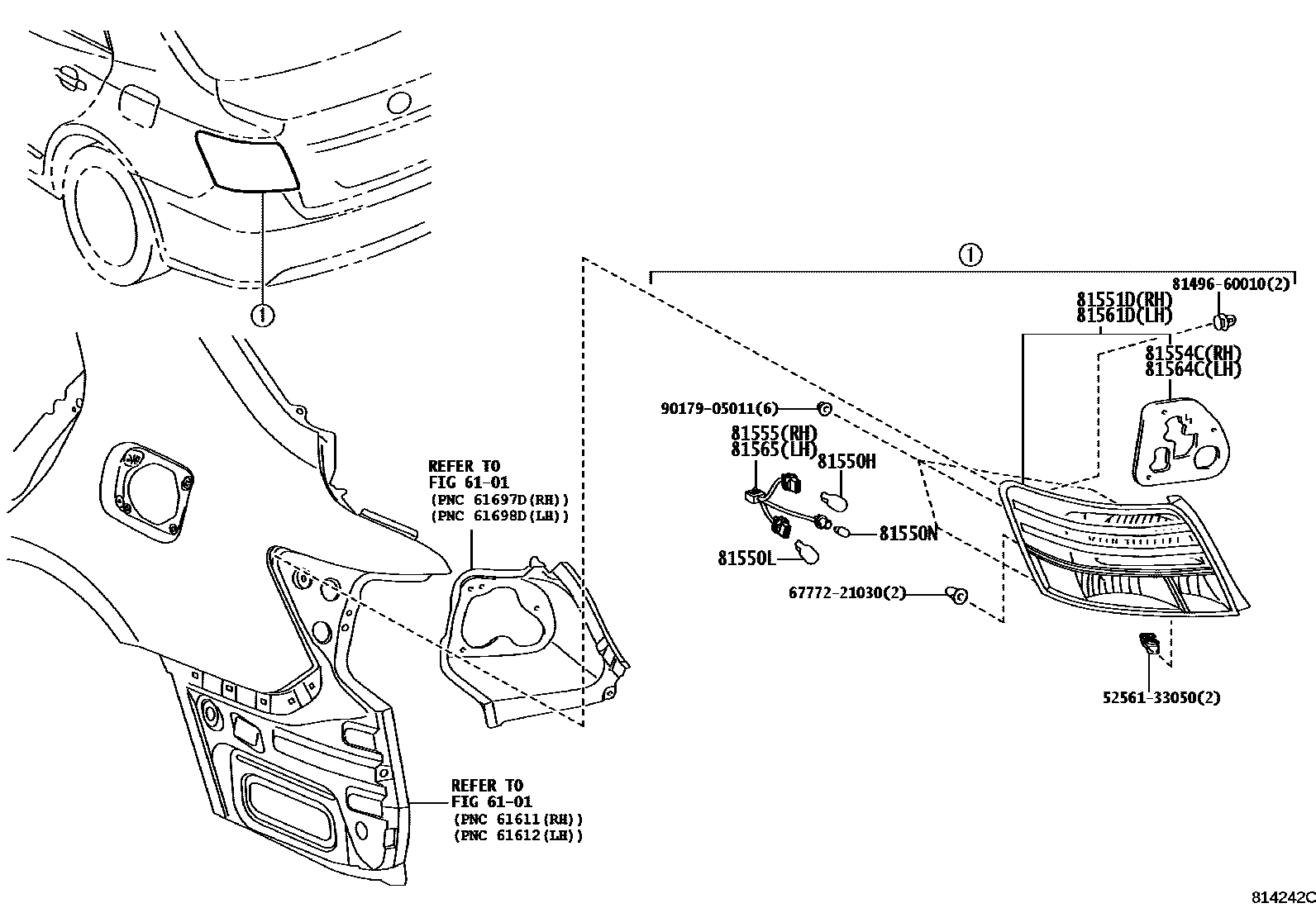

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

6101SIDE MEMBER

→ Go to FIG 61-01

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNZT260,ZRT26#..CBU200705-201004

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043×2iNZT260,ZRT26#..ALN..CBU200705-201004

main90981-15021×2iNZT260,ZRT260,265..CBU201606

81550NBULB, BACK UP LAMP

main90981-11059×2iNZT260,ZRT26#..CBU201004-201606

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-20A20iNZT260,ZRT26#..PRM..CBU200705-200709

main81551-20A21iNZT260,ZRT26#..PRM..CBU200709-201004

main81551-20A30iNZT260,ZRT26#..ALN..CBU200705-201004

main81551-20A40iNZT260,ZRT26#..PRM..CBU201004-201606

main81551-20A50iNZT260,ZRT26#..ALN..CBU201004-201606

main81551-20A60iZRT261..PRM..CBU201606-202009

main81551-20A70iZRT261..ALN..CBU201606-202009

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-20A60iNZT260,ZRT260,265..PRM..CBU201606

main81552-20A70iZRT261..ALN..CBU201606-202009

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81552-20A20iNZT260,ZRT26#..PRM..CBU201004-201606

main81552-20A30iNZT260,ZRT26#..ALN..CBU200705-201004

main81552-20A50iNZT260,ZRT26#..ALN..CBU201004-201606

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20A20iNZT260,ZRT26#..PRM..CBU200705-201004

main81555-20A30iNZT260,ZRT26#..ALN..CBU200705-201004

main81555-20A40iNZT260,ZRT26#..PRM..CBU201004-201606

main81555-20A50iNZT260,ZRT26#..ALN..CBU201004-201606

main81555-20A60iZRT261..PRM..CBU201606-202009

main81555-20A70iZRT261..ALN..CBU201606-202009

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-20A20iNZT260,ZRT26#..PRM..CBU200705-200709

main81561-20A21iNZT260,ZRT26#..PRM..CBU200709-201004

main81561-20A30iNZT260,ZRT26#..ALN..CBU200705-201004

main81561-20A40iNZT260,ZRT26#..PRM..CBU201004-201606

main81561-20A50iNZT260,ZRT26#..ALN..CBU201004-201606

main81561-20A60iNZT260,ZRT260,265..PRM..CBU201606

main81561-20A70iZRT261..ALN..CBU201606-202009

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-20A60iZRT261..PRM..CBU201606-202009

main81562-20A70iZRT261..ALN..CBU201606-202009

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81562-20A20iNZT260,ZRT26#..PRM..CBU200705-201004

main81562-20A30iNZT260,ZRT26#..ALN..CBU200705-201004

main81562-20A50iNZT260,ZRT26#..ALN..CBU201004-201606

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-20A20iNZT260,ZRT26#..PRM..CBU200705-201004

main81555-20A30iNZT260,ZRT26#..ALN..CBU200705-201004

main81555-20A40iNZT260,ZRT26#..PRM..CBU201004-201606

main81555-20A50iNZT260,ZRT26#..ALN..CBU201004-201606

main81555-20A60iZRT261..PRM..CBU201606-202009

main81555-20A70iZRT261..ALN..CBU201606-202009

5256133050RETAINER, REAR BUMPER, UPPER CENTER

main52561-33050

6777221030WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-21030

8149660010GUIDE, REAR COMBINATION LAMP

main81496-60010

9017905011

main90179-05011

16 parts on this diagram · 6 diagrams in section
