SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� 0002 1��

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53010-A1iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main73023-53010-A6iNZT260,ZRT26#..CBU201606-201911

FLAXEN,TRIM0#

main73023-53010-B0iNZT260,ZRT26#..CBU200705-201004

LT.GRAY,TRIM1#

main73023-53010-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main73023-53011-A6iZRT261..CBU201912-202009

FLAXEN,TRIM0#

main73023-53011-B0iZRT261..CBU201912-202009

LT.GRAY,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53010-A1iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main73024-53010-A6iNZT260,ZRT26#..CBU201606-201911

FLAXEN,TRIM0#

main73024-53010-B0iNZT260,ZRT26#..CBU201606-201911

LT.GRAY,TRIM2#

main73024-53010-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main73024-53011-A6iZRT261..CBU201912-202009

FLAXEN,TRIM0#

main73024-53011-B0iNZT260,ZRT260,265..CBU201912

LT.GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iZRT261..CBU201606-202009

main73200-53010×2iNZT260,ZRT26#..CBU200705-201004

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-20A30-C0iNZT260,ZRT26#..CBU200705-201004

BLACK,TRIM1#

main73210-20A30-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

main73210-20A40-C1iNZT260,ZRT26#..CBU201004-201110

BLACK,TRIM1#

main73210-20A40-E0iNZT260,ZRT26#..CBU201004-201110

GREGE,TRIM4#

main73210-20A41-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main73210-20A41-A1iZRT261..CBU201606-202009

IVORY/FLAXEN,TRIM0#

main73210-20A41-C1iNZT260,ZRT26#..CBU201110-201606

BLACK,TRIM1#

main73210-20A41-E0iNZT260,ZRT26#..CBU201110-201212

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iNZT260,ZRT26#..CBU201004-201606

main73219-33020iNZT260,ZRT260,265..CBU201606

main73219-33030iNZT260,ZRT26#..CBU201004-201606

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20890-C0iNZT260,ZRT26#..CBU200705-201004

BLACK,TRIM1#

main73220-20890-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

main73220-20A00-C1iNZT260,ZRT26#..CBU201004-201110

BLACK,TRIM1#

main73220-20A00-E0iNZT260,ZRT26#..CBU201004-201110

GREGE,TRIM4#

main73220-20A01-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main73220-20A01-A1iZRT261..CBU201606-202009

IVORY/FLAXEN,TRIM0#

main73220-20A01-C1iZRT261..CBU201606-202009

BLACK,TRIM2#

main73220-20A01-E0iNZT260,ZRT26#..CBU201110-201212

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20A00-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main73230-20A00-B0iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main73230-20A00-C0iNZT260,ZRT26#..CBU201004-201606

BLACK,TRIM1#

main73230-20A00-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main73230-2B050-A0iNZT260,ZRT260,265..CBU; ZRT261..ALN..CBU; ZRT261..PRM..CBU201212-201606

main73230-2B050-A1supersedes 73230-20A00-A1iNZT260,ZRT260,265..CBU201606

main73230-2B050-C0iZRT260,265..CBU201606

main73230-2B050-E0iZRT260,265..PRM..CBU; ZRT261..PRM..CBU201004-201212

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-B8×2iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main73233-33010-C0×2iNZT260,ZRT260,265..CBU201606

BLACK,TRIM0#,2#

main73233-33010-E6×2iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM40

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-20A10-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main73230-20A10-A1iNZT260,ZRT260,265..CBU201606

FLAXEN,TRIM0#

main73230-20A10-B0iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main73230-20A10-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM2#

main73230-20A10-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main73230-20A20-E0iZRT261..PRM..CBU200808-201004

main73230-20A30-A0iZRT261..ALN..CBU; ZRT261..PRM..CBU201212-201606

main73230-20A30-C0iZRT260,265..CBU201606

main73230-20A30-E0iZRT261..PRM..CBU201004-201212

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511036

main90105-11036

9010911028

main90109-11028

9017911010

main90179-11010

9020617005

main90206-17005

91511B0614

main91511-B0614

9461211200

main94612-11200

C991011001

mainC9910-11001

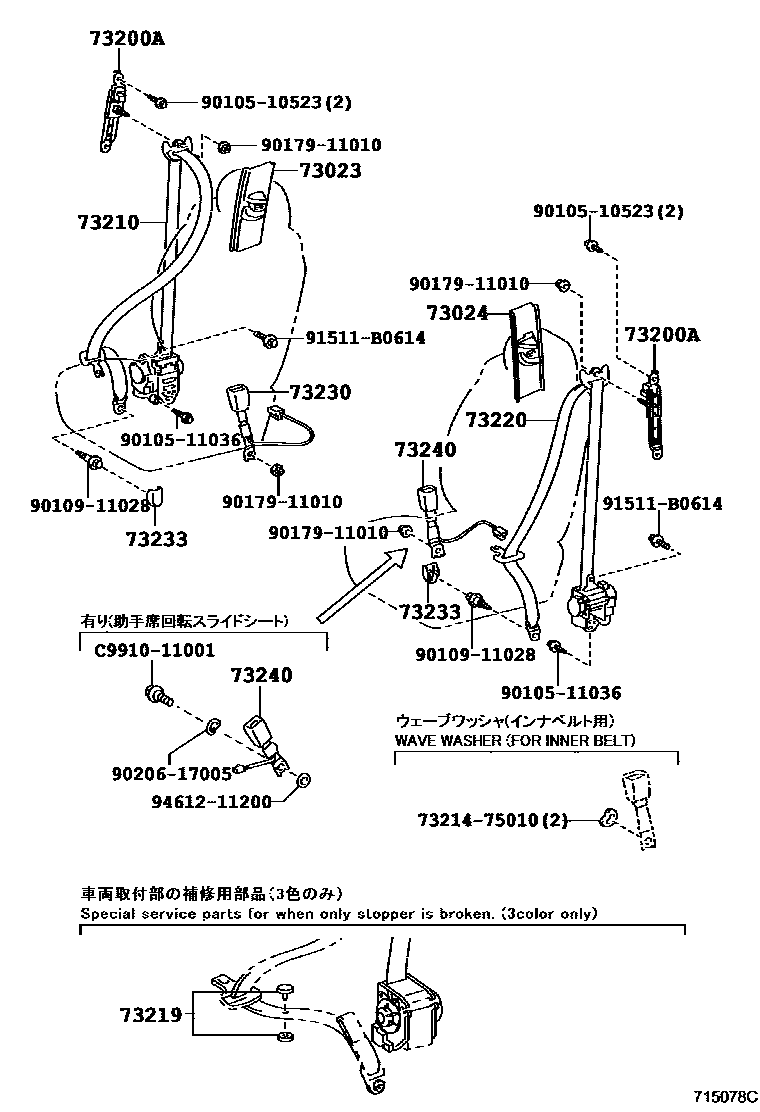

18 parts on this diagram · 2 diagrams in section
