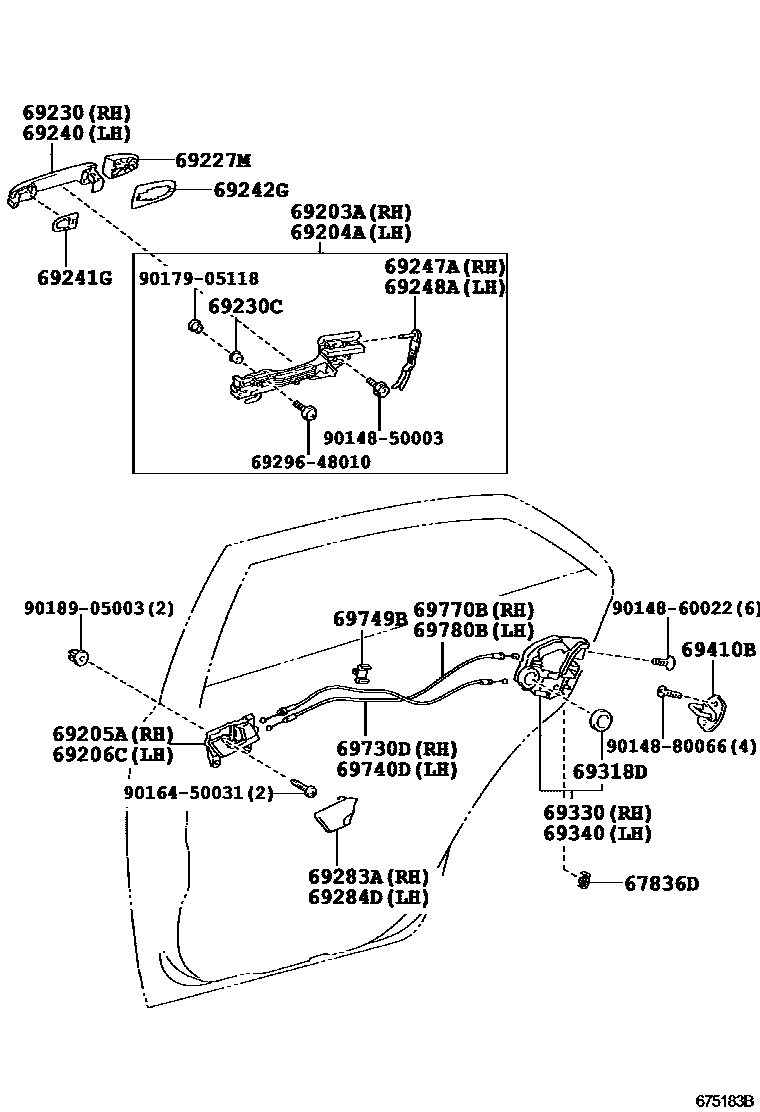

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-12040×2iNZT260,ZRT26#..CBU201004-201312

main67836-33030×2iNZT260,ZRT26#..CBU201401-201606

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-20030iZRT261..CBU201606-202009

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-20040iNZT260,ZRT26#..CBU200705-201004

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20210-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main69205-20210-A1iZRT261..CBU201606-202009

FLAXEN,TRIM00

main69205-20210-B0iNZT260,ZRT26#..CBU201004-201212

DK.GRAY,TRIM1#

main69205-20210-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM00,2#

main69205-20210-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main69205-20210-E3iNZT260,ZRT26#..CBU201212-201606

ORCHID BROWN,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20210-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main69206-20210-A1iNZT260,ZRT260,265..CBU201606

FLAXEN,TRIM00

main69206-20210-B0iNZT260,ZRT26#..CBU201004-201212

DK.GRAY,TRIM1#

main69206-20210-C0iZRT261..CBU201606-202009

BLACK,TRIM00,2#

main69206-20210-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

main69206-20210-E3iNZT260,ZRT26#..CBU201212-201606

ORCHID BROWN,TRIM1#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69207-30040-A0×2iNZT260,ZRT260,265..PRM..CBU201606

SUPER WHITE 2,040

main69207-30040-A5×2iNZT260,ZRT26#..PRM..CBU200705-201004

WHITE PEARL CS.,070

main69207-30040-B2×2iNZT260,ZRT26#..PRM..CBU200705-201004

SILVER ME.,1F7

main69207-30040-C0×2iNZT260,ZRT26#..PRM..CBU201110-201606

BLACK,202

main69207-30040-C2×2iNZT260,ZRT26#..PRM..CBU201004-201110

BLACK MC.,209

main69207-30040-C3×2iZRT261..PRM..CBU201606-202009

ATTITUDE BLACK MC.,218

main69207-30040-C4×2iZRT261..PRM..CBU201606-202009

BLACKISH AGEHA GF.,221

main69207-30040-D0×2iNZT260,ZRT26#..PRM..CBU200705-201004

BLACKISH RED MC.,3R0

main69207-30040-D2×2iNZT260,ZRT26#..PRM..CBU200705-200808

RED M.M.,3R3

main69207-30040-D5×2iZRT261..PRM..CBU201606-202009

DK.RED M.M.,3T0

main69207-30040-E7×2iNZT260,ZRT260,265..PRM..CBU201606

DARK SHERRY M.M.,4W4

main69207-30040-H1×2iNZT260,ZRT260,265..PRM..CBU201606

FROSTY GREEN MC.,781

main69207-30040-H2×2iNZT260,ZRT26#..PRM..CBU201212-201606

CLEAR STREAM ME.,787

main69207-30040-J2×2iNZT260,ZRT26#..PRM..CBU201004-201212

DK.BLUE MC.,8S6

main69207-30040-J3×2iNZT260,ZRT26#..PRM..CBU200705-201004

LT.BLUE ME.,8S7

main69207-30040-P0×2iNZT260,ZRT26#..PRM..CBU200705-201004

GRAY ME.,1G2

main69207-30040-R5×2iNZT260,ZRT26#..PRM..CBU201212-201606

ABYSS GRAY ME.,8V1

main69227-60020-A1×2iNZT260,ZRT26#..ALN..CBU200705-201004

WHITE PEARL CS.,070

main69227-60020-A2×2iZRT261..ALN..CBU201606-202009

SUPER WHITE 2,040

main69227-60020-B9×2iNZT260,ZRT26#..ALN..CBU201110-201606

GRAY ME.,1G3

main69227-60020-C0×2iNZT260,ZRT26#..ALN..CBU201110-201606

BLACK,202

main69227-60020-C1×2iNZT260,ZRT26#..ALN..CBU200705-201004

BLACK MC.,209

main69227-60020-C3×2iZRT261..ALN..CBU201606-202009

ATTITUDE BLACK MC.,218

main69227-60020-C4×2iNZT260,ZRT260,265..ALN..CBU201606

BLACKISH AGEHA GF.,221

main69227-60020-D9×2iNZT260,ZRT26#..ALN..CBU200705-200808

RED M.M.,3R3

main69227-60020-H0×2iNZT260,ZRT26#..ALN..CBU200705-200808

TURQUOISE M.M.,776

main69227-60020-H1×2iNZT260,ZRT260,265..ALN..CBU201606

FROSTY GREEN MC.,781

main69227-60020-H2×2iNZT260,ZRT26#..ALN..CBU201212-201606

CLEAR STREAM ME.,787

main69227-60020-L0×2iNZT260,ZRT26#..ALN..CBU201004-201110

BEIGE ME.,4T8

main69227-60020-L2×2iNZT260,ZRT260,265..ALN..CBU201606

DARK SHERRY M.M.,4W4

main69227-60020-P2×2iNZT260,ZRT260,265..ALN..CBU201606

SILVER ME.,1F7

main69227-60020-R4×2iNZT260,ZRT26#..ALN..CBU200808-201004

DK.BLUE MC.,8S6

main69227-60020-R9×2iNZT260,ZRT26#..ALN..CBU200705-201004

LT.BLUE M.M.,8S7

main69227-60020-X0×2iNZT260,ZRT26#..ALN..CBU; NZT260,ZRT260,265..PRM..CBU200808-201004

main69227-60020-X1×2iNZT260,ZRT260,265..ALN..CBU201606

DK.RED M.M.,3T0

main69227-60020-P7×2iNZT260,ZRT260,265..PRM..CBU200910-201004

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-20420-A0iNZT260,ZRT26#..PRM..CBU200705-201004

SUPER WHITE 2,040

main69210-20420-A1iNZT260,ZRT260,265..PRM..CBU201606

WHITE PEARL CS.,070

main69210-20420-B0iNZT260,ZRT26#..PRM..CBU200705-201004

SILVER ME.,1F7

main69210-20420-B1iNZT260,ZRT26#..PRM..CBU201004-201212

GRAY ME.,1G2

main69210-20420-C0iNZT260,ZRT26#..PRM..CBU201004-201110

BLACK MC.,209

main69210-20420-C1iNZT260,ZRT26#..PRM..CBU201110-201606

BLACK,202

main69210-20420-C2iZRT261..PRM..CBU201606-202009

ATTITUDE BLACK MC.,218

main69210-20420-C3iZRT261..PRM..CBU201606-202009

BLACKISH AGEHA GF.,221

main69210-20420-D0iNZT260,ZRT26#..PRM..CBU201004-201606

BLACKISH RED MC.,3R0

main69210-20420-D1iNZT260,ZRT26#..PRM..CBU200705-200808

RED M.M.,3R3

main69210-20420-D2iZRT261..PRM..CBU201606-202009

DK.RED M.M.,3T0

main69210-20420-E1iZRT261..PRM..CBU201606-202009

DARK SHERRY M.M.,4W4

main69210-20420-H1iZRT261..PRM..CBU201606-202009

FROSTY GREEN MC.,781

main69210-20420-H2iNZT260,ZRT26#..PRM..CBU201212-201606

CLEAR STREAM ME.,787

main69210-20420-J0iNZT260,ZRT26#..PRM..CBU200705-201004

LT.BLUE M.M.,8S7

main69210-20420-J1iNZT260,ZRT26#..PRM..CBU201004-201212

DK.BLUE MC.,8S6

main69210-20420-J2iNZT260,ZRT26#..PRM..CBU201212-201606

ABYSS GRAY ME.,8V1

main69211-28070-A0iZRT261..ALN..CBU201606-202009

SUPER WHITE 2,040

main69211-28070-A3iNZT260,ZRT26#..ALN..CBU200705-201004

WHITE PEARL CS.,070

main69211-28070-C0iNZT260,ZRT26#..ALN..CBU201004-201110

BLACK MC.,209

main69211-28070-C1iNZT260,ZRT26#..ALN..CBU201110-201606

BLACK,202

main69211-28070-C3iNZT260,ZRT260,265..ALN..CBU201606

ATTITUDE BLACK MC.,218

main69211-28070-C4iZRT261..ALN..CBU201606-202009

BLACKISH AGEHA GF.,221

main69211-28070-H1iNZT260,ZRT26#..ALN..CBU200705-200808

TURQUOISE M.M.,776

main69211-28070-H2iZRT261..ALN..CBU201606-202009

FROSTY GREEN MC.,781

main69211-28070-H3iNZT260,ZRT26#..ALN..CBU201212-201606

CLEAR STREAM ME.,787

main69211-28070-L0iNZT260,ZRT26#..ALN..CBU201004-201110

BEIGE ME.,4T8

main69211-28070-L3iZRT261..ALN..CBU201606-202009

DARK SHERRY M.M.,4W4

main69211-28070-P2iZRT261..ALN..CBU201606-202009

SILVER ME.,1F7

main69211-28070-P4iNZT260,ZRT26#..ALN..CBU201110-201606

GRAY ME.,1G3

main69211-28070-R9iNZT260,ZRT26#..ALN..CBU200808-201004

DK.BLUE MC.,8S6

main69211-28070-V4iNZT260,ZRT26#..ALN..CBU200705-201004

LT.BLUE M.M.,8S7

main69211-28070-X1iNZT260,ZRT26#..ALN..CBU200705-200808

RED M.M.,3R3

main69211-28070-X2iNZT260,ZRT26#..ALN..CBU201004-201606

BLACKISH RED MC.,3R0

main69211-28070-X5iZRT261..ALN..CBU201606-202009

DK.RED M.M.,3T0

main69211-28070-P7iNZT260,ZRT260,265..PRM..CBU200910-201004

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main90386-08066×2iNZT260,ZRT26#..CBU200705-201004

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-20420-A0iNZT260,ZRT26#..PRM..CBU201004-201606

SUPER WHITE 2,040

main69210-20420-A1iNZT260,ZRT26#..PRM..CBU200705-201004

WHITE PEARL CS.,070

main69210-20420-B0iNZT260,ZRT26#..PRM..CBU201004-201606

SILVER ME.,1F7

main69210-20420-B1iNZT260,ZRT26#..PRM..CBU201004-201212

GRAY ME.,1G2

main69210-20420-C0iNZT260,ZRT26#..PRM..CBU200808-201004

BLACK MC.,209

main69210-20420-C1iNZT260,ZRT26#..PRM..CBU201110-201606

BLACK,202

main69210-20420-C2iNZT260,ZRT260,265..PRM..CBU201606

ATTITUDE BLACK MC.,218

main69210-20420-C3iZRT261..PRM..CBU201606-202009

BLACKISH AGEHA GF.,221

main69210-20420-D0iNZT260,ZRT26#..PRM..CBU200705-201004

BLACKISH RED MC.,3R0

main69210-20420-D1iNZT260,ZRT26#..PRM..CBU200705-200808

RED M.M.,3R3

main69210-20420-D2iNZT260,ZRT260,265..PRM..CBU201606

DK.RED M.M.,3T0

main69210-20420-E1iNZT260,ZRT260,265..PRM..CBU201606

DARK SHERRY M.M.,4W4

main69210-20420-H1iNZT260,ZRT260,265..PRM..CBU201606

FROSTY GREEN MC.,781

main69210-20420-H2iNZT260,ZRT26#..PRM..CBU201212-201606

CLEAR STREAM ME.,787

main69210-20420-J0iNZT260,ZRT26#..PRM..CBU200705-201004

LT.BLUE M.M.,8S7

main69210-20420-J1iNZT260,ZRT26#..PRM..CBU201004-201212

DK.BLUE MC.,8S6

main69210-20420-J2iNZT260,ZRT26#..PRM..CBU201212-201606

ABYSS GRAY ME.,8V1

main69211-28070-A0iNZT260,ZRT260,265..ALN..CBU201606

SUPER WHITE 2,040

main69211-28070-A3iNZT260,ZRT260,265..ALN..CBU201606

WHITE PEARL CS.,070

main69211-28070-C0iNZT260,ZRT26#..ALN..CBU200705-201004

BLACK MC.,209

main69211-28070-C1iNZT260,ZRT26#..ALN..CBU201110-201606

BLACK,202

main69211-28070-C3iNZT260,ZRT260,265..ALN..CBU201606

ATTITUDE BLACK MC.,218

main69211-28070-C4iNZT260,ZRT260,265..ALN..CBU201606

BLACKISH AGEHA GF.,221

main69211-28070-H1iNZT260,ZRT26#..ALN..CBU200705-200808

TURQUOISE M.M.,776

main69211-28070-H2iZRT261..ALN..CBU201606-202009

FROSTY GREEN MC.,781

main69211-28070-H3iNZT260,ZRT26#..ALN..CBU201212-201606

CLEAR STREAM ME.,787

main69211-28070-L0iNZT260,ZRT26#..ALN..CBU201004-201110

BEIGE ME.,4T8

main69211-28070-L3iNZT260,ZRT260,265..ALN..CBU201606

DARK SHERRY M.M.,4W4

main69211-28070-P2iNZT260,ZRT26#..ALN..CBU201004-201606

SILVER ME.,1F7

main69211-28070-P4iNZT260,ZRT260,265..ALN..CBU200808-201004

GRAY ME.,1G3

main69211-28070-R9iNZT260,ZRT26#..ALN..CBU201004-201212

DK.BLUE MC.,8S6

main69211-28070-V4iNZT260,ZRT26#..ALN..CBU200705-201004

LT.BLUE M.M.,8S7

main69211-28070-X1iNZT260,ZRT26#..ALN..CBU200705-200808

RED M.M.,3R3

main69211-28070-X2iNZT260,ZRT26#..ALN..CBU; NZT260,ZRT260,265..PRM..CBU200808-201004

main69211-28070-X5iZRT261..ALN..CBU201606-202009

DK.RED M.M.,3T0

main69211-28070-P7iNZT260,ZRT260,265..PRM..CBU200910-201004

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-28060×2iNZT260,ZRT26#..CBU200705-201004

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-60030×2iNZT260,ZRT26#..CBU200705-201004

69247APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, RH

main69247-20030iNZT260,ZRT26#..CBU200705-201004

69248APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, LH

main69248-20040iNZT260,ZRT26#..CBU201004-201606

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-20020-A1iZRT261..CBU201606-202009

FLAXEN,TRIM0#,20

main69283-20020-A2iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main69283-20020-B0iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main69283-20020-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM20

main69283-20020-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main69283-20020-E3iNZT260,ZRT26#..CBU201212-201606

ORCHID BROWN,TRIM1#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-20010-A1iNZT260,ZRT260,265..CBU201606

FLAXEN,TRIM0#,20

main69284-20010-A2iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main69284-20010-B0iNZT260,ZRT26#..CBU201004-201212

DK.GRAY,TRIM1#

main69284-20010-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM20

main69284-20010-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main69284-20010-E3iNZT260,ZRT26#..CBU201212-201606

ORCHID BROWN,TRIM1#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iNZT260,ZRT26#..CBU200705-201004

69330LOCK ASSY, REAR DOOR, RH

main69050-33120supersedes 69050-42021iNZT260,ZRT260,265..CBU; ZRT261..CBU201409-201606

main69050-42021iZRT261..CBU201004-201409

69340LOCK ASSY, REAR DOOR, LH

main69060-33120supersedes 69060-42021iZRT261..CBU201606-202009

main69060-42021iNZT260,ZRT26#..CBU200705-201004

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010×2iNZT260,ZRT26#..CBU201004-201606

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-20080iZRT261..CBU201606-202009

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-20080iNZT260,ZRT26#..CBU201004-201606

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040×2iNZT260,ZRT26#..CBU200705-201004

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-20130iNZT260,ZRT26#..CBU201004-201606

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-20130iZRT261..CBU201606-202009

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9017905118

main90179-05118

9018905003

main90189-05003

31 parts on this diagram · 1 diagram in section
