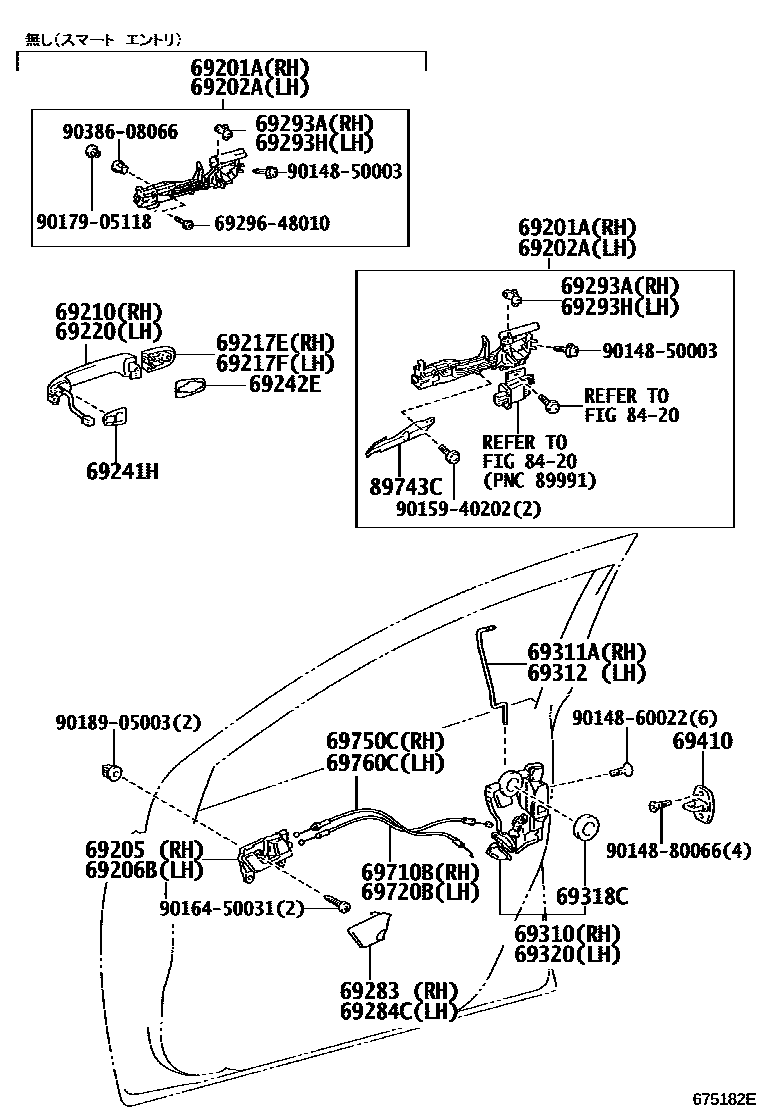

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM4#
FLAXEN,TRIM00
DK.GRAY,TRIM1#
BLACK,TRIM00,2#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM4#
FLAXEN,TRIM00
DK.GRAY,TRIM1#
BLACK,TRIM00,2#
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G2
BLACK MC.,209
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
RED M.M.,3R3
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
LT.BLUE M.M.,8S7
DK.BLUE MC.,8S6
ABYSS GRAY ME.,8V1
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G2
BLACK MC.,209
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
ABYSS GRAY ME.,8V1
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACK MC.,209
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
BEIGE ME.,4T8
TURQUOISE M.M.,776
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
DARK SHERRY M.M.,4W4
LT.BLUE M.M.,8S7
SUPER WHITE 2,040
WHITE PEARL CS.,070
BLACK MC.,209
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
SILVER ME.,1F7
GRAY ME.,1G3
DK.BLUE MC.,8S6
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
BLACK MC.,209
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
TURQUOISE M.M.,776
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
SILVER ME.,1F7
GRAY ME.,1G3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
RED M.M.,3R3
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
BLACK MC.,209
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
RED M.M.,3R3
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
LT.BLUE ME.,8S7
GRAY ME.,1G2
ABYSS GRAY ME.,8V1
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
BLACK,202
BLACK MC.,209
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
TURQUOISE M.M.,776
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
SILVER ME.,1F7
GRAY ME.,1G3
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
RED M.M.,3R3
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
BLACK MC.,209
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
RED M.M.,3R3
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
LT.BLUE ME.,8S7
GRAY ME.,1G2
ABYSS GRAY ME.,8V1
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G2
BLACK MC.,209
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
RED M.M.,3R3
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
LT.BLUE M.M.,8S7
DK.BLUE MC.,8S6
ABYSS GRAY ME.,8V1
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G2
BLACK MC.,209
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
DARK SHERRY M.M.,4W4
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
ABYSS GRAY ME.,8V1
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACK MC.,209
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
BEIGE ME.,4T8
TURQUOISE M.M.,776
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
DARK SHERRY M.M.,4W4
LT.BLUE M.M.,8S7
SUPER WHITE 2,040
WHITE PEARL CS.,070
BLACK MC.,209
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
FROSTY GREEN MC.,781
CLEAR STREAM ME.,787
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
SILVER ME.,1F7
GRAY ME.,1G3
DK.BLUE MC.,8S6
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
FLAXEN,TRIM0#,20
IVORY,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM20
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
FLAXEN,TRIM0#,20
IVORY,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM20
GREGE,TRIM4#
ORCHID BROWN,TRIM1#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
9017905118
main90179-05118
9018905003
main90189-05003
9038608066
main90386-08066
35 parts on this diagram · 1 diagram in section
