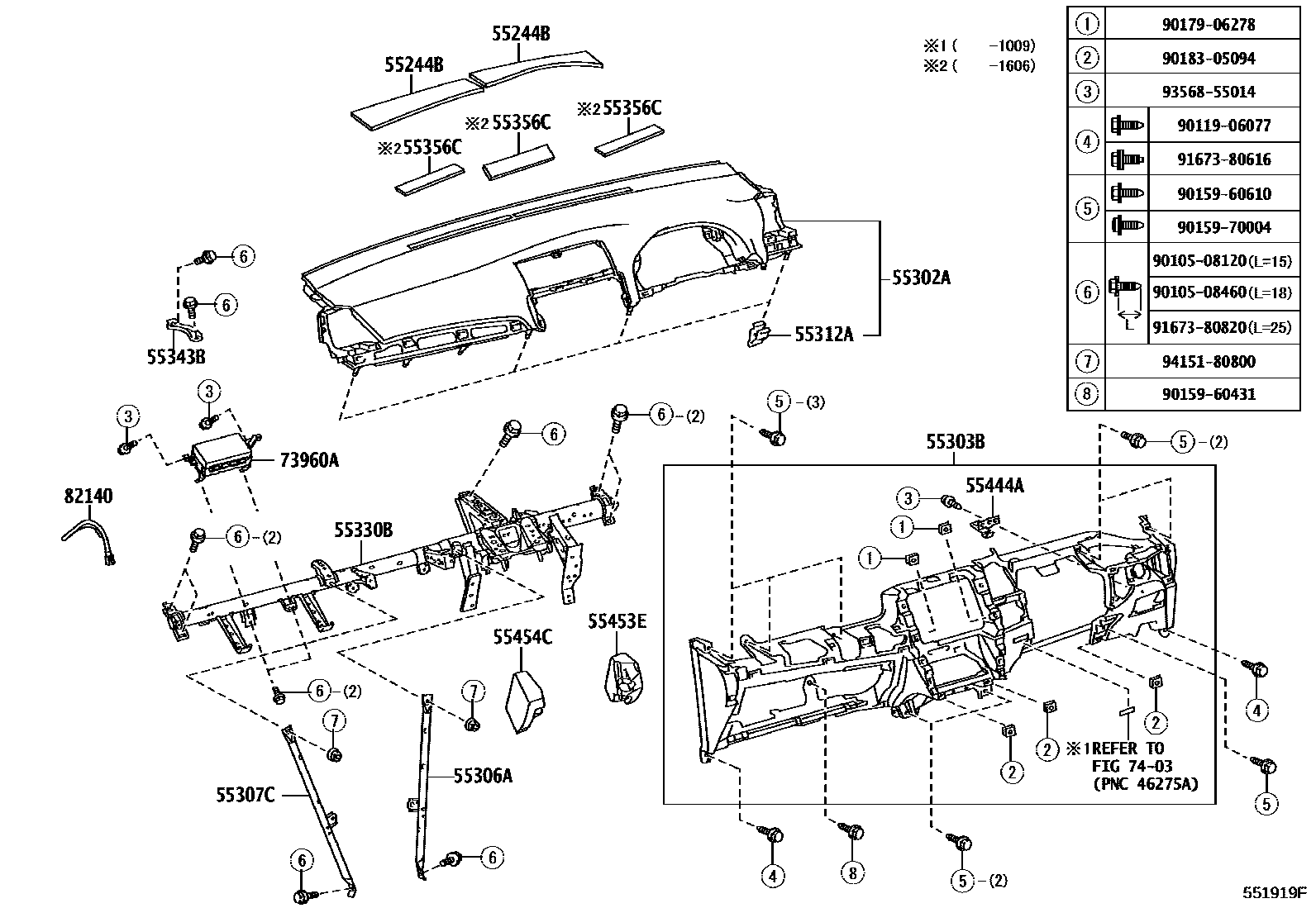

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1��������� 0004 1����� 0005 1����� 0006 1���������� 0007 1����������

55244BSILENCER, FRONT PANEL SIDE, NO.2

main55244-20020×2iNZT260,ZRT260,265..CBU201606

main55244-63010×2iNZT260,ZRT26#..CBU200705-201004

main55244-63011×2iZRT261..PRM..CBU201004-201606

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-20080-B0iZRT261..ALN..CBU;NZT260,ZRT260,265..CBU200705-201004

DK.GRAY,TRIM1#

main55302-20080-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM0#,2#

main55302-20080-E0iNZT260,ZRT26#..CBU201004-201212

ASH BROWN,TRIM40

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-20130-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main55303-20130-B0iNZT260,ZRT26#..CBU201004-201212

DK.GRAY,TRIM1#

main55303-20130-C0iNZT260,ZRT26#..CBU201606-201912

BLACK,TRIM0#,2#

main55303-20130-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

main55303-20130-E1iNZT260,ZRT26#..CBU201212-201606

ORCHID BROWN,TRIM1#

main55303-20131-C0iNZT260,ZRT260,265..CBU201912-202010

BLACK,TRIM0#,2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20340iNZT260,ZRT260,265..CBU201606

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20220iNZT260,ZRT260,265..CBU201606

main55307-20230iZRT261..PRM..CBU201004-201212

55312ACLIP, INSTRUMENT PANEL

main90467-10203×4iZRT261..CBU201606-202009

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-20360iNZT260,ZRT26#..CBU201004-201606

main55330-20370iZRT261..CBU201606-202009

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-20080iNZT260,ZRT26#..CBU200705-201004

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-20060×3iNZT260,ZRT26#..CBU200705-200906

main55356-20061×3iZRT261..PRM..CBU200808-200905

55444ASPRING, INSTRUMENT PANEL BOX

main55444-20100iNZT260,ZRT26#..CBU200705-201004

55453EPAD, INSTRUMENT, LOWER RH

main55453-20100iNZT260,ZRT26#..CBU201004-201606

55454CPAD, INSTRUMENT, LOWER LH

main55454-20060iNZT260,ZRT26#..CBU200705-201004

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-20030iNZT260,ZRT26#..CBU200705-201004

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52020iNZT260,ZRT26#..CBU200705-201004

9010508120

main90105-08120

9010508460

main90105-08460

9011906077

main90119-06077

9015960431

main90159-60431

9015960610

main90159-60610

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9167380616

main91673-80616

9167380820

main91673-80820

9356855014

main93568-55014

9415180800

main94151-80800

27 parts on this diagram · 7 diagrams in section
