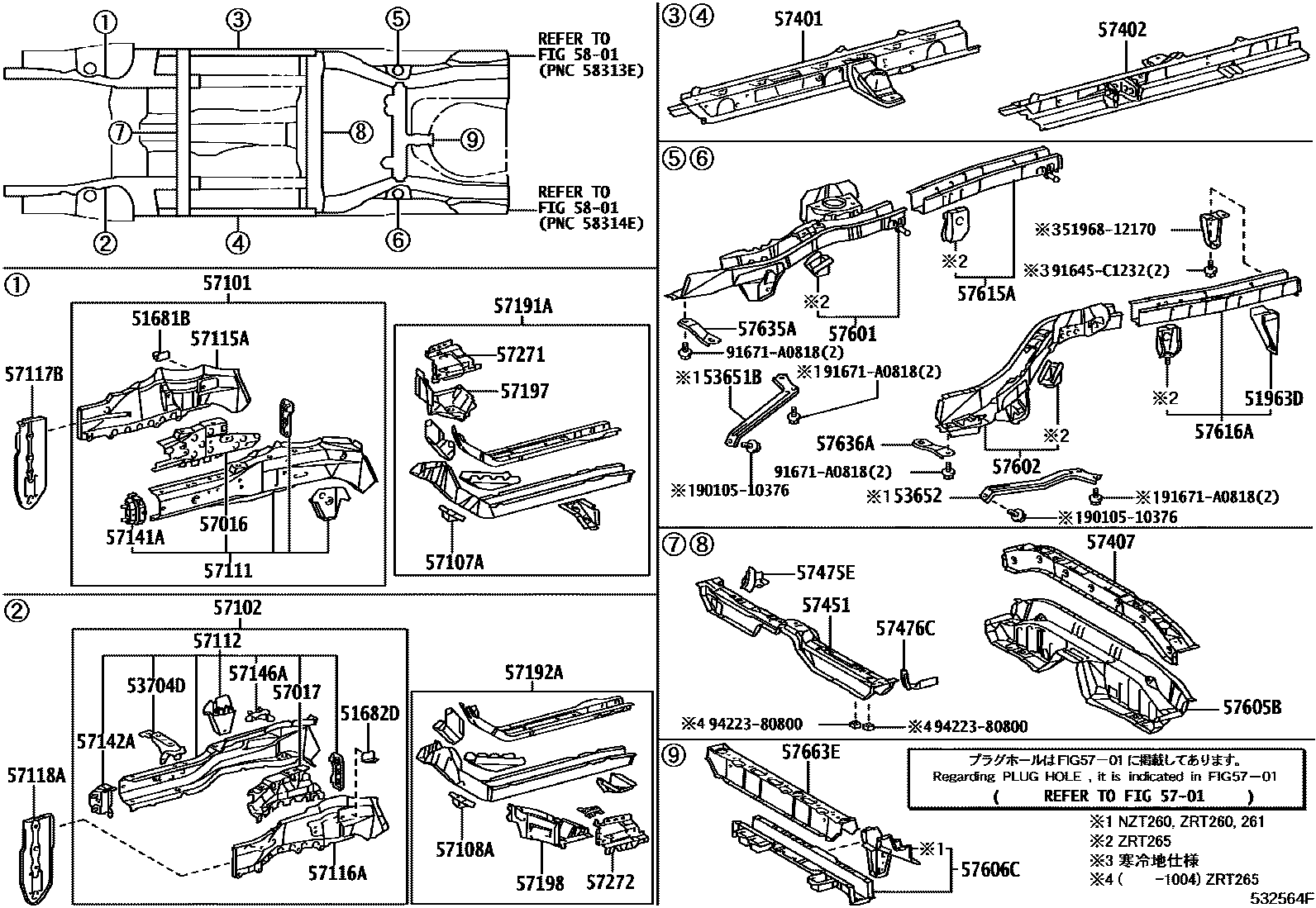

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050i201004-201606

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040i200705-201004

51963DHOOK, TRANSPORT, REAR LH

main51968-32030i200705-201004

53651BBRACE, REAR SUSPENSION, UPPER RH

main53651-20020i200705-201004

53652BRACE, REAR SUSPENSION, UPPER LH

main53652-20010i200705-201004

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53771-63011i200705-201004

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-20060i200705-201004

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12050i200705-201004

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-2B908i200705-201004

main57101-2B909i201411-201606

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-21906i200705-201004

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-32060i200705-201004

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-32060i200705-201004

57111MEMBER, FRONT SIDE, RH

main57111-21906i200705-201004

main57111-21908i201411-201606

57112MEMBER, FRONT SIDE, LH

main57112-21905i200705-201004

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-32900i200705-201004

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20250i200705-201004

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-63010i200705-201004

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-63010i200705-201004

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-63010i200705-201004

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-63010i200705-201004

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020i200705-201004

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57033-20900i200705-201004

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57034-20900i200705-201004

57197BOX, TORQUE, FRONT RH

main57197-20102i201606-202009

57198BOX, TORQUE, FRONT LH

main57198-20112i201004-201606

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20070i200705-201004

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20070i200705-201004

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-21050i200705-201004

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-21050i200705-201004

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-21040i201606

57451MEMBER, FRONT FLOOR CROSS

main57408-63011i201004-201606

main57451-20180i200705-200910

main57451-20181i201606

57475EPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-20070i201606

57476CPLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-20070i200705-201004

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20907i200705-201004

main57601-20910i201606

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20912i200705-201004

main57602-20913i200705-201004

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-21040i201606

main57605-21050i201004-201606

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20240i200705-201004

main57606-20250i201606

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-32917i201606-202009

main57615-32918i200705-201004

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-32924i201004-201606

main57616-32926i201004-201606

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-63010i201004-201606

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57636-63010i200705-201004

57663EMEMBER, REAR FLOOR CROSS, CENTER

main57663-63010i200705-201004

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

5196812170SPACER, HOOK

main51968-12170

9010510376

main90105-10376

91645C1232

main91645-C1232

91671A0818

main91671-A0818

9422380800

main94223-80800
