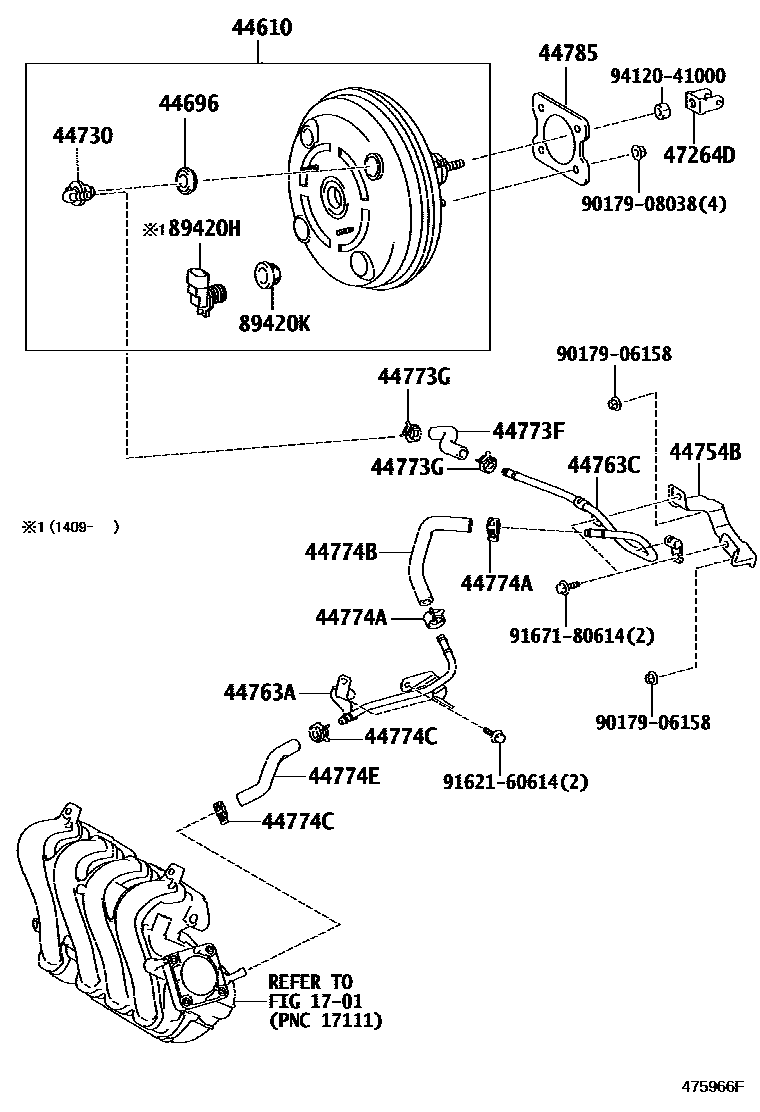

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-20A00iNZT260..CBU; ZRT260,265..CBU200705-200802

main44610-20A01supersedes 44610-20A60iZRT260,265..CBU200803-201004

main44610-20A11iZRT26#..CBU201004-201212

main44610-20A21iZRT26#..CBU201409-201606

main44610-20A50iZRT26#..CBU201212-201409

main44610-20A60iNZT260..CBU201409-201606

main44610-20A20supersedes 44610-20A21iZRT261..CBU200712-200802

main44610-20A40supersedes 44610-20A30iNZT260..CBU201212-201409

44696GROMMET, CHECK VALVE

main90480-24439iNZT260,ZRT26#..CBU201004-201606

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iNZT260,ZRT260,265..CBU200705-201004

main44730-14050iZRT261..CBU200712-200806

main44730-20170iZRT26#..CBU201004-201606

44754BBRACKET, VACUUM TUBE

main44754-12040iNZT260,ZRT26#..CBU200705-201004

44763ATUBE, HOSE TO HOSE, NO.1

main44763-52030iNZT260..CBU200705-201004

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12460iZRT26#..CBU201004-201212

main44763-68020iZRT260,265..CBU201606

44773FHOSE, UNION TO CHECK VALVE

main44773-12820iNZT260,ZRT260,265..CBU201606

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iZRT260,265..CBU201606

main96133-41500×2iNZT260..CBU201606

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iNZT260..CBU201606

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-12640iNZT260..CBU201606

main44774-12650iZRT26#..CBU201004-201212

main44774-68020iZRT261..CBU201606-202009

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iZRT260,265..CBU201606

main96133-41500iZRT261..CBU201606-202009

main96136-41801×2iNZT260..CBU201502-201606

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-28320iZRT261..CBU200712-201004

main44774-52070iNZT260..CBU200705-201004

44785GASKET, BRAKE BOOSTER

main44785-12040iNZT260,ZRT26#..CBU200705-201004

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iNZT260,ZRT26#..CBU200705-201004

main47264-68010iNZT260,ZRT260,265..CBU201606

89420HSENSOR ASSY, VACUUM

main89421-52020iNZT260..CBU201409-201606

89420KGROMMET, VACUUM SENSOR

main90480-24439iNZT260..CBU201409-201606

9017906158

main90179-06158

9017908038

main90179-08038

9162160614

main91621-60614

9167180614

main91671-80614

9412041000

main94120-41000

22 parts on this diagram · 4 diagrams in section
